Summary of Contents for Proluxe Apex Pro X2M

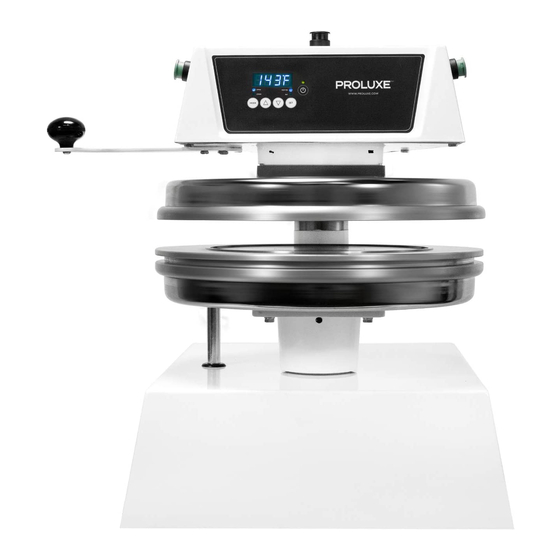

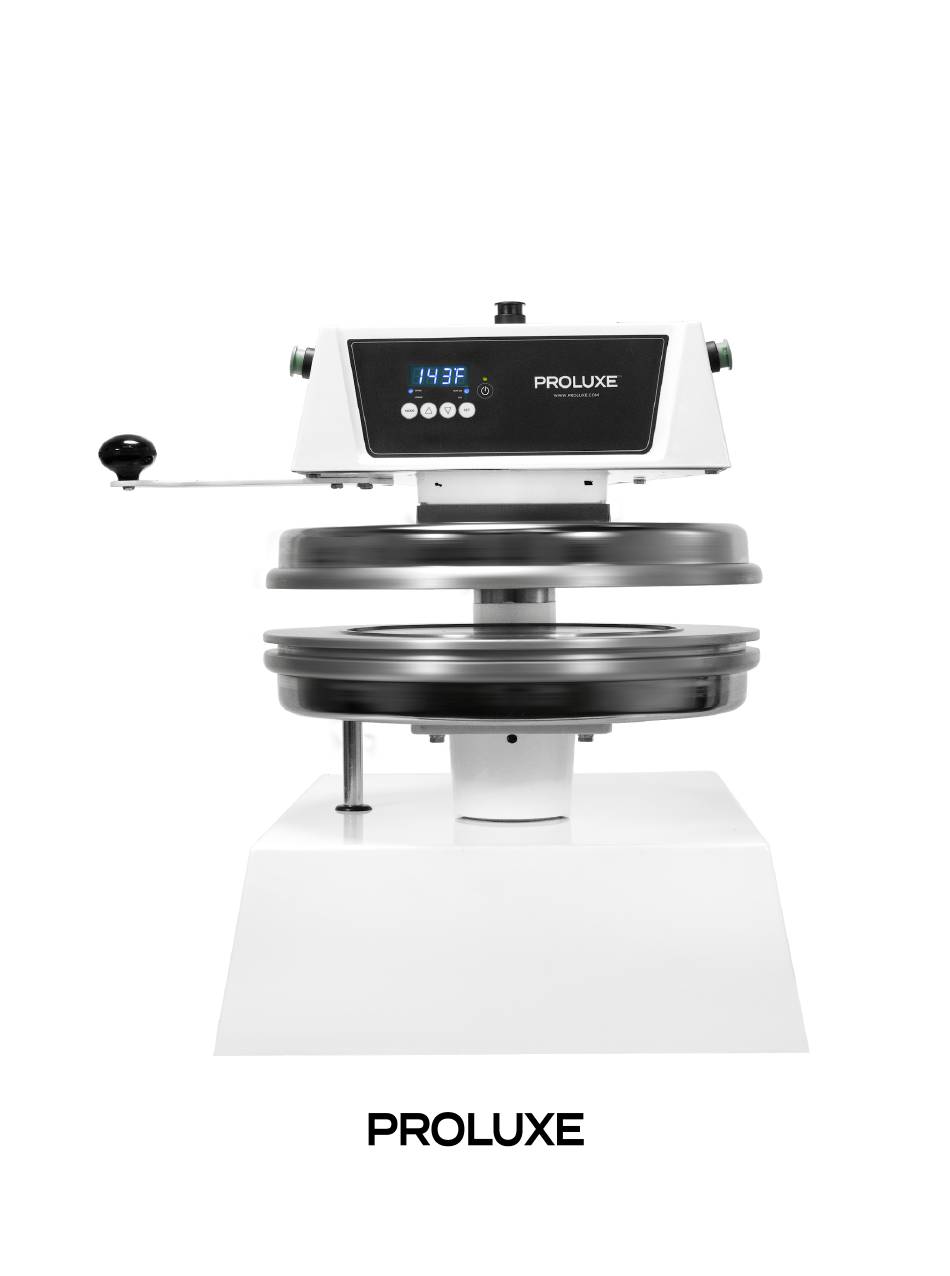

- Page 1 Operations Manual Apex Pro X2M - Hydraulic Dough Press with Interchangeable Molds Model #: DP2350M WWW.PROLUXE.COM Version: 103020...
- Page 2 Congratulations on your selection of within reach of the cord and plug attached to the press. the Apex Pro X2M Automatic Dough Press. Proluxe is a leading Make sure there is a proper electrical wall ...
-
Page 3: Protective Earth Terminal
S P E C I F I C A T I O N S Electrical: Risk of Electrical Shock 208V/50-60Hz/4600W/22.11 Amps Risque de choc électrique Requires 30 AMP outlet Also available; specify when ordering: ● Voltage: 208/220 ●... - Page 4 attempt to repair or replace the power cord. When servicing or cleaning the machine, Please contact the manufacturer or the local make sure that the power cord is removed distributor. from the wall socket. During normal operation, the base of the Avertissement ...
-
Page 5: Controller Operation
O P E R A T I O N T E M P E R A T U R E Press and hold SET button while pressing the UP (↑) and DOWN (↓) arrow buttons to & T I M E R C O N T R O L desired temperature setting. ... - Page 6 factory preset for six (6) seconds. Instructions to change the timer is found Pressing Dough: above under Controller Operations.) For best results, your dough should be proofed before pressing, but it will also press 9. Remove the finished product by rotating directly out of your refrigerator.
-
Page 7: Service Problems
M A I N T E N A N C E Contact our factory at (800) 624-6717 (U.S. only) or approved service agency. When Proluxe machines are relatively maintenance contacting the factory for information, parts free. For a long lifespan, the following or service instructions, please provide the ... - Page 8 EXPLOSION VIEW DP2350M (ML/MR) 10/30/20 4X 32 2X 121 4X 105 EXPDP2350M (ML/MR) RH 103020 CUSTOMER MANUAL...
- Page 9 110 2X 2X 114 2X 114 EXPDP2350M (ML/MR) RH 103020 CUSTOMER MANUAL...
- Page 10 PROLUXE PARTS LIST FOR DP2350M (ML/MR) DP2350ME DP2350MCEC ITEM # DESCRIPTION QTY. 208 ~ AC 220 ~ AC BASE AND POST WELDING ASSEMBLY WITHOUT KEYWAY, DP2350M DP2080501 DP2080501 PISTON GUIDE WELDING ASSEMBLY WITHOUT KEYWAY, DP2350/DP2350M DP20807 DP20807 CYLINDER, HYDRAULIC - 40 MM BORE x 1.687 STROKE...
- Page 11 PROLUXE PARTS LIST FOR DP2350M (ML/MR) DP2350ME DP2350MCEC ITEM # DESCRIPTION QTY. 208 ~ AC 220 ~ AC BOLT, HEX 1/4-20 X 5/8" ZINC PLATED BH142058 BH142058 HYDRAULIC MOTOR HOSES DP13141 DP13141 SCREW BUTTON HEAD 3/8-16 X 1/2 SB381612 SB381612 HIGH TEMP.
- Page 12 PROLUXE PARTS LIST FOR DP2350M (ML/MR) DP2350ME DP2350MCEC ITEM # DESCRIPTION QTY. 208 ~ AC 220 ~ AC RAIL LOCK DP13122 DP13122 8-32 X 1/4" PHIL. HD 100 DEG., SCREW STAINLESS STEEL SF83214S SF83214S PROXIMITY SWITCH HOLE PLUG, (.875" , KOS LT 1/2 LD)
-
Page 14: Warranty And Return Policy
Proluxe warrants all products manufactured In no event shall Proluxe be liable for by it against defects in workmanship or consequential damages arising out of the materials from the date of purchase for a ... - Page 15 5. F reight/Routing : Method of shipment will be determined by Proluxe unless otherwise advised by purchaser. 6. Damaged Claims : All merchandise shipped at purchaser’s risk. Inspection must be made ...
