Installation and Service Instructions
The Economite Model DS45B direct spark ignition conversion burner is adaptable to most gas utilization equipment, including
gravity and forced circulation furnaces and boilers, and is particularly recommended for horizontal and downdraft gas utilization
equipment since it needs no draft to maintain a pilot. Power burner design makes it perfectly suited for oil burner replacement.
In the United States,installation must conform with local
codes or, in the absence of local codes, with Installation
of Domestic Gas Conversion Burners, ANSI Z21.8a-
latest edition and National Fuel Gas Code, ANSI
Z223.1-latest edition(s) available from American
National Standard Institute. Further reference should be
made to the recommendation of your fuel supplier.
Note: Any additions, changes or conversions required in
order for the gas utilization equipment to satisfactorily
meet the application needs must be made by a MIDCO
distributor (or other qualified agency) using factory
specified and approved parts.
In Canada, installation must conform with local codes or,in
the absence of local codes, with Installation Codes
for Gas Burning Appliances and Equipment, CGA
Standard CAN/CGA 1-B149.1 or 2. When the
conversion burner is used on Forced Air Central
Furnace, the two yellow and black warning labels in the
literature envelope shall be attached in accordance with
Installation Code, CGA Standard CAN/CGA 1-B149,
Clause 5.4.4.4. Further reference should be made to the
recommendation of your fuel supplier.
INSTALLER: Inform and demonstrate to the user the
correct operation and maintenance of this gas utiliza-
tion equipment. Inform the userof the hazards of stor-
ing flammable liquids and vapors in the vicinity of this
gas utilization equipment and remove such hazards.
Affix this manual adjacent to the conversion burner.
CODE COMPLIANCE IS THE SOLE RESPONSIBILITY
OF THE INSTALLER.
USER: Retain this manual for future reference. If other than routine service or maintenance as
described in this manual is required, contact a qualified service agency. DO NOT ATTEMPT REPAIRS.
An inadvertent service error could result in a dangerous condition.
SAFETY INFORMATION
tions and have standard meanings throughout this manual. When you see the safety alert symbol and one of the safety
information terms as shown below, be aware of the hazard potential.
DANGER: Identifies the most serious hazards which will result in severe personal injury or death.
WARNING: Signifies a hazard that could result in personal injury or death.
CAUTION: Identifies unsafe practices which would result in minor personal injury or product and property damage.
Midco International Inc.
4140 West Victoria Street Chicago, Illinois 60646
tel 773.604.8700
fax 773.604.4070
web www.midco-intl.com
TERMS: The following terms are used to identify hazards, safety precautions or special nota-
Qu al it y D e si gne d for Prov e n P e r for m a nc e
e-mail sales@midco-intl.com

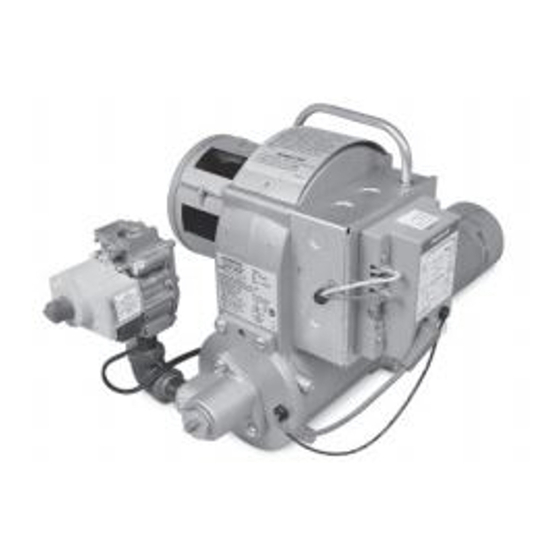

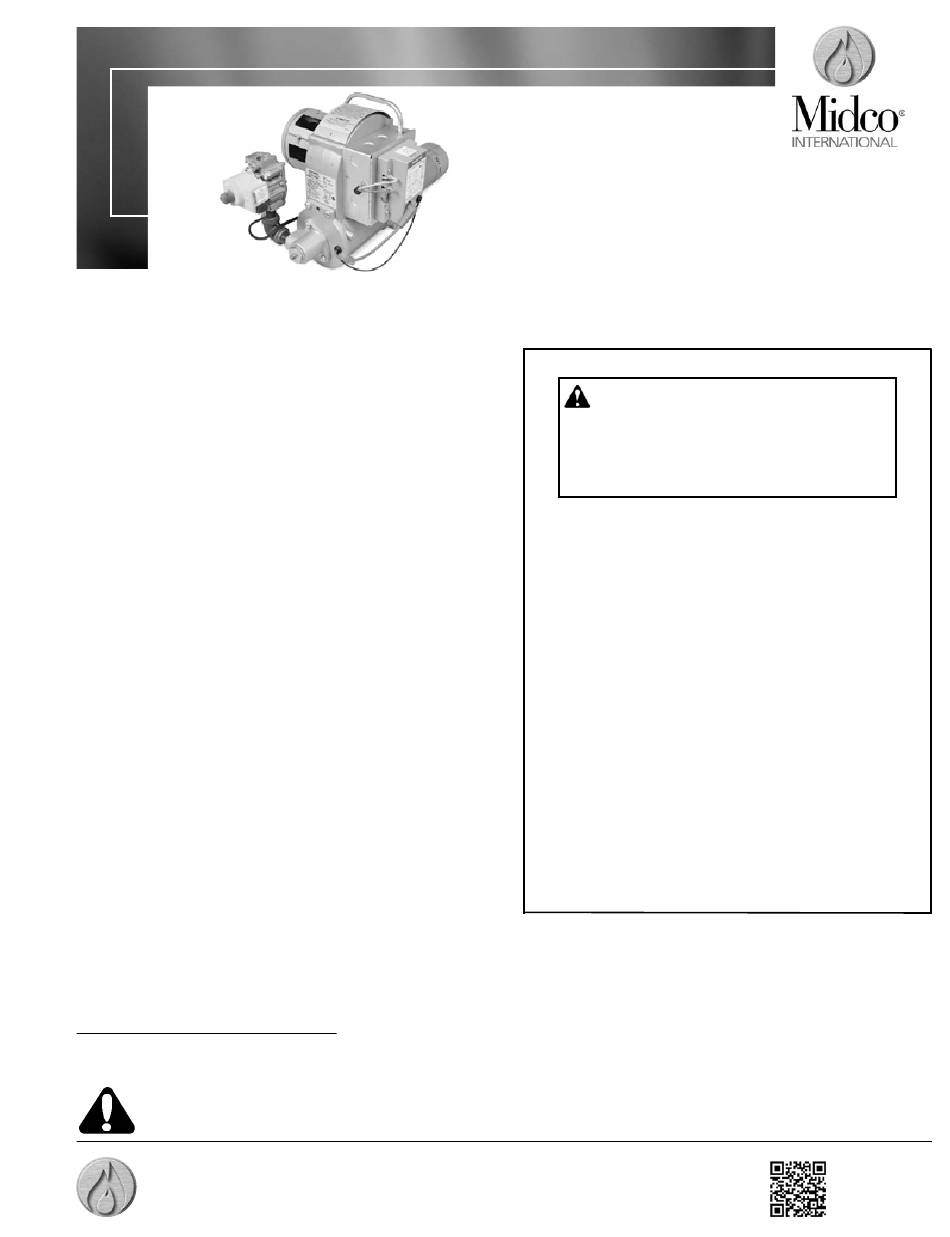

Economite DS45B
Gas Conversion Burner
WARNING: If the information in
these instructions is not fol-
lowed exactly, a fire or explosion
may result, causing property dam-
age, personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appli-
ance.
WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical
switch; do not use any phone in
your building.
•
Immediately call your gas
supplier from a neighbor's
phone. Follow the gas suppliers'
instructions.
•
If you cannot reach your gas
supplier, call the fire department.
Installation and service must be per-
formed by a qualified installer, service
agency or the gas supplier.
1207
8470 72
Printed in USA
