Installation and Service Instructions
MADE
in the
USA
• In the United States, installation must conform with local codes or in
the absence of local codes, with the National Fuel Gas Code, ANSI
Z223.1-latest edition available from American National Standard
Institute. Installation of Domestic Gas Conversion Burners, ANSI
Z21.8a- latest edition and National Fuel Gas Code, ANSI Z223.1-
latest edition(s) available from American National Standard Institute.
Further reference should be made to the recommendation of your
fuel supplier.
• In Canada, installation must conform with local codes or in the
absence of local codes, with Installation Codes for Gas Burning
Appliances and Equipment, CGA Standard CAN/CGA 1-B-149.1
or 2. When the conversion burner is used on a Forced Air Central
Furnace, the two yellow and black warning labels in the literature
envelope shall be attached in accordance with Installation Code,
CGA Standard CAN/CGA 1-B149, Clause 5.4.4.4. Further reference
should be made to the recommendation of your fuel supplier.
•
WARNING: Additions, changes, conversions and service
must be performed by an authorized Midco representative,
service agency or the fuel supplier. Use only MIDCO specifi ed
and approved parts.
• INSTALLER: Inform and demonstrate to the user the correct
operation and maintenance of the gas utilization equipment. Inform
the user of the hazards of storing fl ammable liquids and vapors
in the vicinity of this gas utilization equipment and remove such
hazards. Affi x this manual and associated literature to the burner.
CODE COMPLIANCE IS THE SOLE RESPONSIBILITY OF THE
INSTALLER.
• USER: Retain this manual for future reference. If other than routine
service or maintenance as described in this manual and associated
literature is required, contact a qualifi ed service agency. DO NOT
ATTEMPT REPAIRS. An inadvertent service error could result in a
dangerous condition.
AVOID ERROR IN PARTS SELECTION. When ordering use complete MIDCO
Part Number and Description. Furnish Burner Model Number, Bill of Material
Number and Serial Number (if available) from the specifi cation plate found on the
product.
IMPORTANT: Availability of parts as well as specifi cations are subject to change
without notice. Please consult factory for item availability.
®
Midco
International Inc.
4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0514
tel
773.604.8700
fax
866.580.8700
web
www.midcointernational.com
e-mail sales@midcointernational.com
SAFETY INFORMATION TERMS: The following terms are used to identify hazards, safety precaution of special notations
and have standard meanings throughout this manual. They are printed in all capital letters using a bold type face as shown
below, and preceded by the exclamation mark symbol. When you see the safety alert symbol and one of the safety information
terms as shown below, be aware of the hazard potential.
DANGER:
Identifi es the most serious hazards which will result in severe personal injury or death.
WARNING:
Signifi es a hazard that could result in personal injury or death.
CAUTION:
Identifi es unsafe practices which would result in minor personal injury or product and property
damage.
Quality Designed for Proven Performance

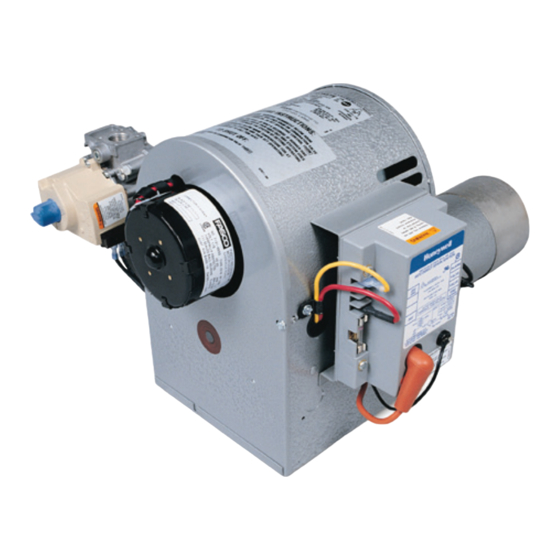

Economite DS24A
Conversion Burners
WARNING: If the information in these instructions
is not followed exactly, a fi re or explosion may result,
causing property damage, personal injury or death.
Do not store or use gasoline or other fl ammable vapors and
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any
phone in your building.
•
Immediately phone your gas supplier from another
building. Follow the gas supplier's instructions. If
you cannot reach your gas supplier call the fi re
department.
Installation and service must be performed by a qualifi ed
installer, service agency or the gas supplier.
BURNER MODEL:
___________________________________
BILL OF MATERIAL
NUMBER:
___________________________________
SERIAL NUMBER #: ___________________________________
WIRING DIAGRAM: ___________________________________
FOR SERVICE CONTACT
Name:
____________________________________________
Address: ____________________________________________
____________________________________________
Phone:
____________________________________________
Date of Installation: ___________________________________
ANSI Z21.17
CONVERSION
BURNERS
516
8470-71
Printed in USA
