RTE25-UHF &

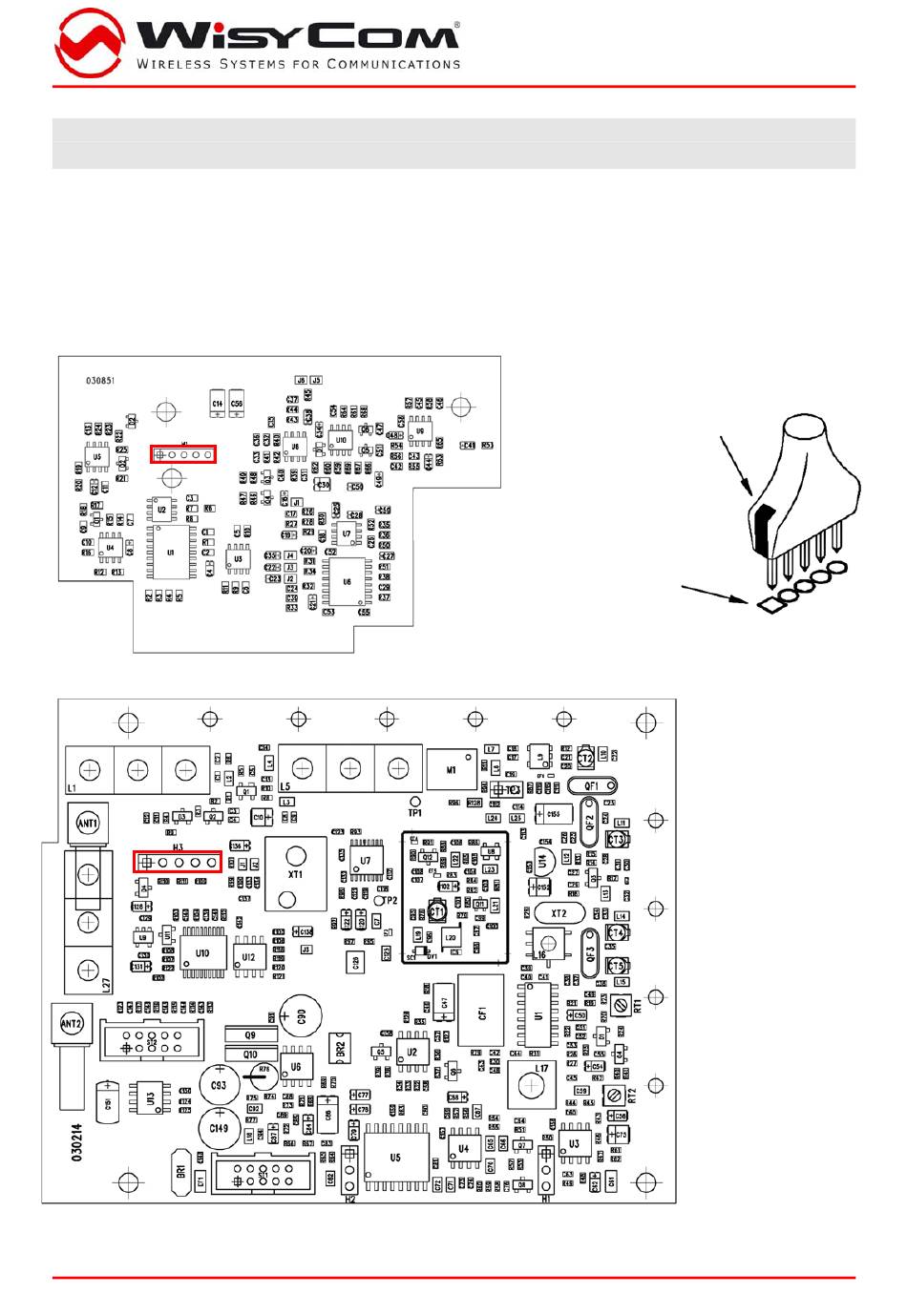

RPU300 UHF – Frequencies programming
(Open device removing screws that retains mechanical body, and operate directly on powered off circuit board).
Do not remove circuit boards from apparatus.
Touch UPK32/UPK100 connector on circuit board's pads to program apparatus' frequencies, avoiding contact with mechanical body.
Verify unobstructed programming pads before insert UPK connector.
WISYCOM S.r.l.
• Via Spin, 156
Tel. +39 0424 382605 •
WIRELESS-MICROPHONE SYSTEMS
• I-36060 Romano d'Ezzelino (VI)
Fax +39 0424 382733 •
TX side
CS 030851
RTE25 &
Reference on the
RPU300 Tx
printed board
• Italy
www.wisycom.com • e-mail: sales@wisycom.com
Reference on the
UPK connector
RX side
CS 030214
