WisyCom CPR30 Manual page 14

RTE25-VHF &
RPU300 VHF – Frequencies programming
(Open device removing screws that retains mechanical body, and operate directly on powered off circuit board).
Do not remove circuit boards from apparatus.

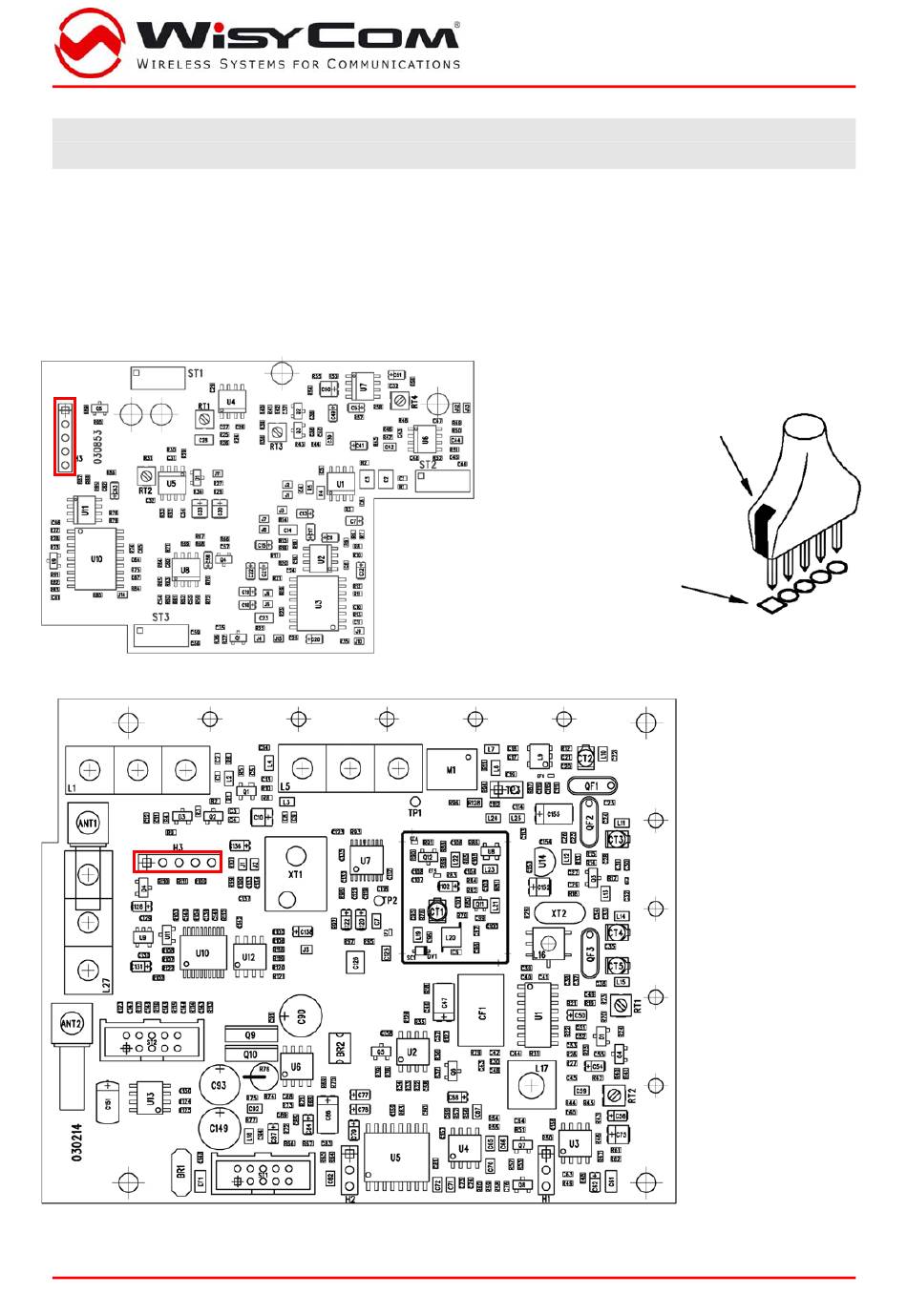

Touch UPK32/UPK100 connector on circuit board's pads to program apparatus' frequencies, avoiding contact with mechanical body.
Verify unobstructed programming pads before insert UPK connector.
