WIRELESS-MICROPHONE SYSTEMS

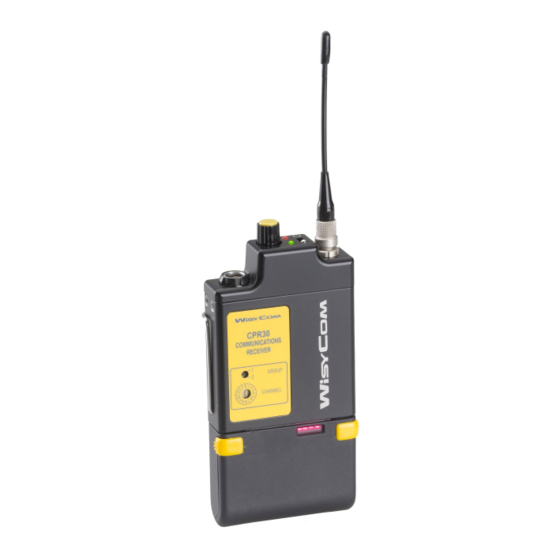

CPR30 – Frequencies programming
Remove CPR30 battery pack: to do it remove "AA" cells and remove two screws near the corners of battery pack. Extract battery pack.

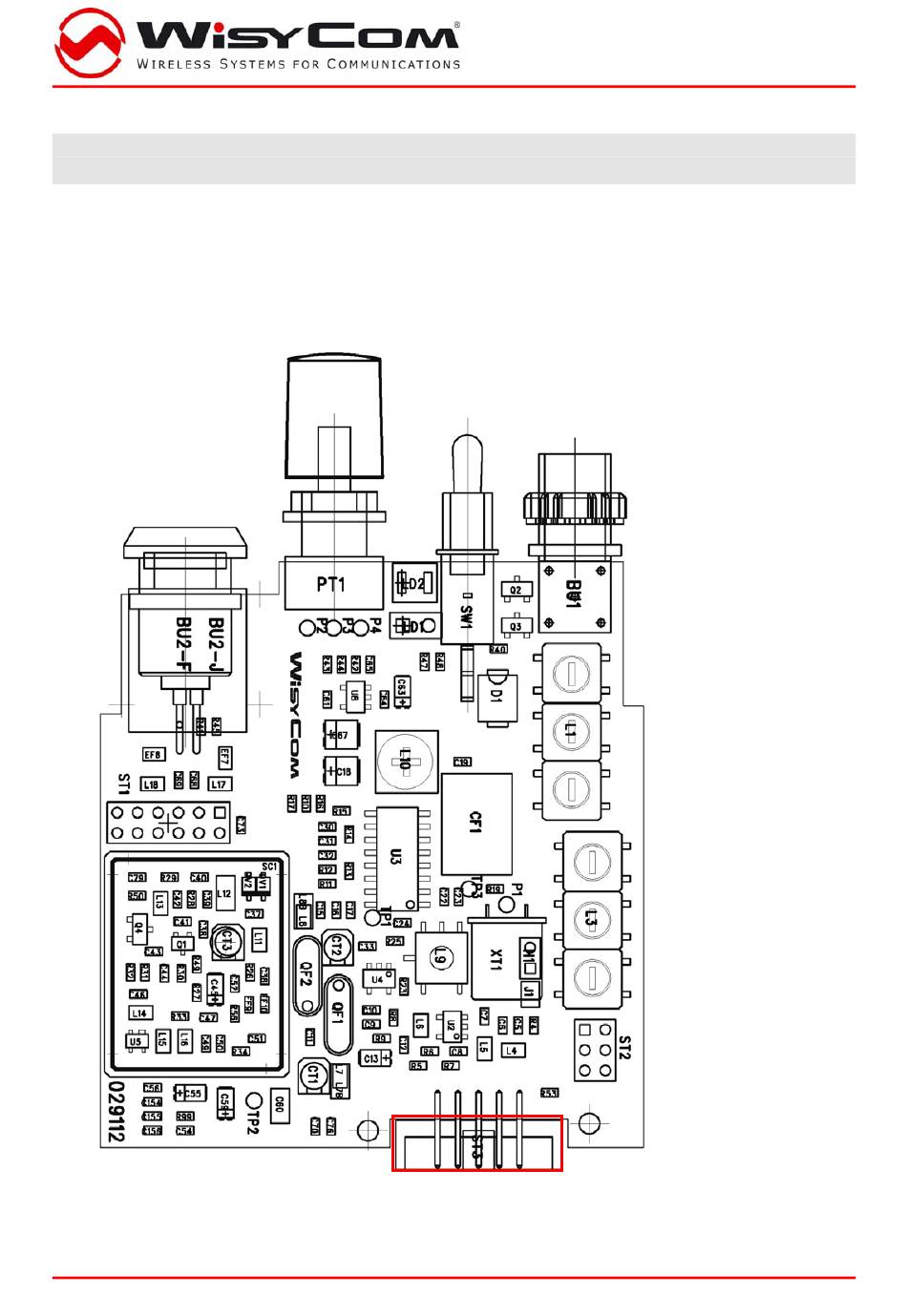

Insert UPK32/100 connector on ST3 (ST3 before used by battery pack).
After a successfully programming, disconnect UPK32/100 and remount CPR30 battery pack.
CPR30-howtoprogramCS029112.doc
WISYCOM S.r.l.
•
Via Spin, 156
•
I-36060 Romano d'Ezzelino (VI)
•
Italy
Tel. +39 0424 382605
•
Fax +39 0424 382733
•
www.wisycom.com
•
e-mail: sales@wisycom.com
Advertisement
Related Manuals for WisyCom CPR30
Summary of Contents for WisyCom CPR30
- Page 1 WIRELESS-MICROPHONE SYSTEMS CPR30 – Frequencies programming Remove CPR30 battery pack: to do it remove “AA” cells and remove two screws near the corners of battery pack. Extract battery pack. Insert UPK32/100 connector on ST3 (ST3 before used by battery pack).
- Page 2 Touch UPK32/UPK100 connector on circuit board’s pads to program apparatus’ frequencies. Verify unobstructed programming pads before insert UPK connector. Reference on the UPK connector Reference on the printed board CRT14-howtoprogramCS012206.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel.
- Page 3 Verify unobstructed programming pads before insert UPK connector. CRT16 CS 016201 Reference on the UPK connector Reference on the printed board CRT16-howtoprogramCS016201.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel. +39 0424 382605 •...
- Page 4 Verify unobstructed programming pads before insert UPK connector. CRT16 CS 016202 Reference on the UPK connector Reference on the printed board CRT16-howtoprogramCS016202.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel. +39 0424 382605 •...
- Page 5 Reference on the printed board CSR50-howtoprogramCS035126.doc • • • Via Spin, 156 I-36060 Romano d’Ezzelino (VI) Italy W I SY C O M S. r . l . • • • Tel. +39 0424 382605 Fax +39 0424 382733 www.wisycom.com e-mail: sales@wisycom.com...
- Page 6 Touch UPK32/UPK100 connector on circuit board’s pads to program apparatus’ frequencies. Verify unobstructed programming pads before insert UPK connector. Reference on the UPK connector Reference on the printed board PCB top view CST36-CST50-howtoprogramCS037113.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel. +39 0424 382605 •...
- Page 7 Touch UPK32/UPK100 connector on circuit board’s pads to program apparatus’ frequencies. Verify unobstructed programming pads before insert UPK connector. Reference on the UPK connector Reference on the printed board CST38-howtoprogramCS038100.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel.
- Page 8 Touch UPK32/UPK100 connector on circuit board’s pads to program apparatus’ frequencies. Verify unobstructed programming pads before insert UPK connector. Reference on the UPK connector Reference on the printed board CST910-howtoprogramCS937111.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel.
- Page 9 Touch UPK32/UPK100 connector on circuit board’s pads to program apparatus’ frequencies. Verify unobstructed programming pads before insert UPK connector. Reference on the UPK connector Reference on the printed board MCR40-howtoprogramCS040202.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel.
- Page 10 Touch UPK32/UPK100 connector on circuit board’s pads to program apparatus’ frequencies. Verify unobstructed programming pads before insert UPK connector. Reference on the UPK connector Reference on the printed board MSR918U-howtoprogramCS914110.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel.
- Page 11 Touch UPK32/UPK100 connector on circuit board’s pads to program apparatus’ frequencies. Verify unobstructed programming pads before insert UPK connector. Reference on the UPK connector Reference on the printed board MSR918V-howtoprogramCS914101.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel.
- Page 12 Touch UPK32/UPK100 connector on circuit board’s pads to program apparatus’ frequencies. Verify unobstructed programming pads before insert UPK connector. Reference on the UPK connector Reference on the printed board MTH200-howtoprogramCS20030x.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel.
- Page 13 Remove MTP22 battery pack: to do it remove “AA” cells and remove two screws near the corners of battery pack. Extract battery pack. Insert UPK32/100 connector on ST5 (ST5 before used by battery pack). After a successfully programming, disconnect UPK32/100 and remount MTP22 battery pack. MTP22-howtoprogramCS020110.doc WISYCOM S.r.l. • Via Spin, 156 •...
- Page 14 TX side CS 030853 RTE25 & Reference on the RPU300 Tx printed board RX side CS 030214 RPU300VU-howtoprogramCS030853-030214.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel. +39 0424 382605 • Fax +39 0424 382733 •...
- Page 15 TX side CS 030851 RTE25 & Reference on the RPU300 Tx printed board RX side CS 030214 RPU300UU-howtoprogramCS030851-030214.doc WISYCOM S.r.l. • Via Spin, 156 • I-36060 Romano d’Ezzelino (VI) • Italy Tel. +39 0424 382605 • Fax +39 0424 382733 •...
