User Manual
PDSync-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDSync-4 and is the answer not in the manual?

Questions and answers

Related Manuals for CAMBRIONIX PDSync-4

Summary of Contents for CAMBRIONIX PDSync-4

  • Page 1 User Manual PDSync-4...

  • Page 2: Table Of Contents

    4.5.Help and Support 5.Charging without connecting to a host computer 6.Using when connected to a host computer 6.1.Charging 6.2.Data Transfer 7.Scalability 8.Manage Ports & Devices using Cambrionix Software 8.1.LiveViewer 8.2.Cambrionix API 8.3.Command Line Instructions (CLI) 9.Certifications PDSync-4 Page 1 of 14...

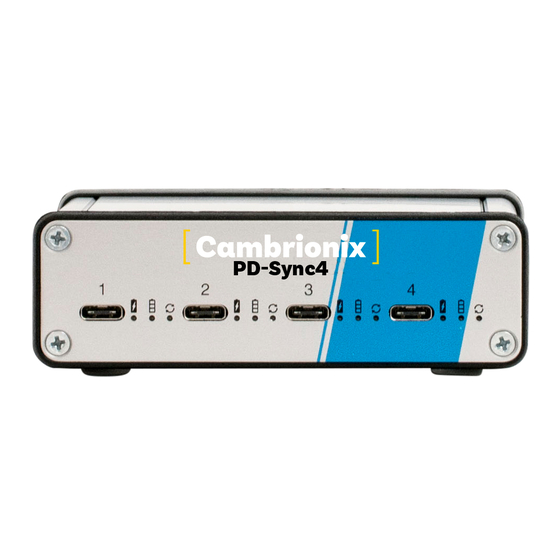

  • Page 3: Your Pdsync-4 At A Glance

    Max per Port). The firmware can be up-dated to allow new charging profiles to be added, ensur- ing the PDSync-4 can charge the latest devices. It is ready to charge out-of-the-box and to sync devices when attached to a host computer.

  • Page 4: Product Specifications

    1x USB 2.0 Type-C + 1 x USB2.0 Type-C Expan- Input Connectors sion port Output Connectors 4 x USB 2.0 Type-C Ambient Operating Temperature range 0-35 Celcius Relative humidity 5% to 95% non-condensing Dimensions 132 x 106 x 34mm Weight 1.6kg PDSync-4 Page 3 of 14...

  • Page 5: Power Supply Specifications

    2.4.Power Supply Specifications Input Voltage 100-250Vdc Input Current 2.5A @ 115Vac Input Frequency 50-60Hz Input Connector Output Voltage Output Current 8.5A Output Power 200W Output Connector 4-pin DIN PDSync-4 Page 4 of 14...

  • Page 6: Safety Guidelines And Precautions

    Do not bend, compress or drill into any part Damage, electric shock or personal injury may of the product occur Parts of Cambrionix products may become hot during operation. Do not obstruct air An increased internal temperature may cause a vents on the product or operate the product...
  • Page 7 The product may become damaged by electric shock product is being used Cambrionix OEM modules are susceptile to Damage to your Cambrionix OEM module may Electrostatic Discharge (ESD). OEM modules occur should be handled in an ESD safe area Cambrionix OEM modules have sharp edges, corners and components.

  • Page 8: Getting Started

    If you are using a version of Microsoft Windows prior to Windows 10 you will need to install Cambrionix CDC drivers for enabling the full functionality of the hub. To install the drivers please detach the hub from the PC before executing the downloaded installer. The installer will prompt you for permission to install drivers signed by Cambrionix, please agree to this.

  • Page 9: Charging Without Connecting To A Host Computer

    Charging at the optimum rate (up to 3A Max per Port) specified by the manufacturer will commence once profiling is complete. Depending on the state of charge of the device attached, this may take tens of seconds. PDSync-4 Page 8 of 14...

  • Page 10: Using When Connected To A Host Computer

    Please note that USB specifications require a minimum 100 mA charge current to be delivered during data transfer. As indicated in above, if the attached device has a BC1.2 compliant CDP port, the device can draw up to 3A Max per Port while transferring data. PDSync-4 Page 9 of 14...

  • Page 11: Scalability

    “host port”. The Host port of the next hub in the daisychain is then connected to any of the first hubs downstream USB ports. More hubs are added in the same way. PDSync-4 Page 10 of 14...

  • Page 12: Manage Ports & Devices Using Cambrionix Software

    Full instructions on LiveViewer are available on our website. 8.2.Cambrionix API Cambrionix API allows you to monitor and control each port in more detail and to integrate these functions into your own workflow processes. The API comprises a daemon that can be downloaded from https://www.cambrionix.com/products/api and installed on the host...

  • Page 13: Command Line Instructions (Cli)

    Python code can be obtained fromhttps://www.cambrionix.com/products/api to help you integrate many of these functions into your process workflow alongside the full User Guide. 8.3.Command Line Instructions (CLI) Command Line Instructions can also be used to control and monitor the functions of the hub and attached devices over a VCP (Virtual COM Port).
  • Page 14 <|> is a list of profile IDs Blank to use all profiles <i> is a single profile ID Optional parameters are shown in [ ] Com- Parameters pulsory in < > Tab key Re-runs previous command Cursor up recalls last command PDSync-4 Page 13 of 14...

  • Page 15: Certifications

    CE Tested and marked China CCC Certification FCC Part 15 Tested and marked Housed within a UL94-VO specification fire enclosure Japanese PSE certification (pending) RoHS Compliant Independently safety tested by the Underwriters Laboratory (UL) under file #E346549 PDSync-4 Page 14 of 14...
  • Page 16 Cambrionix Ltd The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS United Kingdom T +44 (0) 1223 755 520 E enquiries@cambrionix.com W www.cambrionix.com...
