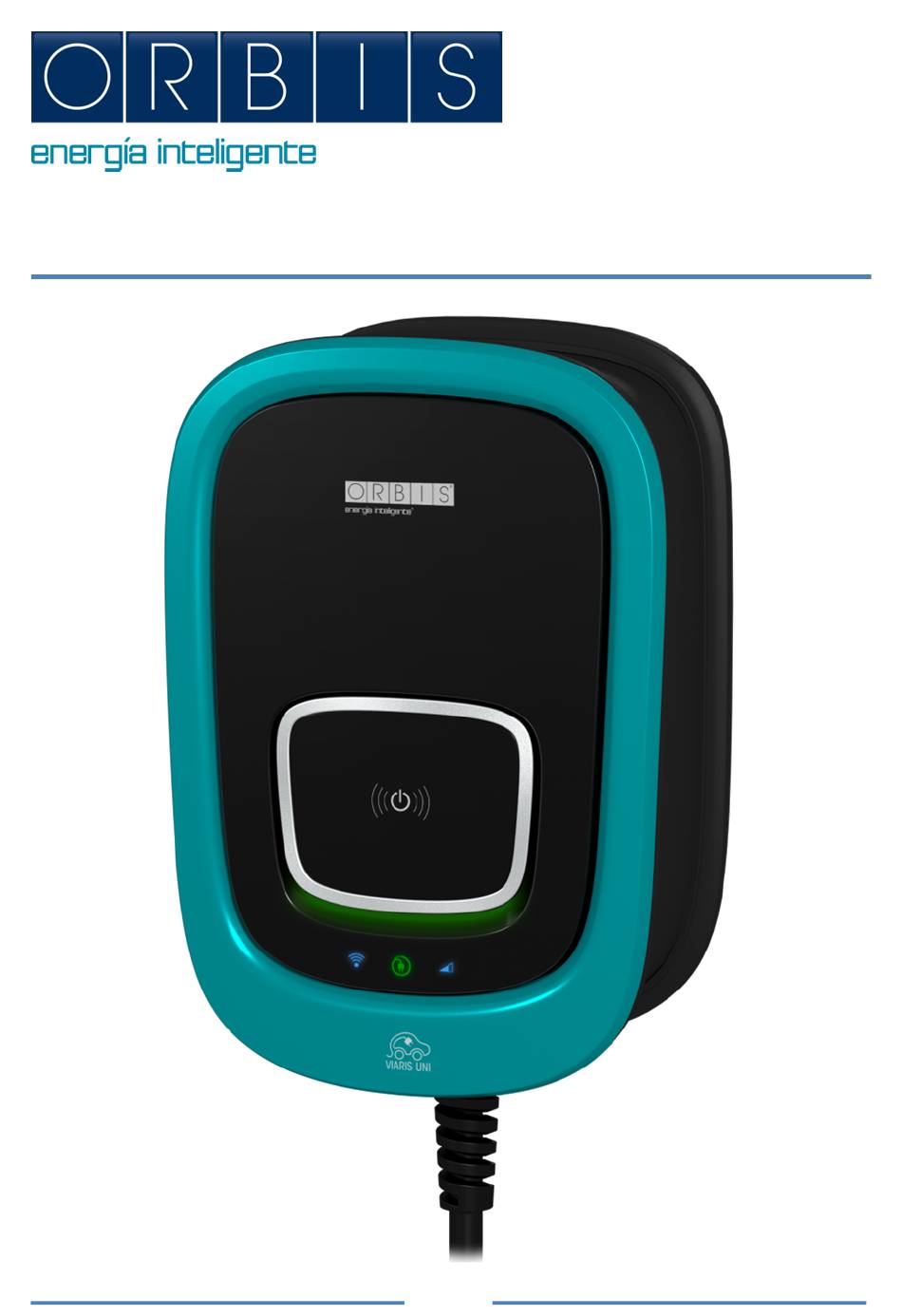

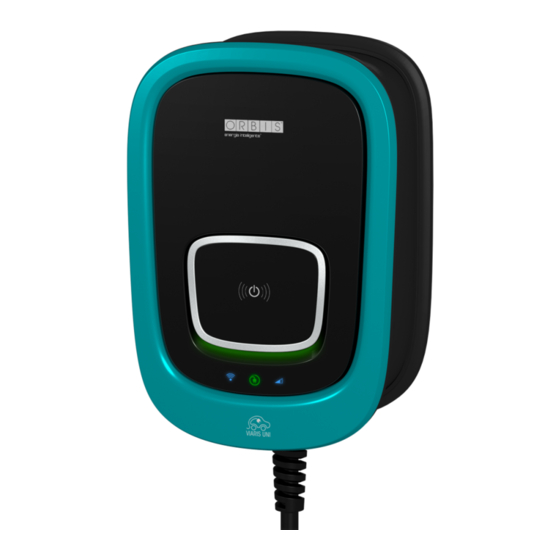

VIARIS UNI
EV SMART CHARGER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Viaris Uni and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orbis Viaris Uni

Summary of Contents for Orbis Viaris Uni

  • Page 1 VIARIS UNI EV SMART CHARGER...

  • Page 2: Table Of Contents

    INDEX DESCRIPTION ..................3  SMART CHARGER INSTALLATION ............5  LUMINOUS INDICATORS ..............16  EV CHARGER STATES ................. 18  CHARGING PROCESS ................21  CONTROL OF THE SMART CHARGER VIA WEB ....... 22  VIARIS APP FOR MANAGEMENT FROM SMARTPHONE ....23  MAINTENANCE ..................26  TECHNICAL CHARACTERISTICS ............

  • Page 3: Description

    The operating status of the charger is always visible through its indicator lights. The VIARIS UNI includes a load modulator that allows the user to adjust the power of the equipment according to the contract in the electrical installation.
  • Page 4 Warning symbols used in this instruction manual: ELECTRICAL HAZARD. There is a risk of electrocution that can cause bodily injury or death if instructions are not followed GENERAL ATTENTION Description of elements Electrical Entrada de connection acometida input Marco Frame Wall mounting Base de...

  • Page 5: Smart Charger Installation

    SMART CHARGER INSTALLATION Safety warnings During the installation and operation of the charger, it is necessary to observe the following instructions:  Equipment must be installed by authorized and qualified personnel who strictly comply with the instructions of this manual. ...
  • Page 6 Wall mounting Remove the wall mounting plate. In order to fix the charger to the wall, four holes for Ø10 mm screw anchors (supplied) must be made, using the wall mounting plate as a template. Then, the wall mounting plate will be screwed in. taladros pared con taco Ø10 mm screw anchors wall para tornillos de Ø10 mm (x4)
  • Page 7 Once the wall mounting plate is fixed, place the charger on and screw it with the four M6 screws supplied. M6 screws (x4) tornillos M6 (x4)
  • Page 8 Schuko output on the equipment have. This connection should be protected with independent protections to the main intake. If your VIARIS UNI does not have as option the additional Schuko output these terminals are not functional, avoid making a connection in them.
  • Page 9 TMC100+ Connect the output of the TMC100 to the plug-in terminal block connector supplied and connect to the VIARIS UNI control circuit. Must be used twisted pair cable with section 0.25-0.5 mm², maximum length 1000 m, with a peeling of 6-7 mm, and torque of 0.2 Nm.
  • Page 10 Respect the indications in the image so that the measurement is correct. Configuration according to the power contracted To configure the rated power of the installation, use the rotating knob on the rear face of the front, or programming by App or embedded web. For app or web programming to take effect, the rotating knob must be in the “NO LIMIT.”...
  • Page 11 If the TMC100 transformer is not installed, the position of the rotating knob must be in the “NO LIMIT” position in order not to limit the load current. Single Three- Current phase phase power power NO LIMIT. NO LIMIT. NO LIMIT. 10 A 2,3 kW 6,928 kW...
  • Page 12 External activation connection There is the possibility to activate the charger using an external signal (e.g. from a home automation system or from a prepaid system). This signal is priority over any other load activation system; therefore if the external activation is activated, charging would start when the vehicle is connected to the charger.
  • Page 13 The VIARIS UNI has a potential-free output of 220 Vac and 5 A of maximum consumption marked OUT, which will activate an air extraction system when...
  • Page 14 Front connection When we have all the connections made, we connect the flat cable in the connector of the front as shown in the image, making sure it is firmly connected by the side tabs of the connector. If you need to remove the front in the future, be careful to disconnect the cable by pressing the side tabs on the connector.
  • Page 15 Closed of the charger We cover the charger with its front and screw it with its screws. To finish the installation we place the frame and give tension to the equipment. Ø4.2 mm screws (x6) tornillos Ø4,2 mm (x6)

  • Page 16: Luminous Indicators

    LUMINOUS INDICATORS Activation zone Status bar “Attention” indicator Modulator Wi-Fi indicator indicator Connection cable indicator...
  • Page 17 Connection cable indicators  Off: free connector, unlocked and available.  Green blinking: ready for insertion.  Fixed green: connection cable connector inserted in vehicle and waiting confirmation of vehicle loading.  Fixed white: in the process of loading. Other indicators Wi-Fi indicator ...

  • Page 18: Ev Charger States

    EV CHARGER STATES By changing illumination color in the status bar, the charger indicates us its different modes of operation:  Rest mode Charger available. No connected vehicle and without loading permission. Status bar illumination in fixed green. Connection cable indicator off. ...
  • Page 19  Mode ready to load Charger connected to the vehicle. Status bar illumination in fixed blue. Fixed green connection cable indicator.  Load mode Charger connected to the vehicle and charging. Status bar illuminate blue with varying intensity. Fixed white connection cable indicator. ...
  • Page 20  Reserved mode When a charger reservation is made through the management platform. Status bar illumination in fixed white.  Mode Updating When a charger update is in progress. Status bar illuminate in white from outside towards the center.  Error mode When a charger malfunction occurs.

  • Page 21: Charging Process

    CHARGING PROCESS VIARIS UNI chargers have the possibility to be configured so that when required to activate the loading permit is done by tactile activation or by activation with an RFID card. When configured to activate through tactile activation, anyone can activate the load.

  • Page 22: Control Of The Smart Charger Via Web

    VIARIS UNI, ORB-EVVC3nnnnnnnnnnnn (where nnnnnnnnnnnn is the serial number of the computer). The factory-established password for the VIARIS UNI Wi-Fi network is 12345678. It is recommended to change this password so that no one else can access your VIARIS UNI.

  • Page 23: Viaris App For Management From Smartphone

    VIARIS CHARGER MANAGEMENT FROM SMARTPHONE Application that facilitates the management and remote control of the charger, allowing performing:  On and off remotely.  Configurable notifications of notices about the status of the load.  Management capacity of one or more VIARIS. ...
  • Page 24 Procedure for switching to RFID activation and card register in app 1. Access the RFID Cards menu within the VIARIS app configuration 2. RFID Cards Menu When entering this menu it appears that we have enabled Enable TOUCH. Switch to OFF and the menu will automatically appear to configure activation via RFID card.
  • Page 25 Clicking on Add Card the status bar of the VIARIS will blink white while waiting for the card to be passed through the activation zone. 3. Pass the card to authorize by the charger When you pass the card to register through the activation zone, in the app you will be identified with your code.

  • Page 26: Maintenance

    For the card configuration to be upload to our VIARIS charger you must press Save. In this way we leave the charger configured so that only the loading permission is activated through the RFID cards that we have registered. Available video of the procedure for adding RFID cards (in Spanish): MAINTENANCE In the design of the equipment it is envisaged that maintenance will be very low depending on the long life of their components, limited to cleaning tasks,...

  • Page 27: Technical Characteristics

    TECHNICAL CHARACTERISTICS Feeding Nominal frequency Depending on characteristics label Power Single phase Triphase Vacuum Load function Charging modes (depending on model) Modes 1 and 2 according to EN 61851-1 (Schuko) Mode 3 according to EN 61851-1 Connector cable Type 2. Load mode 3: according to EN 62196-2 Communication Wi-Fi802.11 b/g/n...

  • Page 28: Replace The Battery

    REPLACE THE BATTERY ATTENTION: This is a product with an embedded battery. Do not dispose of the product without taking the precaution of dismantling the battery and depositing it in a suitable recycling container. The equipment has a 3V CR2032 battery. To replace the battery or remove it at the end of the life of product, remove the screws that fix the protection and the power selection knob.

  • Page 29: Extras

    EXTRAS VIARIS UNI smart chargers can incorporate, depending on the model:  Schuko Base Load mode 1 and 2  Single-phase and three-phase secondary counter Certified according to the MID Directive (2004/22/EC). According to EN 50470-3  Ethernet communication For installations requiring Ethernet communication.
  • Page 30 Charger connected to the vehicle, the Error; turn off the charger from the status bar is fixed red and does not protections and switch back on. charge. Charger connected to the vehicle, the Reserved State, e.g. in an up-to-date status bar is fixed blank and does not situation;...

  • Page 31: Directives And Reference Standards

    IN 61851-22:2002 IN 50581:2012 Hereby, ORBIS TECNOLOGÍA ELÉCTRICA S.A. declares that the type of VIARIS UNI wireless device is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: http://www.orbis.es/downloads/declarations-of-conformity...
  • Page 32 01/04.2020 A01600109459265 ORBIS TECNOLOGÍA ELÉCTRICA S.A. Lleida, 61 E-28020 MADRID Telephone:+ 34 91 5672277 E-mail:info@orbis.es http://www.orbis.es...
