- Page 1 PRESTIGIO® REVOLT A2 Wireless charger User Manual...
-
Page 2: Table Of Contents
Read Before Using Benefits of Prestigio Revolt A2 Smart Dock Product Bundle Components and Interface Elements Technical Specifications Operation Guide LED Indicators Troubleshooting Safety Guidelines Care Recommendations Transportation and Storage Rules Waste Disposal ©2020 Prestigio | All rights reserved | version 1.0... -
Page 3: Read Before Using
REVOLT A2 Read Before Using Thank you for choosing the Prestigio Revolt A2 wireless charger. To ensure that you are using the charger correctly and safely, please read this manual before you start. Do not discard the manual, as you may have to refer to it in the future. - Page 4 REVOLT A2 Benefits of Prestigio Revolt A2 Charger The Prestigio Revolt A2 wireless charger is designed for your comfort. Its design and operation principles allow you to position it as conveniently as possible, so that it won't get in the way and won't become an eyesore. The charger...
-
Page 5: Product Bundle
REVOLT A2 Product Bundle Prestigio Revolt A2 wireless charger 1 pc. Power adapter 24V/1A 1 pc. Charging pad 1 pc. Quick user guide 1 pc. Warranty card 1 pc. ©2020 Prestigio | All rights reserved | version 1.0... -
Page 6: Components And Interface Elements

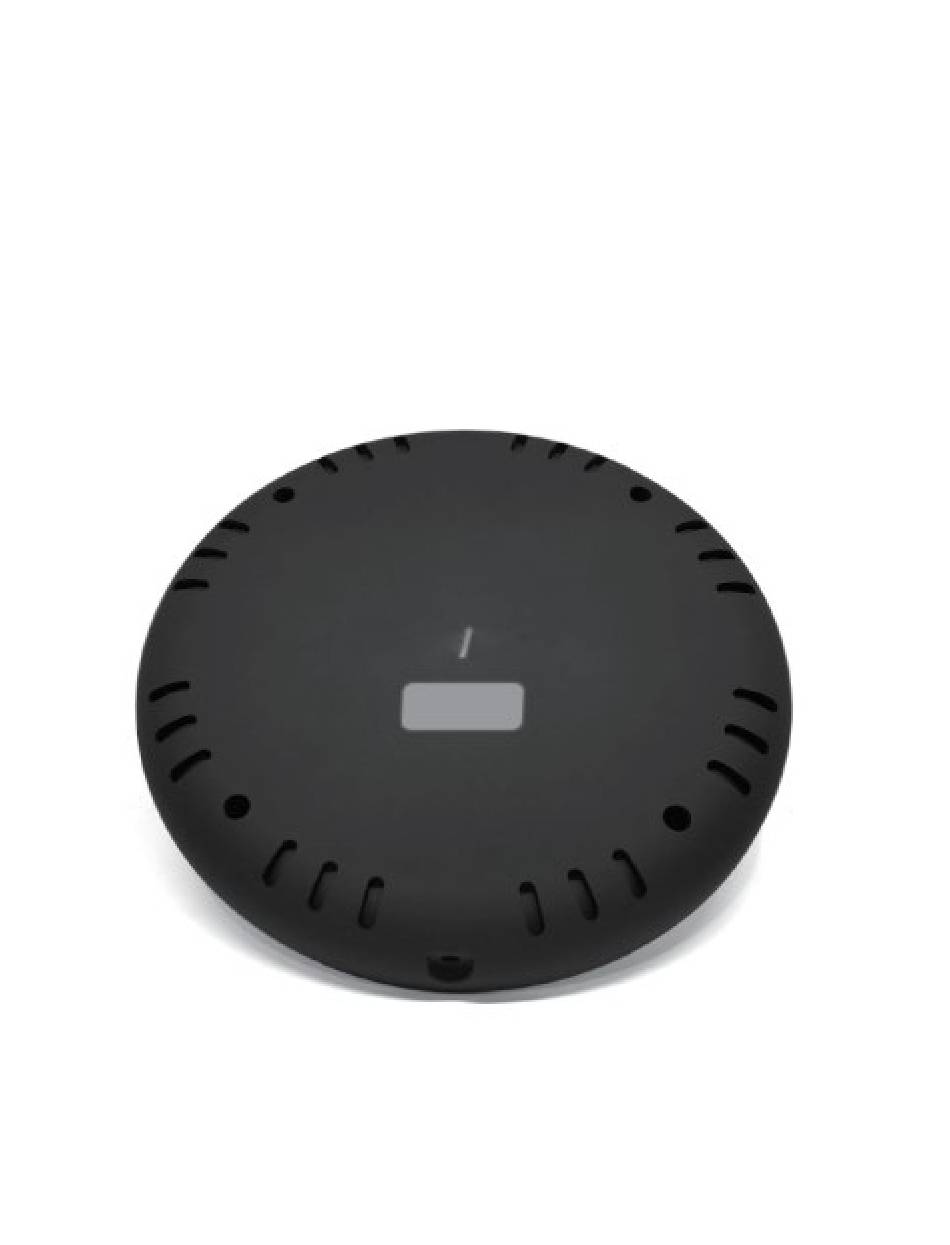

REVOLT A2 Components and Interface Elements 1. DC input for the power adapter 2. LED indicator 3. Ventilation holes 4. Mounting holes ©2020 Prestigio | All rights reserved | version 1.0... -
Page 7: Technical Specifications
REVOLT A2 Technical Specifications Height 20 mm Diameter 157 mm Power capacity 24V/1A Wireless charging interface 5W (Qi compatible) Optimal use range 15-40 mm ©2020 Prestigio | All rights reserved | version 1.0... -
Page 8: Operation Guide
2. Using double-sided tape, attach the charger to any non- metal surface. If necessary, you may also secure it with М3х16 screws. ©2020 Prestigio | All rights reserved | version 1.0... - Page 9 4. Place the charging pad on the other side of the surface you chose, ensuring that the pad's center aligns with the center of the charger. The pad will focus the charger's emissions on your smartphone. ©2020 Prestigio | All rights reserved | version 1.0...
- Page 10 This may damage your smartphone or its case, the charging pad, or the object within the charger's active range. 5. Plug the wireless charger in, using the included power adapter. ©2020 Prestigio | All rights reserved | version 1.0...
- Page 11 REVOLT A2 6. Place your smartphone in the center of the charging pad. Please note that the smartphone must support wireless charging. ©2020 Prestigio | All rights reserved | version 1.0...
-
Page 12: Led Indicators
Blue light The wireless charger is plugged in and in use Red light that The charger is malfunctioning. turns Please consult the Troubleshooting blinking blue section. once every second ©2020 Prestigio | All rights reserved | version 1.0... -
Page 13: Troubleshooting
15- 40 mm range. - Ensure that your smartphone is properly aligned with the charging pad - Try repositioning your smartphone by moving it a little in different directions ©2020 Prestigio | All rights reserved | version 1.0... - Page 14 The problem isn't If this didn't solve your problem solved or if you have additional questions, please contact customer support. The contact information is provided in the warranty card. ©2020 Prestigio | All rights reserved | version 1.0...
-
Page 15: Safety Guidelines
6. Do not use the charger in very dusty places. 7. Keep the charger and its accessories out of the reach of children. ©2020 Prestigio | All rights reserved | version 1.0... -
Page 16: Care Recommendations
REVOLT A2 Care Recommendations Clean the charger with a soft, dry cloth or with alcohol-free wipes for cleaning office equipment. ©2020 Prestigio | All rights reserved | version 1.0... -
Page 17: Transportation And Storage Rules
4. The charger may be shipped by any means of transport across any distance, but it must be shipped in its original packaging. ©2020 Prestigio | All rights reserved | version 1.0... -
Page 18: Waste Disposal
REVOLT A2 Waste Disposal Do not dispose of the charger and its accessories with regular household waste. At the end of their service life, take them to an electronics recycling facility. ©2020 Prestigio | All rights reserved | version 1.0... - Page 19 © 2020 Prestigio. All rights reserved. All names and trademarks, as well as logos and other symbols mentioned herein are the property of their respective owners. Prestigio reserves the right to amend this document without prior notice to its customers, and it will not be held liable for any negative consequences that may result from technical and/or typographic errors in this document and/or from using an outdated version of this document.
