Apera Instruments LabSen 753 User Manual

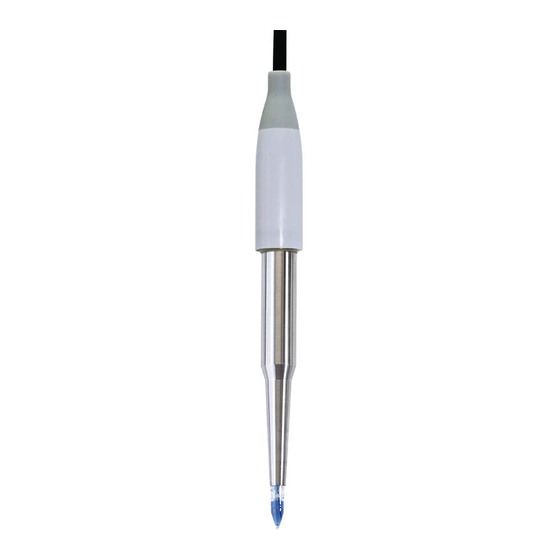

LabSen 753 Stainless Steel Sheath Spear pH Electrode
LabSen electrochemical sensors are premium pH electrode with manufacturing technology and key
components imported from Switzerland. LabSen753 spear pH electrode adopts spear membrane,
which can easily pierce into solid or semi-solid medium. This probe is suitable for pH measuring of
cheese, flour products, meat and fruits.
This probe has following features:
 Adopts food grade stainless steel sheath, offers strong protection, comply with food hygiene
requirements, suitable for food pH testing.
 Blue gel inner solution, does not flow and will not cause bubble.
 Maintenance-free polymer electrolyte, non-diaphragm structure.
 Long life reference system, has better stability and service life.

Technical Data

1
Measuring Range
Temperature Range
Shaft Material
Membrane Shape
Reference
Junction

Usage and Maintenance

2
Connect BNC & RCA plug to the input on the pH meter.
2.1
When measuring, please unscrew the bottle cap, pull out the electrode and rinse it with
2.2
deionized water. After using, please put the electrode back into the bottle and screw tight the
cap.
The electrode must be soaked in 3M KCl solution for storage. Because after long time
2.3
exposure in air, Polymer electrolyte will cause shrinkage.
The electrode's measuring tip should be soaked in the soaking bottle containing certain
2.4
amount of 3M KCl soaking solution to keep the membrane hydrated and junction unblocked.
User Manual
(0 ~ 14) pH
(0 ~ 80)°C
Stainless Steel
Tapered
Long Life
Ceramic+Single Pore
Before pulling out or putting back the electrode,
make sure to fully loosen the blue cap on the
storage sleeve so that the electrode can move in
and out smoothly.
Electrolyte
Soaking Solution
Electrode Electrode (Ø12×115) mm
Dimension
Measuring Tip (Ø6×50) mm
Connector
Cable
Polymer
3M KCl
BNC/RCA
Ø5×1m
