SHURFLO
PRO BLASTER
®
MARINE WASHDOWN PUMP
MODEL SERIES 4248, 4258, 4348 & 4358
The NEW SHURFLO PRO BLASTER™ II is designed for the toughest washdown applications.
SHURFLO'S PRO BLASTER™ II wash down pump design was created with unique over-molded single piece diaphragm, assuring
long life and top performance in all deck wash down plumbing systems. Designed as the next legendary pump to exceed the
expectations of our customers, the PRO BLASTER™ II pumps are designed for the toughest marine wash down applications.
SHURFLO'S quality reputation has been built on the reliability and dependability of every pump we build. The PRO BLASTER™ II
wash down automatic demand pumps are quiet, thermally protected and can run dry without damage.

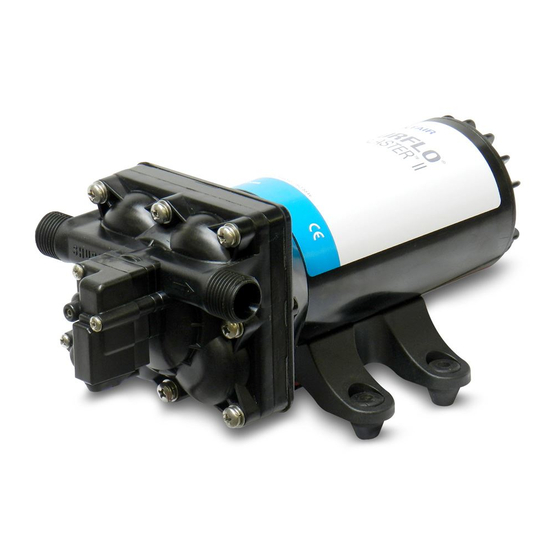

Shown with PRO BLASTER™ II 4.0
INSTALLATION TIPS
❚ Properly sized plumbing
❚ Properly sized wiring
❚ Mount in a dry location that allows
easy access if maintenance is required
❚ Mount higher than the outside water
level, The pump is capable of 6ft. verti-
cal prime above water line.
❚ Use proper fuse size
❚ Install strainer on pump inlet
❚ Minimize plumbing elbows and valves
❚ Flexible high-pressure hose on inlet
and outlet
FLOW MANAGEMENT SOLUTIONS
II
OPERATION TIPS
❚ Pump is design for intermittent op-
eration only
❚ Turn off power to the pump when boat
is unattended
❚ Maintain your strainer clean for ulti-
mate pump performance
❚ Pump will perform at best when
proper voltage is provided
911-1035 REV. F
FEATURES
❚ 4 independent chambers
❚ Co-Molded diaphragm
❚ Adjustable pressure switch
❚ Self-priming up to 6 feet
❚ Sealed switch
❚ Sealed motor
❚ Corrosion resistance electro-coated
motor
❚ Thermally protected
❚ Ignition protected, CE
APPLICATION
❚ Marine 12V DC or 24V DC systems
– see pump label for rated voltage
❚ Wash Down application
❚ General water transfer
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHURFLO PRO BLASTER II 4248 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pentair SHURFLO PRO BLASTER II 4248 Series

  • Page 1 SHURFLO PRO BLASTER ™ ® MARINE WASHDOWN PUMP MODEL SERIES 4248, 4258, 4348 & 4358 The NEW SHURFLO PRO BLASTER™ II is designed for the toughest washdown applications. SHURFLO’S PRO BLASTER™ II wash down pump design was created with unique over-molded single piece diaphragm, assuring long life and top performance in all deck wash down plumbing systems.
  • Page 2 INSTALLATION MOUNTING PLUMBING The PRO BLASTER™ II series pumps ❚ Consider a DRY location that allows ❚ Installation of a strainer (such as delivers water on demand. With the easy access if maintenance is required. SHURFLO 253 series) is required to pre- spray nozzle off (output side closed) The pump should not be located in an vent debris from entering the pump.
  • Page 3 GENERAL SAFETY PRECAUTIONS STRAINER / FILTRATION MAINTENANCE ❚ When the vessel is not in use, the Installation of a 50-mesh minimum Normal pump maintenance is all that main power switch should be off and strainer, such as SHURFLO series 253, is needed: Checking and cleaning of seacock valves should be CLOSED.
  • Page 4 3545 HARBOR GATEWAY SOUTH, SUITE 103, COSTA MESA, CA 92626, (800) 854-3218 WWW.SHURFLO.COM All Pentair trademarks and logos are owned by Pentair, Inc. All other brand or product names are trademarks or registered marks of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
