INSTALL THE PC, KEYBOARD EXTENDER & CAMERA

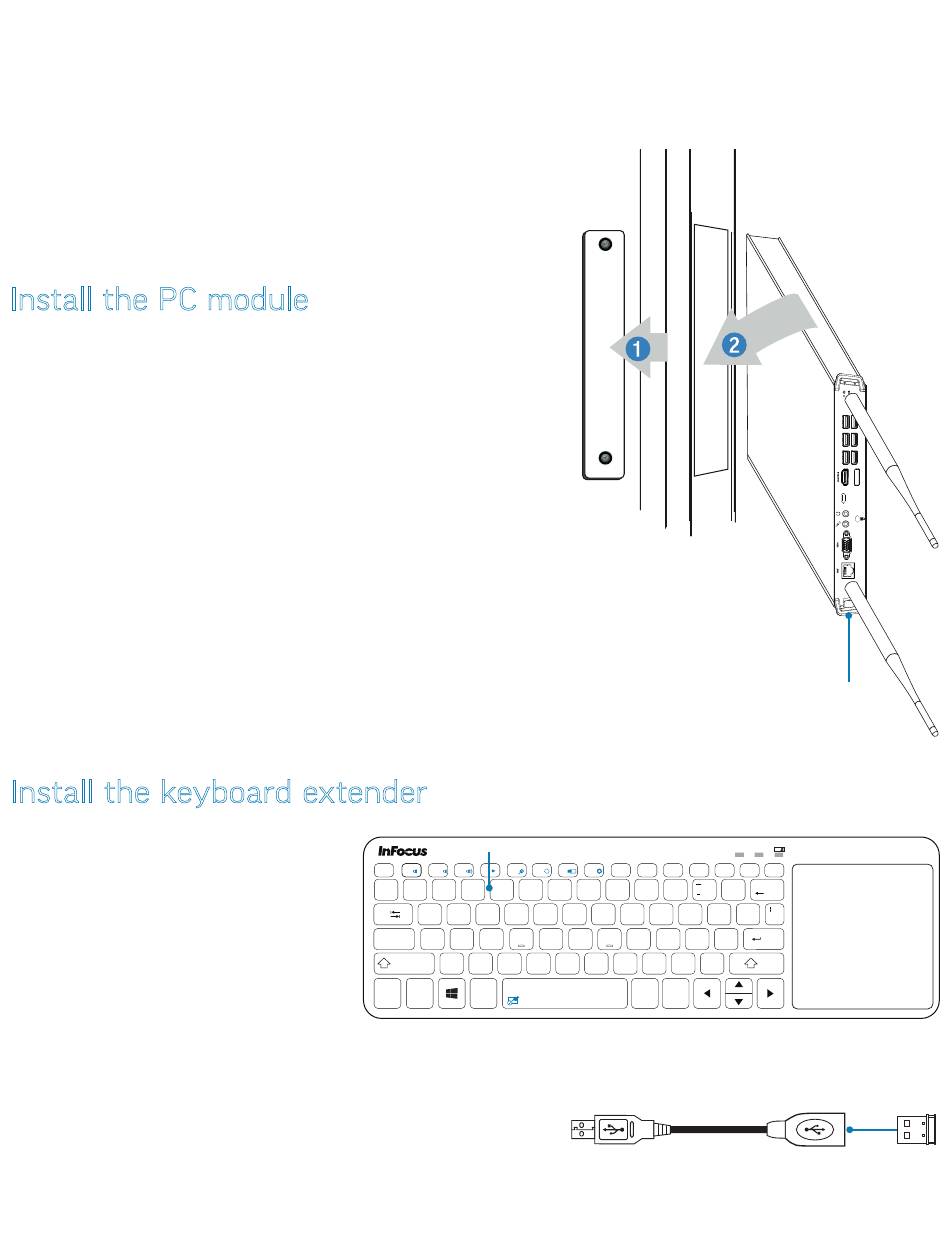

Install the PC module

1) Remove the PC cover plate on the right side panel by removing the
two Phillips screws (1).
2) Insert the PC into the slot with an orientation as shown in (2).
3) Push gently until the side tab locks into place, and the PC is flush to
the surface of the panel.
NOTE: If you should have to remove the PC, push the side tab to
unlock it, then pull the PC out.

Install the keyboard extender

1) Remove the dongle from the battery com-
partment in the back of the keyboard.
2) Attach the dongle to the provided keyboard
extender, then to a USB 2.0 or 3.0 port on
the side panel (page 12 and page 14).
NOTE: Make certain to use the provided
extender if the dongle is to be connected to
a USB 3.0 port.
(The PC, Keyboard and Camera are optional accessories)
