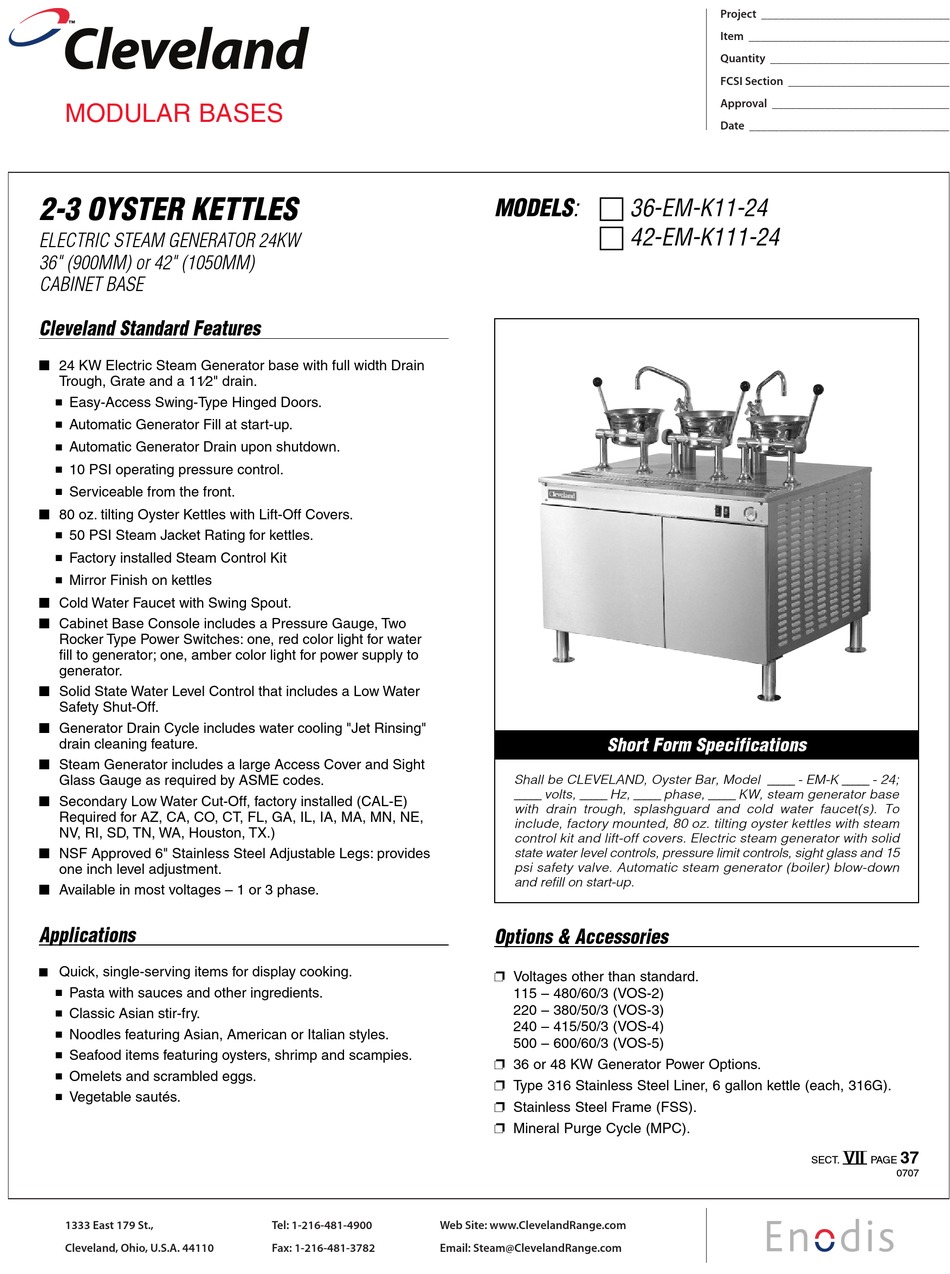

Cleveland 36-EM-K11-24 Specifications

™
Cleveland
MODULAR BASES
2-3 OYSTER KETTLES
ELECTRIC STEAM GENERATOR 24KW
36" (900MM) or 42" (1050MM)
CABINET BASE
Cleveland Standard Features
I 24 KW Electric Steam Generator base with full width Drain
Trough, Grate and a 11⁄2" drain.
I
Easy-Access Swing-Type Hinged Doors.
I
Automatic Generator Fill at start-up.
I
Automatic Generator Drain upon shutdown.
I
10 PSI operating pressure control.
I
Serviceable from the front.
I 80 oz. tilting Oyster Kettles with Lift-Off Covers.
I
50 PSI Steam Jacket Rating for kettles.
I
Factory installed Steam Control Kit
I
Mirror Finish on kettles
I Cold Water Faucet with Swing Spout.
I Cabinet Base Console includes a Pressure Gauge, Two
Rocker Type Power Switches: one, red color light for water
fill to generator; one, amber color light for power supply to
generator.
I Solid State Water Level Control that includes a Low Water
Safety Shut-Off.
I Generator Drain Cycle includes water cooling "Jet Rinsing"
drain cleaning feature.
I Steam Generator includes a large Access Cover and Sight
Glass Gauge as required by ASME codes.
I Secondary Low Water Cut-Off, factory installed (CAL-E)
Required for AZ, CA, CO, CT, FL, GA, IL, IA, MA, MN, NE,
NV, RI, SD, TN, WA, Houston, TX.)
I NSF Approved 6" Stainless Steel Adjustable Legs: provides
one inch level adjustment.
I Available in most voltages – 1 or 3 phase.
Applications
I
Quick, single-serving items for display cooking.
I
Pasta with sauces and other ingredients.
I
Classic Asian stir-fry.
I
Noodles featuring Asian, American or Italian styles.
I
Seafood items featuring oysters, shrimp and scampies.
I
Omelets and scrambled eggs.
I
Vegetable sautés.
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: 36-EM-K11-24
42-EM-K111-24
Short Form Specifications
Shall be CLEVELAND, Oyster Bar, Model _____ - EM-K _____ - 24;
_____ volts, _____ Hz, _____ phase, _____ KW, steam generator base
with drain trough, splashguard and cold water faucet(s). To
include, factory mounted, 80 oz. tilting oyster kettles with steam
control kit and lift-off covers. Electric steam generator with solid
state water level controls, pressure limit controls, sight glass and 15
psi safety valve. Automatic steam generator (boiler) blow-down
and refill on start-up.
Options & Accessories
Ë Voltages other than standard.
115 – 480/60/3 (VOS-2)
220 – 380/50/3 (VOS-3)
240 – 415/50/3 (VOS-4)
500 – 600/60/3 (VOS-5)
Ë 36 or 48 KW Generator Power Options.
Ë Type 316 Stainless Steel Liner, 6 gallon kettle (each, 316G).
Ë Stainless Steel Frame (FSS).
Ë Mineral Purge Cycle (MPC).
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
VII 37
SECT. PAGE
0707
