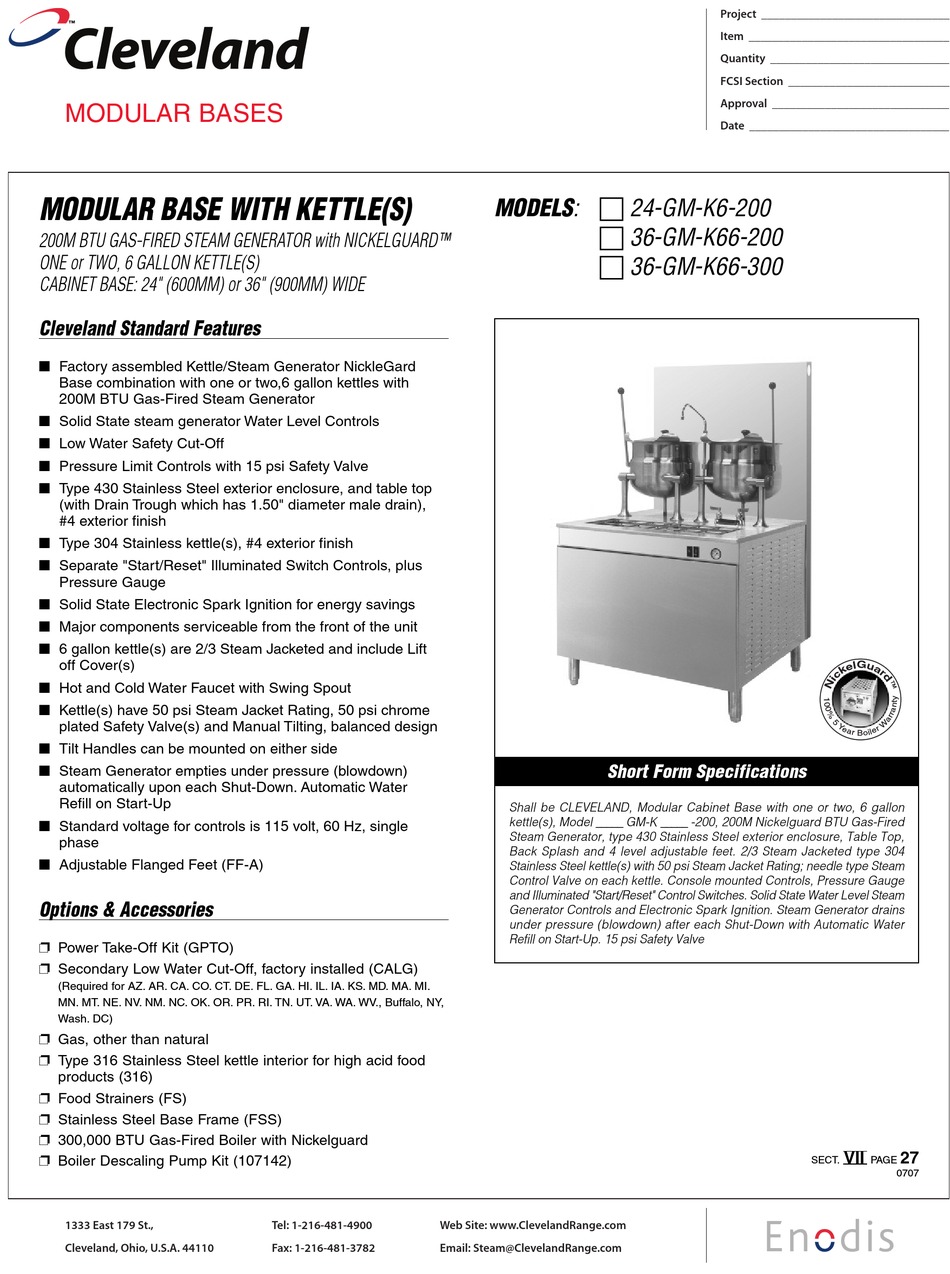

Cleveland 24-GM-K6-200 Specifications

™
Cleveland
MODULAR BASES
MODULAR BASE WITH KETTLE(S)
200M BTU GAS-FIRED STEAM GENERATOR with NICKELGUARD™
ONE or TWO, 6 GALLON KETTLE(S)
CABINET BASE: 24" (600MM) or 36" (900MM) WIDE
Cleveland Standard Features
I Factory assembled Kettle/Steam Generator NickleGard
Base combination with one or two,6 gallon kettles with
200M BTU Gas-Fired Steam Generator
I Solid State steam generator Water Level Controls
I Low Water Safety Cut-Off
I Pressure Limit Controls with 15 psi Safety Valve
I Type 430 Stainless Steel exterior enclosure, and table top
(with Drain Trough which has 1.50" diameter male drain),
#4 exterior finish
I Type 304 Stainless kettle(s), #4 exterior finish
I Separate "Start/Reset" Illuminated Switch Controls, plus
Pressure Gauge
I Solid State Electronic Spark Ignition for energy savings
I Major components serviceable from the front of the unit
I 6 gallon kettle(s) are 2/3 Steam Jacketed and include Lift
off Cover(s)
I Hot and Cold Water Faucet with Swing Spout
I Kettle(s) have 50 psi Steam Jacket Rating, 50 psi chrome
plated Safety Valve(s) and Manual Tilting, balanced design
I Tilt Handles can be mounted on either side
I Steam Generator empties under pressure (blowdown)
automatically upon each Shut-Down. Automatic Water
Refill on Start-Up
I Standard voltage for controls is 115 volt, 60 Hz, single
phase
I Adjustable Flanged Feet (FF-A)
Options & Accessories
Ë Power Take-Off Kit (GPTO)
Ë Secondary Low Water Cut-Off, factory installed (CALG)
(Required for AZ. AR. CA. CO. CT. DE. FL. GA. HI. IL. IA. KS. MD. MA. MI.
MN. MT. NE. NV. NM. NC. OK. OR. PR. RI. TN. UT. VA. WA. WV., Buffalo, NY,
Wash. DC)
Ë Gas, other than natural
Ë Type 316 Stainless Steel kettle interior for high acid food
products (316)
Ë Food Strainers (FS)
Ë Stainless Steel Base Frame (FSS)
Ë 300,000 BTU Gas-Fired Boiler with Nickelguard
Ë Boiler Descaling Pump Kit (107142)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: 24-GM-K6-200
36-GM-K66-200
36-GM-K66-300
Short Form Specifications
Shall be CLEVELAND, Modular Cabinet Base with one or two, 6 gallon
kettle(s), Model _____ GM-K _____ -200, 200M Nickelguard BTU Gas-Fired
Steam Generator, type 430 Stainless Steel exterior enclosure, Table Top,
Back Splash and 4 level adjustable feet. 2/3 Steam Jacketed type 304
Stainless Steel kettle(s) with 50 psi Steam Jacket Rating; needle type Steam
Control Valve on each kettle. Console mounted Controls, Pressure Gauge
and Illuminated "Start/Reset" Control Switches. Solid State Water Level Steam
Generator Controls and Electronic Spark Ignition. Steam Generator drains
under pressure (blowdown) after each Shut-Down with Automatic Water
Refill on Start-Up. 15 psi Safety Valve
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
VII 27
SECT. PAGE
0707
