8. CMM Setting

The CMM Setting tab provides the LAN configuration, SNMP setting and CMM
information (Figure 8-1). The LAN Configuration shows the current CMM IP address,
Gateway and Subnet Mask. The CMM IP type can be set as a DHCP or static address.
The SNMP setting lets you specify the SNMP destination address to receive the
SNMP trap from the CMM. Once the CMM detects a failure, it logs into SEL and
immediately sends the SNMP trap to the destinations. Update the SNMP destinations
by selecting from the SNMP list. The selected SNMP will then appear in the text field
of the Selected IP. Update the SNMP destination by pressing the Update Button. The
Community String of the SNMP trap also can be updated. For more information about
receiving traps, see "Trap Receiver" in ClearView IPMI User's Guide.
The CMM Info shows the firmware version and tag. Click the Reset button to reset
the CMM. You can also view this information and the related commands in the CMM
module through the Blade System tab.

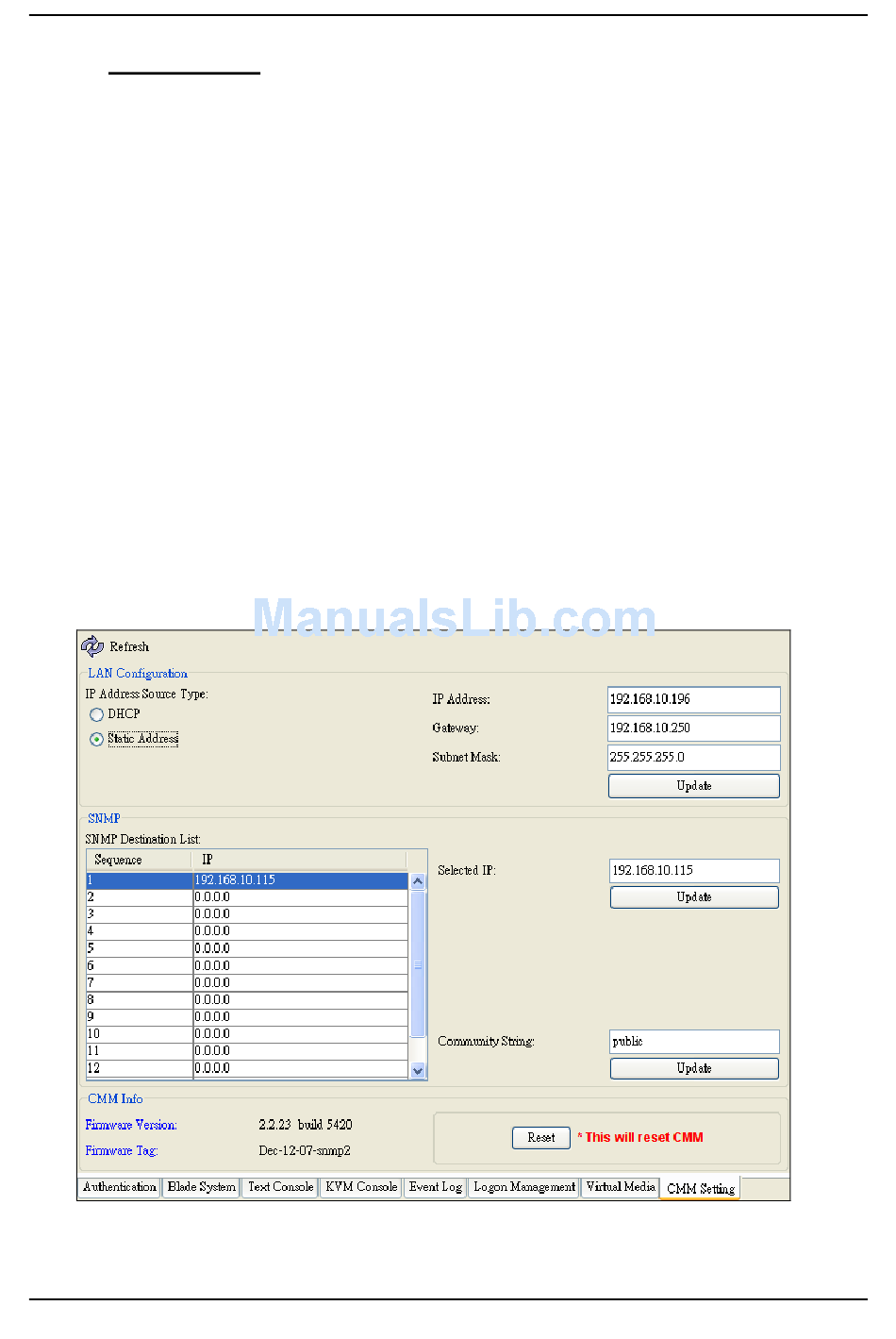

Figure 8-1. CMM Setting
33
