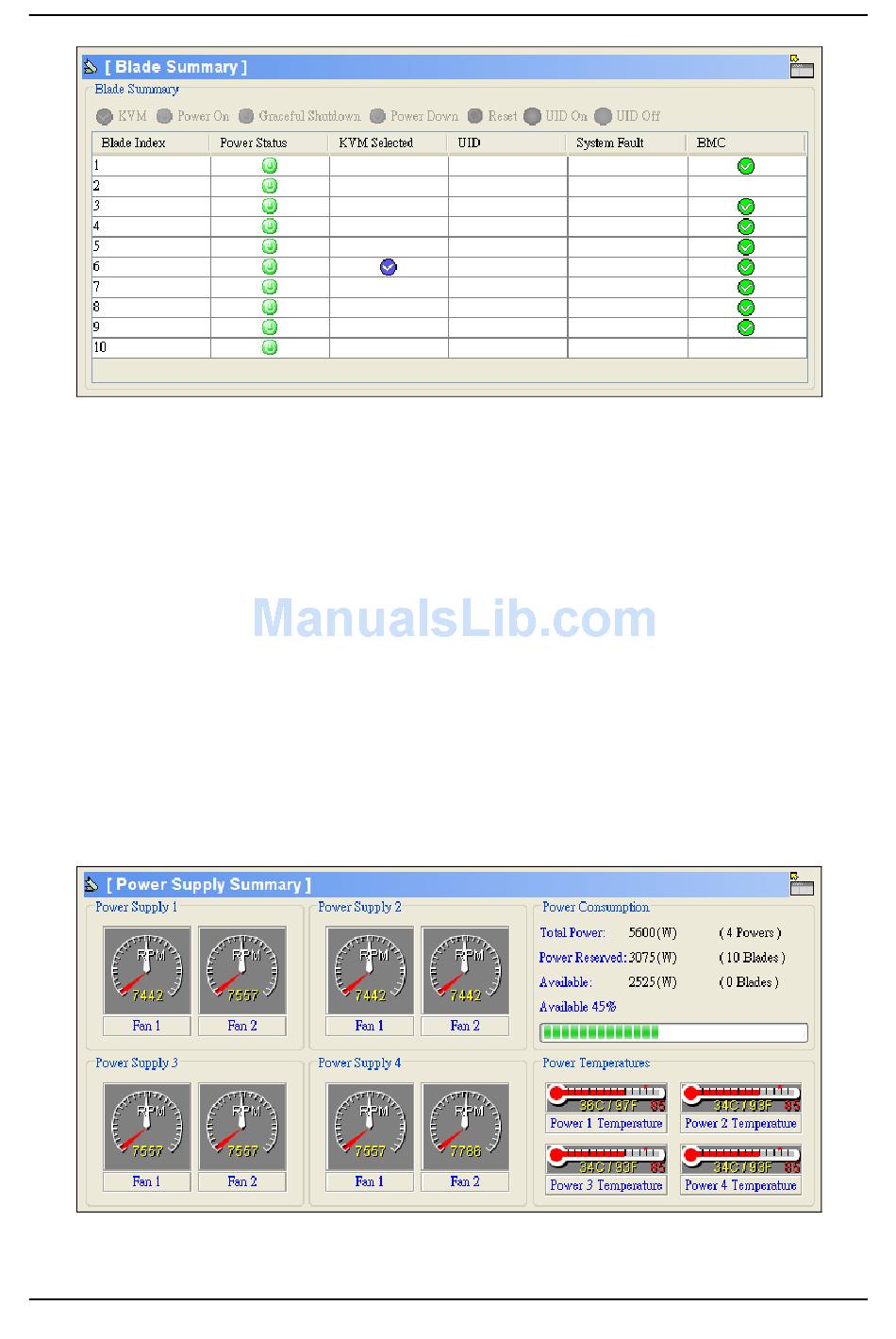

Figure 2-34. Blade Summary

1.9. Power Supply Summary UI

The Power Supply Summary, as shown in Figure 2-35, gives an overview of all
installed power supplies. User can see the all power supply fan and temperature status
in a single view. It is useful to observe the blade system cooling status. Power
Consumption gives an estimation of power (wattage) use. Total Power is the total
power provide from all installed power supplies that are currently turned on. Power
Reserved is an estimation of the possible usage of power wattage from blades.
Available is the amount of power that remains available to the system. If the available
power wattage is insufficient, a blade may not be powered on.
Figure 2-35. Power Supply Summary
