1.6. InfiniBand UI

Clicking on one of InfiniBand modules will have the InfiniBand UI appear, as shown
in Figure 2-30. This UI includes the following:
Status
Power Status: This shows the current InfiniBand power status: power on or
power off.
Initialized: This indicates that the InfiniBand has been initialized.
VVDD: This shows the VVDD status of the InfiniBand.
3.3V Aux: This shows the 3.3V Aux status.
1.2V: This shows the 1.2V status.
1.8V: This shows the 1.8V status.
3.3V: This shows the 3.3V status.
Temperature: This shows the temperature status.
Power Control
Power On: Click to power on the InfiniBand module.
Power Off: Click to power off the InfiniBand module.
Reset: Click to reset the InfiniBand module.

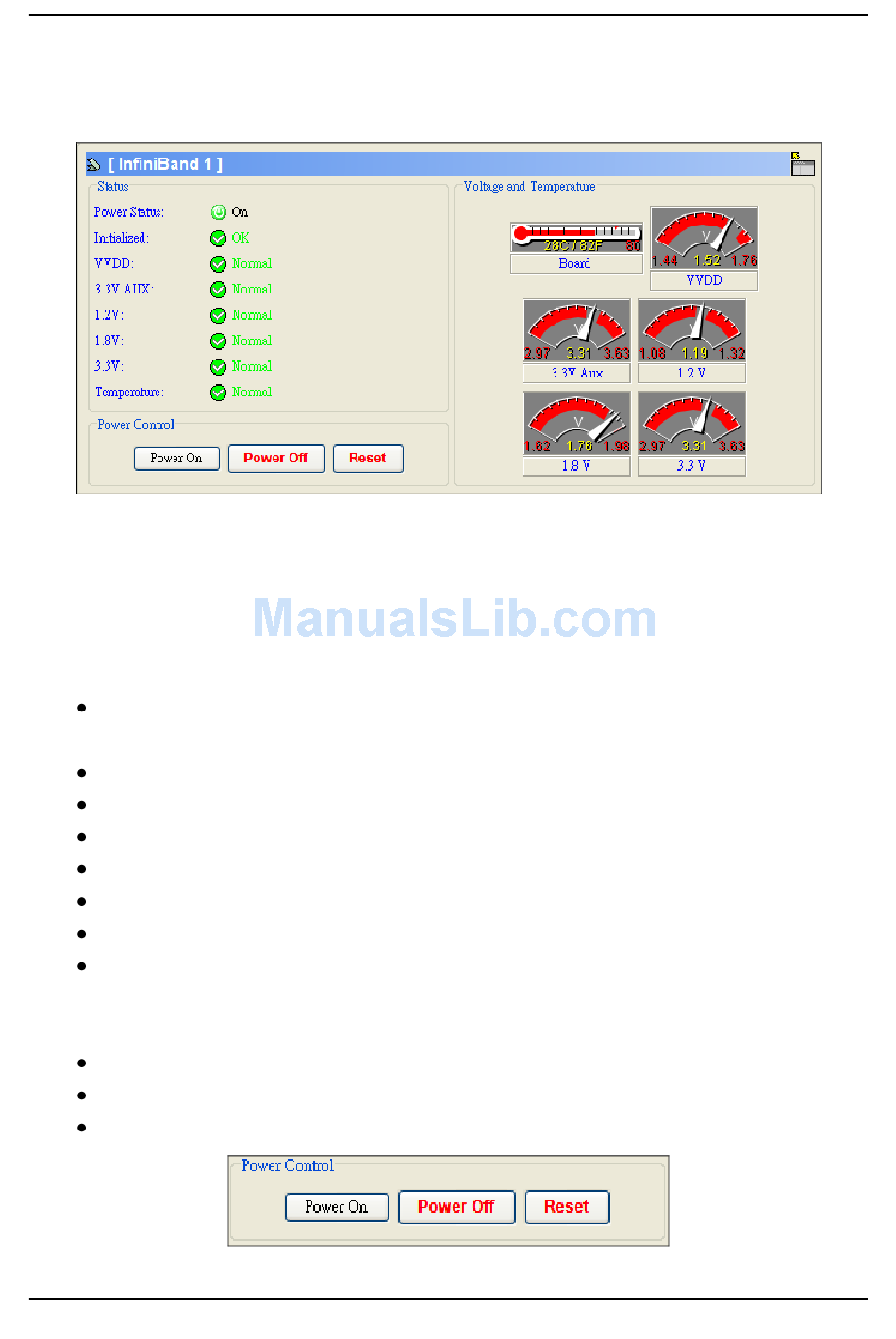

Figure 2-30. InfiniBand UI
Figure 2-31. InfiniBand Power Control
