1.2. Blade UI

Click on a blade module. The Blade UI as shown in Figure 2-9 will appear in the
Module UI section at the bottom of the screen. It contains the following:
Status
Power Status: Shows the current power status. Indications include power on,
power off and power fail status.
KVM: This shows whether KVM is selected or not. Click the Request button to
request KVM on this blade.
UID: This shows the status of the UID LED. Select the Enable option to enable or
disable the UID. Once the UID enabled, the UID LED on the blade panel will flash.
System Fault: This indicates the system fault status.
BMC: Shows BMC status. If BMC is installed, the BMC IP address will appear
here. Click the Update button (
2-10. Click the Refresh button ( ) to reload the BMC IP. If a BMC is not
not installed
installed,
disabled.
Watt: The estimated power consumption (wattage) of this blade. It is a static
value supplied by BIOS.
8

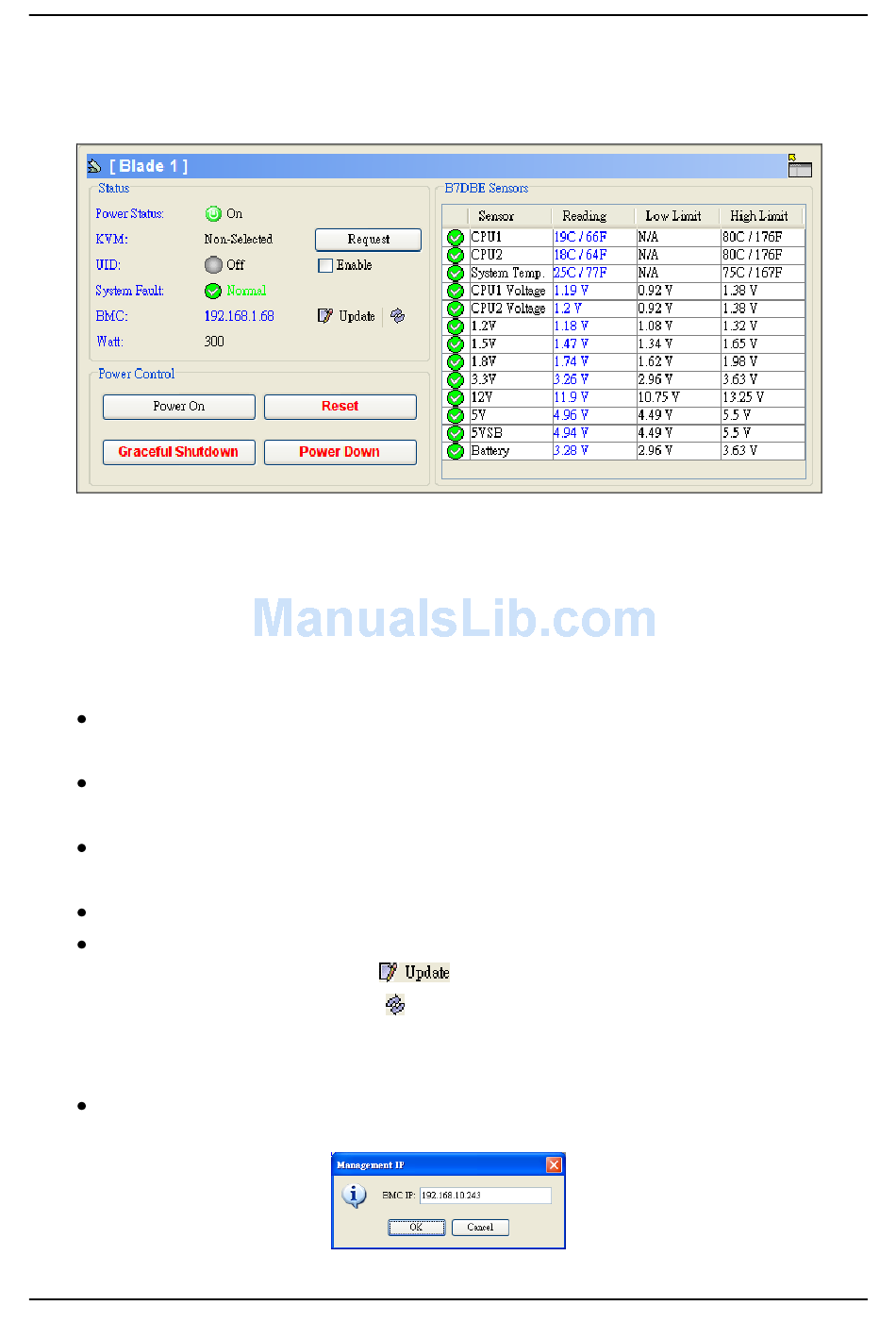

Figure 2-9. Blade UI
) to update the BMC IP as shown in Figure
appears and the Update and Refresh buttons are
Figure 2-10. Updating the BMC IP
