1.7. Failure Summary UI

The Failure Summary, as shown in Figure 2-33, is a list of failures that occurred in the
V7000 system. The failure table shows the failure level, source, item, detail and side
info of the failure item. The failure location shows the exact module and position.
Click Go to switch the UI to the failed module that is highlighted in the table.
Click the Refresh (
button to save the current failure table as a CSV text file. Click the Clear (
button to clear the failure items in the current table.
NOTE: If a failure still exists, it is displayed again the next time you refresh the table.

1.8. Blade Summary UI

The Blade Summary, as shown in Figure 2-34, gives an overview of all installed
blades in the server. The summary table includes symbols for Power Status, KVM
Selected, UID, System Fault and BMC status for users to quickly understand the
overall blade status. A group management feature is also included. Users can select
multiple blades and send commands to perform power on, graceful shutdown, power
down, reset, UID on and UID off functions by pressing the corresponding button.
Note that you may only select one blade at a time for KVM.
) button to refresh the failure table. Click the Save (

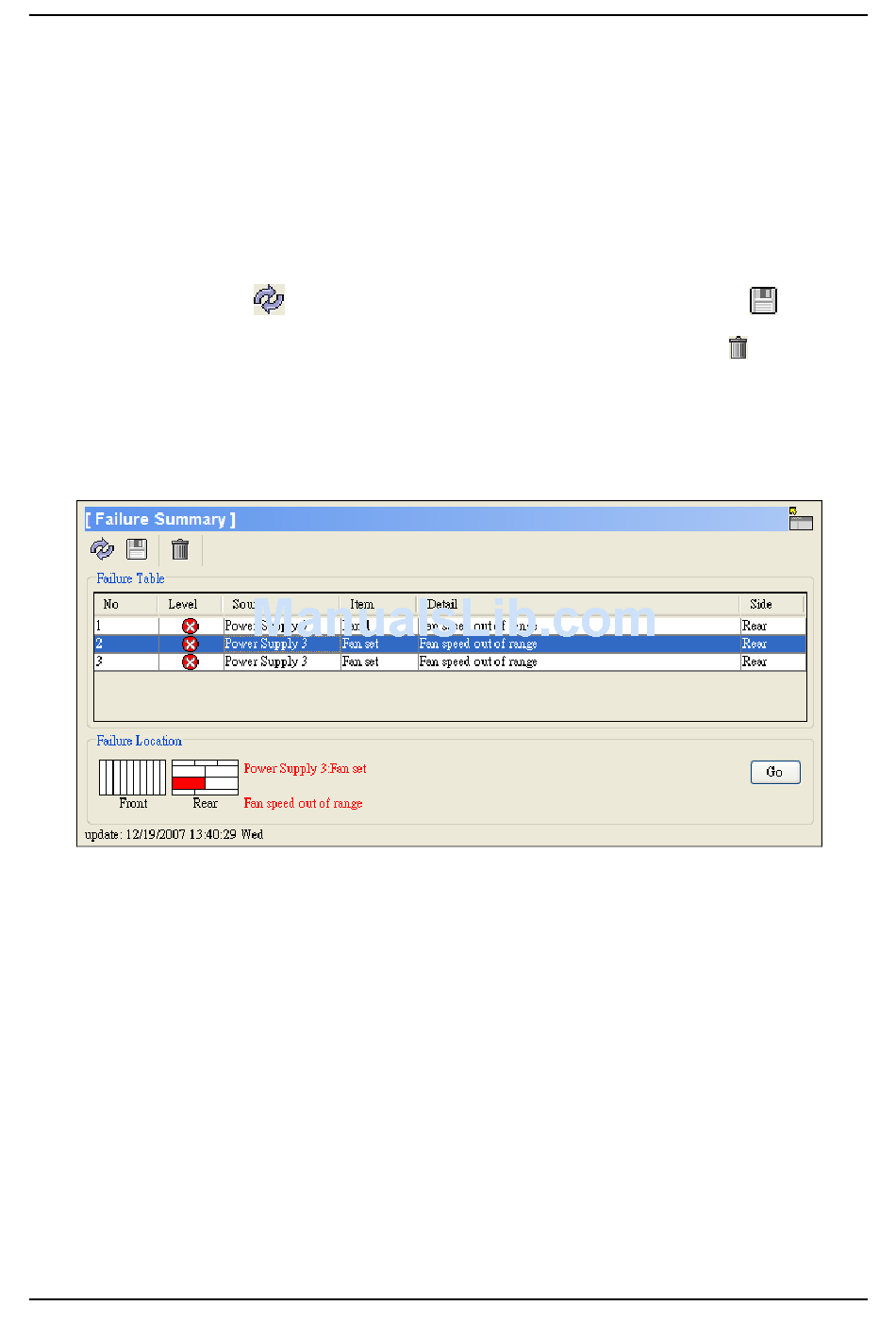

Figure 2-33. Failure Summary
)
)
