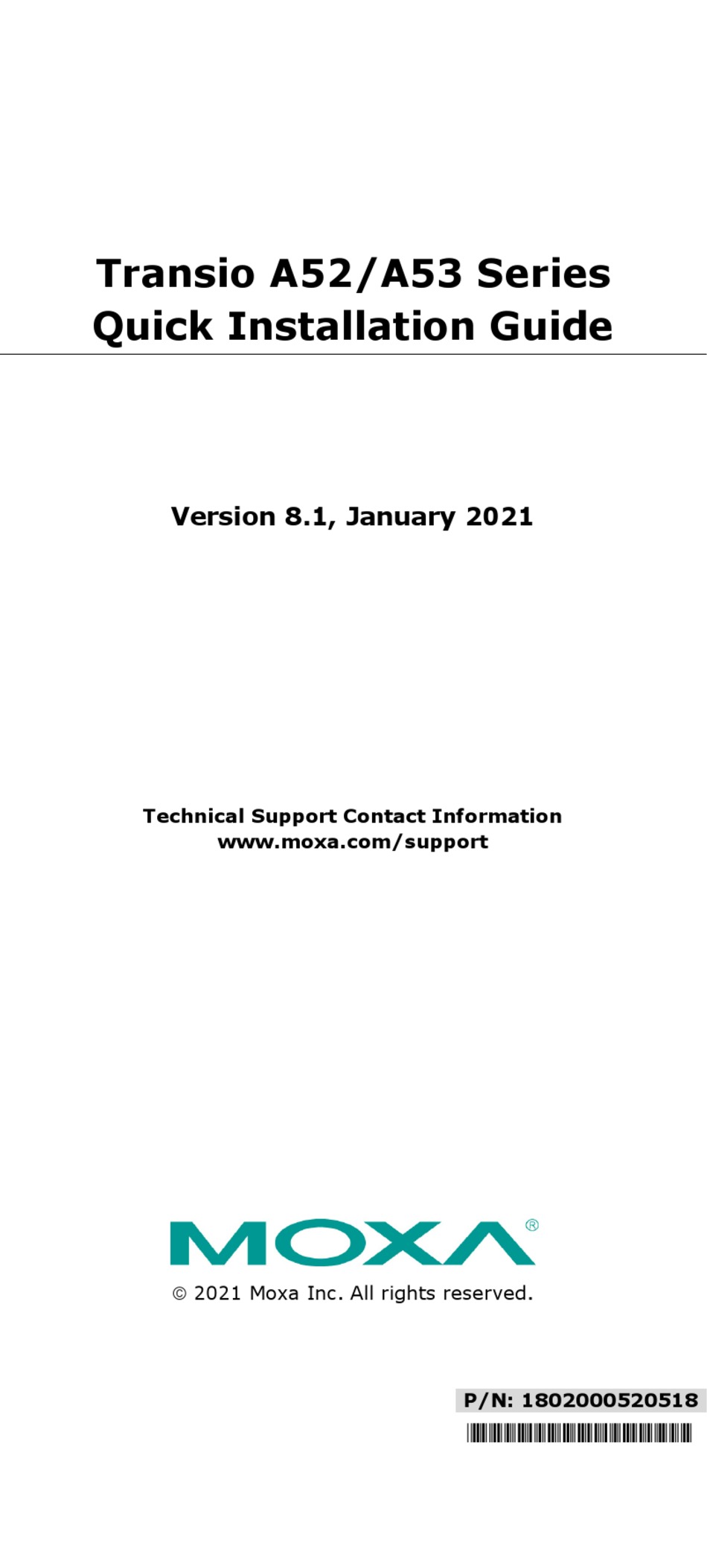

- Page 1 Transio A52/A53 Series Quick Installation Guide Version 8.1, January 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802000520518 *1802000520518*...

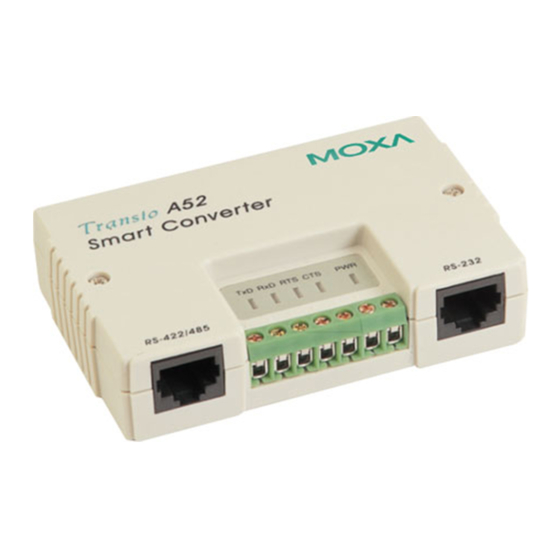

- Page 2 Overview The Transio A52/A53 are smart RS-232 to RS-422/485 bi-directional converters that allow one RS-232 port to be converted into an RS-422 or RS-485 port. With the A52/A53 you can control up to 32 devices within 1.2 km in a multidrop environment.
- Page 3 • An external power adaptor is required, with input voltage for the converter ranging from DC +9V to +30V. • Operating temperature: 0 to 55°C • Dimensions: 90 x 60 x 21 mm • Mounting Kit: Plastic Plates and screws for mounting the A52/A53 on a wall or surface.
- Page 4 Basic Communication Wiring Before placing a converter in an existing network, the converter should be properly configured. The following diagrams show typical layouts for both converters. LED Indicators LED indicators for TxD, RxD, RTS, CTS signals and PWR are located on the top of the A52/A53.
- Page 5 Power Supply The A52/A53 converters are designed for standard +24 VDC unregulated power for use in industrial environments. Operation is guaranteed when using any power supply between +9 and +30 VDC at 350 mA. An optional power adaptor (9 V 1.5 A UL 110/230 V) can support up to 4 converters (see the following diagram).
- Page 6 Type 2: You can connect the RS-232 side of the A52/A53 to a DTE, such as a terminal or PC COM1/2, with 3-pin wiring if you don’t need hardware flow control. A52/A53 DTE Device DTE Device DCE Device RJ45 DB25 Male DB9 Male DB25 Female RS-422/RS-485 Pinouts...
- Page 7 CE WARNING This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take appropriate measures. Federal Communications Commission Statement FCC - This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may...
