Quick Start Guide
I/Port I8020 and I8820

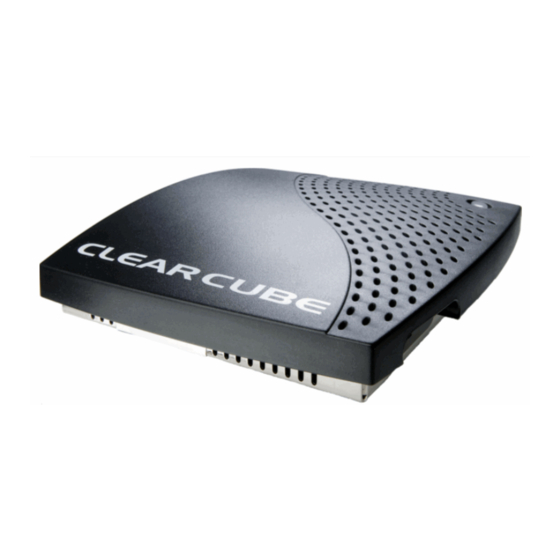

The I8020 is a Linux-based I/Port that delivers high secu-
QSG_I8x20_.fm — Enter your TB topic here
rity and performance from a compact package. With the
ClearCube Grid Center client software pre-installed on the
I/Port, administrators can create and manage connections
between their I/Ports and centralized PC Blades. Since the
connections are established over standard Ethernet net-
works the distance between I/Ports and PC Blades is virtu-
ally unlimited.
The I8820 I/Port delivers additional flexibility to the I/Port
product family by running the Microsoft Windows XP
Embedded (XPe) operating system. Windows XPe
enables a wider variety of supported peripherals and can
support some locally installed applications such as VPN
clients.
Install your I/Port, then connect the power supply, keyboard, mouse,
Ethernet connection, and video to the ports as indicated. Attach other
devices as desired.
Use the power button on the top of the I/Port to turn it on and off. Verify
connectivity to your network by watching for the flashing green network
activity LED in the Ethernet connector socket, and enable any necessary
ports on your switches and routers.

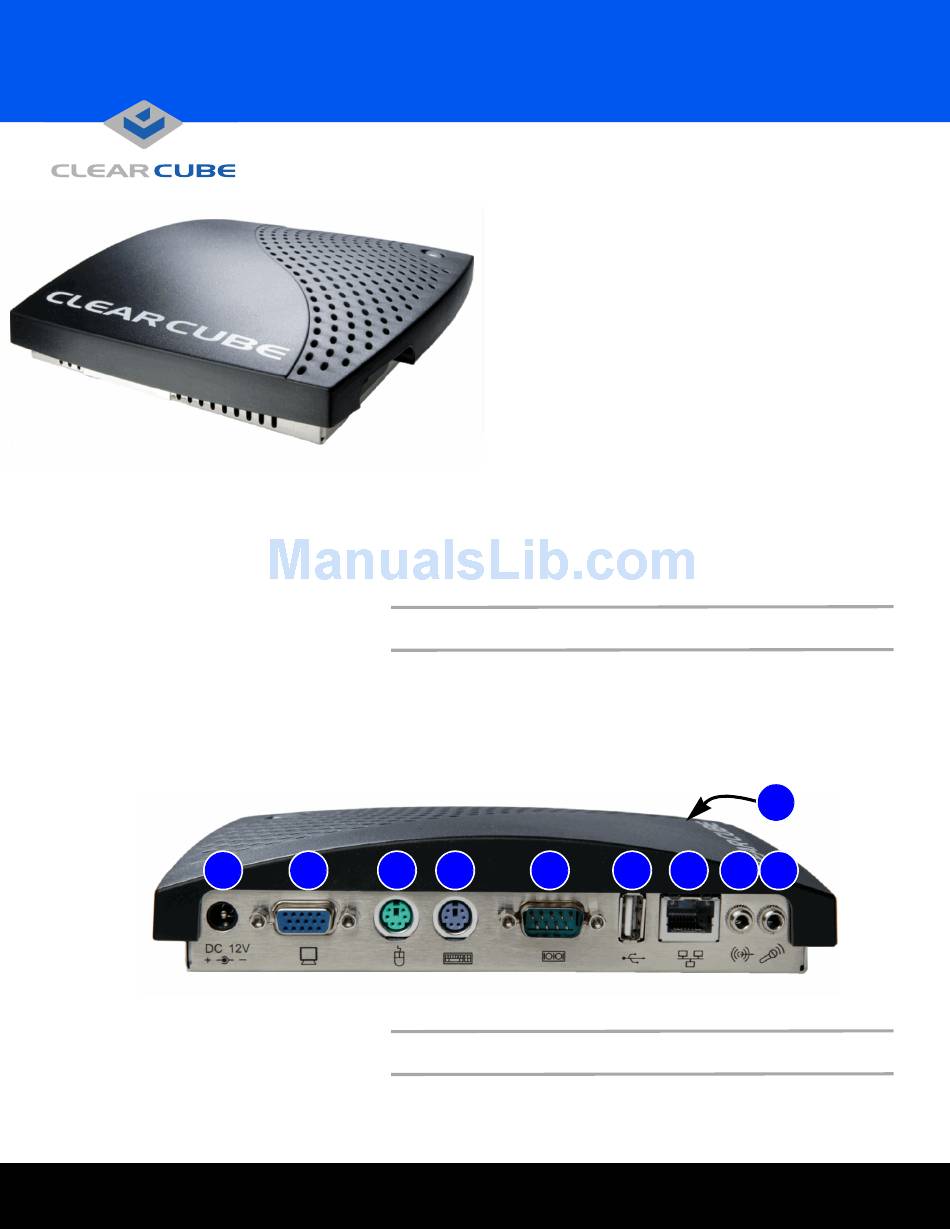

CONNECTIONS
1. Power supply connector
2. VGA video port
3. PS/2 mouse port
4. PS/2 keyboard port
5. Serial port
3 4
OPERATING NOTES
Both I/Ports allow access to BIOS configuration options by pressing F2
during start-up.
Austin, Texas 78759
6. USB 1.1 port (rear panel)
7. 10/100 BaseT Ethernet port
8. Audio line out
9. Audio line in (local use only)
10. USB 1.1 ports (front panel)
5 6 7
voice 512 652 3500 www.clearcube.com
10
8 9
