ClearOne PSR1212 Datasheet

SOPHISTICATED AUDIO
PROCESSING AND MIC
MIXING POWER

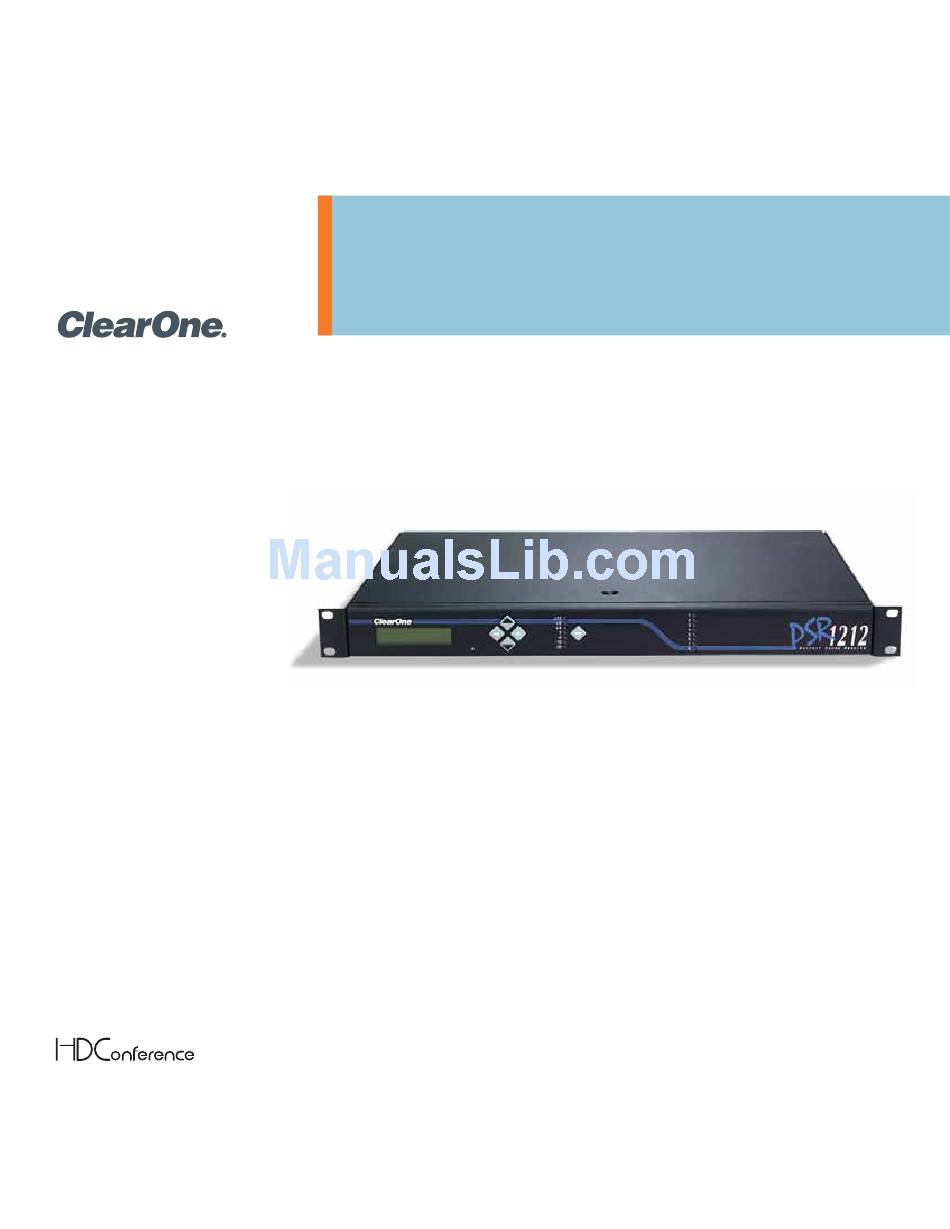

PSR1212
Digital Matrix Mixer
A highly-advanced 12 x 12 digital matrix mixer featuring
ClearOne's sophisticated audio processing technologies. The
PSR1212 provides microphone mixing and routing, and is the
ideal solution for sound reinforcement and room combining
applications in a wide variety of venues.
APPLICATIONS
Hotels and Convention Centers
Auditoriums
Stadiums
Conference Rooms
Houses of Worship
Theaters
ADVANTAGES
Superior Audio Performance & Coverage
+ 12x12 matrix with level control at the cross points
+ Eight-channel automatic microphone mixer with four line inputs
+ Eight audio processing buses can be placed anywhere within the matrix mixer
audio path; each bus has 15 filters
+ Eight input channels are programmable for input gain, configurable audio
processing, muting and automatic mixer
+ Internal room-combining capabilities
+ Customizable microphone inputs – gate on and off as desired
+ Automatic level control
Configuration Flexibility
+ 32 programmable presets allow for instant configuration changes and quick
adaptability to a variety of sound reinforcement and room-combining
applications
+ Enables grouping of mics across four automatic mic mixers within a single
PSR1212
+ Program, operate and diagnose with a connected PC or other serial remote
control
+ Any combination of inputs can be routed to any combination of outputs
System Control
+ Digital audio and control bus allows up to eight PSR1212s to be connected and
controlled as a single unit
+ All interconnected devices can be accessed, controlled and programmed via a
single RS-232 connection
+ Basic operational functions can be controlled remotely with the optional
ClearOne Select Control Panel or Volume Control Panel
+ Macro scripting language enables sophisticated control without the need for an
expensive external control system
PROFESSIONAL CONFERENCING
DATA SHEET
<
