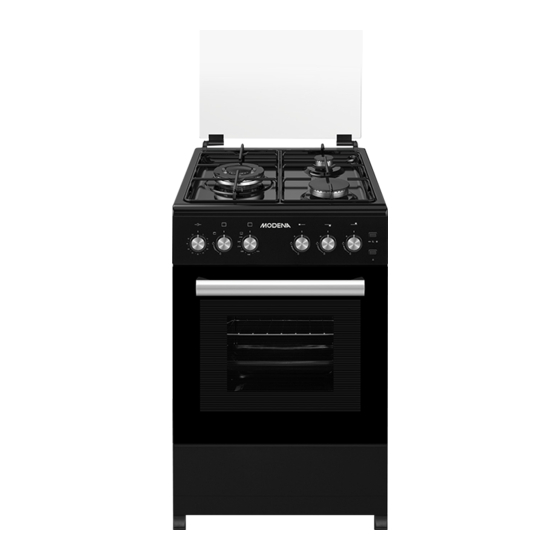

Modena Museo Series User Manual Book

Freestanding cooker
Hide thumbs
Table of Contents

Advertisement

Quick Links

User
Manual Book
Freestanding Cooker
Museo Series
FC 2940 LV, FC 2945 LV
Carrara Series
FC 5942 S, FC 5642 S
FC 5942 LR, FC 5942 L
Fano Series
FC 8940 S, FC 8640
FC 8943 L, FC 8643 L
FC 8533 L
Urbana Series
FC 3952, FC 3955
Prima Series
FC 7643 S, FC 7943 S
FC 7943 W
Cervia Series
FC 9942 S, FC 9642 S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Museo Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Modena Museo Series

Summary of Contents for Modena Museo Series

  • Page 1 User Manual Book Freestanding Cooker Museo Series Urbana Series FC 2940 LV, FC 2945 LV FC 3952, FC 3955 Carrara Series Prima Series FC 5942 S, FC 5642 S FC 7643 S, FC 7943 S FC 5942 LR, FC 5942 L...

  • Page 2: Table Of Contents

    Removing the Glass from the Oven Door Part 6: Troubleshooting Part 7: Precaution Part 8: Specification Appendix 1 Appendix 2 This guide book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com...

  • Page 3: Part 1: Safety Warnings

    PART 1: SAFETY WARNINGS • If you don’t understand the procedure of installing freestanding stove, do not hesitate to contact the MODENA Call Center for installation procedure. • Prepare the required supporting equipments for installation, for example: • LPG cylinder •...

  • Page 4: Part 2: Name Of Parts

    PART 2: NAME OF PARTS FC 2 Series FC 2940 LV FC 2945 LV...

  • Page 5: Fc 3 Series

    FC 3 Series...

  • Page 6: Fc 5 Series

    FC 5 Series...

  • Page 7: Fc 7 Series

    FC 7 Series...

  • Page 8: Fc 8 Series

    FC 8 Series FC 8943 L FC 8643 L...
  • Page 9 FC 8533 L FC 8940 S...

  • Page 10: Fc 9 Series

    FC 8640 FC 9 Series FC 9942 S...

  • Page 11: Part 3: Installation

    FC 9426 S • The picture is a general overview and is not necessarily the same as the product you receive. • Features and completeness depends on the type of product. PART 3: INSTALLATION Installation Open the stove carton box / packaging. Some stoves are equipped with four corner supports.
  • Page 12 Connect the gas hose to the stove and regulator by following the steps specified in Picture 2, and secure both connections using hose clamp. To ensure the safety, hook the attached chain to the wall and make sure the hook is firmly attached to the wall.

  • Page 13: Installation In The Kitchen Cabinet

    Repeat the gas leakage test (points a to c). ATTENTION Gas leak test should be performed by a certified technician or MODENA Service Center official. For gas stoves with gas cylinder compartment secured with cross iron, install the cross iron on the stove, open the gas compartment door on the stove and install the cross iron by inserting the cross iron ends to the supporting holes.
  • Page 14 • The distance from the side wall to the unit, which the heights of the wall exceed the unit, at least 150 mm. • Distance from the cook top surface to the cabinet or the object above the cook top at least 770 mm The distance of the side wall to the unit, which the height of the wall exceed the unit, at least 50 mm.

  • Page 15: Part 4: How To Use

    PART 4: HOW TO USE How To Use The Top Burner How to ignite the top burner With one hand ignition system, ignite the burner simply by pressing and turning the Knob. (Picture 3.a). For automatic ignition, press ignition button with one hand and press the knob with the other hand while rotating counterclockwise until the position of ignition is up.
  • Page 16 Before using your device, make sure that the burner is placed properly according to the picture. How to Use the Top Burner Pay attention and adjust the diameter of burner with the cooking utensil when using a top burner to conserve gas and reduce cooking time.
  • Page 17 How to Function the Oven These buttons are provided to customize the oven settings according to your needs. Programs and Functions will be presented below: Rotisserie / Turnspit Lower and upper heating Turbo heating and fan elements Lamp Lower-upper heating element and Lower heating element and Grill and fan Grill and Rotisserie / Turnspit...
  • Page 18 How To Use Bottom Burner Light the bottom burner. After the burner is lit, leave it for around 10 minutes so that the temperature in the oven is evenly distributed. Open the oven door and put the cooking ingredients on the oven shelf. Adjust required temperature...
  • Page 19 How to Use upper burner / Grill Ignite the upper burner / oven and wait for about 5 minutes until the heat is evenly distributed inside the oven. Put the drip tray on the bottom shelf. Pour water to a height of 0.5 cm on the drip tray to prevent dripping oil from sticking to the drip tray.
  • Page 20 Skewer the meat with the turnspit and hang it in the middle of the oven between two supporting forks (Picture 14). Put the drip tray on the bottom-most shelf. Pour water to a height of .5 cm on the drip tray to prevent dripping oil from sticking to the drip tray.

  • Page 21: Shelf Position

    How to Use the Mechanical Timer Mechanical timer can be found on several models. Follow these instructions to use the mechanical timer: Adjust the cooking time by rotating the mechanical timer knob (Picture 17) After the timer is finished and the knob rotates back to 0, there will be an alarm sound playing.

  • Page 22: Part 5: Maintenance

    PART 5: MAINTENANCE MODENA Gas Stove is specifically designed for long-term usage and does not require complicated maintenance. However, there are several things recommended to maintain the gas stove to ensure the stove quality. Enamel Part Wash the enameled parts with sponge and warm soap water, and dry.

  • Page 23: Part 6: Troubleshooting

    right corner marked by the arrow. Lastly, put the top profile back in place on the door. PART 6: TROUBLESHOOTING Perform inspection on the following matters before contacting our Call Center upon finding any disturbance on your gas stove: Possible Cause Recommended Action Problem •...
  • Page 24 Problem Possible Cause Recommended Action • Make sure that the holes in the burner is not clogged with Gas supply is spillovers. obstructed/interfered. • Clean the burner, including the fire holes. • Inspect the gas amount on the Abnormal fire Insufficient gas regulator’s gas indicator.

  • Page 25: Part 7: Precaution

    • Upon smelling a distinct gas odour, remove the regulator from the gas cylinder immediately. Do not light any fire and contact MODENA Call Center. • Inspect the regulator and gas hose regularly. Make sure that the gas hose is far from any hot surface and not currently bent.

  • Page 26: Part 8: Specification

    PART 8: SPECIFICATION Freestanding Cooker FC 2940 LV FC 2945 LV Color Black Black Gas Bottle Compartment Adjustable Feet 4 Burners 4 Burners Numbers of Burner 3-ring burner (4.0 kW) 3-ring burner (4.0 kW) Large burner (2.8 kW) Large burner (2.8 kW) Burners Composition Medium burner (1.65 Medium burner (1.65...
  • Page 27 Freestanding Cooker Urbana - FC 3952 Urbana – FC 3955 Cabinet Material Stainless Stainless Color Stainless (S) Stainless (S) Crystal Glass Crystal Glass Gas Bottle Storage Adjustable Feet Numbers of Cook Top Burners 5 Gas 5 Gas 3-ring 3-ring Long Long Cook Top Burners Large...
  • Page 28 Freestanding FC 5942 S FC 5642 S FC 5942 L FC 5942 LR Cooker Cabinet Material Stainless Stainless Stainless Metak Color Stainless (S) Stainless (S) Black (L) Black (L) Crystal Glass Crystal Glass Crystal Glass Crystal Glass Gas Bottle Storage Adjustable Feet Numbers of Cook 4 Burners...
  • Page 29 FC 7943 S FC 7643 S FC 7943 W Freestanding Cooker Metal Metal Metal Cabinet Material Stainless (S) Stainless (S) White (W) Color Crystal Glass Crystal Glass Crystal Glass Gas Bottle Storage Adjustable Feet Numbers of Cook Top 4 Burners 4 Burners 4 Burners Burners...
  • Page 30 Freestanding FC 8943 L FC 8643 L FC 8533 L Cooker Color Shiny Black Shiny Black Shiny Black Crystal lid Crystal lid Crystal lid Gas Bottle Compartment Adjustable Feet Numbers of Burner 4 Burners 4 Burners 3 Burners 3-ring burner WOK Burner 3-ring burner (3.5 (3.5...
  • Page 31 Freestanding FC 9942 S FC 9642 S FC 8940 S FC 8640 Cooker Color Stainless Steel Stainless Steel Stainless steel Stainless steel Crystal lid Crystal lid Crystal lid Crystal lid Gas Bottle Compartment Adjustable Feet Numbers of Burner 4 Burners 4 Burners 4 Burner 4 Burner...

  • Page 32: Appendix 1

    APPENDIX 1 The following table is for reference only Type of Food Oven Temperature (°C) Cooking Time (minutes) Cookies in mold White and black flour cake 60-70 Cake – Royal at breed 60-70 Margherita Cake 35-40 Pastry Cake base 16-20 Cake –...
  • Page 33 Type of Food Oven Temperature (°C) Cooking Time (minutes) Game Rabbit 60-90 Deer rib 90-160 Venison 90-180 Vegetables Boiled vegetables 40-45 Fish Grey mubets 40-50 Pizza 20-50 Grilled recipes Minced beef 15-20 Sausage 20-25 Grilled chicken 60-70 Grilled veal 0.8 kg 70-80 Chicken on the spit 60-90...
  • Page 34 09/21...
