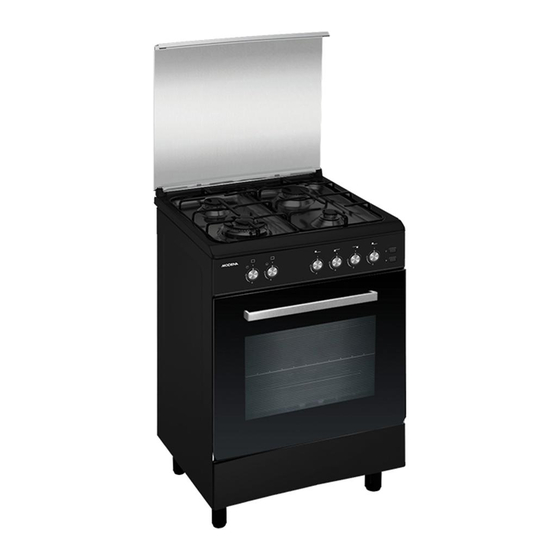

- Page 1 User Manual Book Freestanding Cooker Carrara Series FC 8943 L, FC 8643 L, FC 8940 S...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. Please reach out to us if you...
-
Page 3: Table Of Contents
CONTENTS PAGE • Introduction • Part 1 : Safety Warnings • Part 2 : Name of Parts • Part 3 : Installation • Part 4 : How to Use • Part 5 : Maintenance • Part 6 : Problem & Solution •... -
Page 4: Part 1: Safety Warnings
Part 1: Safety Warnings • If you don’t understand freestanding stove installation procedure, do not hesitate to contact the MODENA Call Center for installation procedure. • Prepare the required supporting equipments for installation, for example: • LPG cylinder • Standard gas supply hose with safety leak equipment. -
Page 5: Part 2: Name Of Parts
Part 2: Name of Parts FC 8943 L FC 8643 L • The picture is a general overview and is not necessarily the same as the product you receive. • Features and completeness depends on the type of the product... -
Page 6: Part 3 : Installation
FC 8940 S and FC 8640 • The picture is a general overview and is not necessarily the same as the product you receive. • Features and completeness depends on the type of product Part 3: Installation Installation 3.A. Open the stove carton box / packaging. Some stoves are equipped with four corner supports. - Page 7 • Repeat the gas leakage test (points a to c). Attention: Gas leak test should be performed by a certified technician or MODENA Service Center official. For gas stoves with gas cylinder compartment secured with cross iron, install the cross iron on the stove, open the gas compartment door on the stove and install the cross iron by inserting the cross iron ends to the supporting holes.
- Page 8 3.B. Installation in the Kitchen Cabinet This product can be installed between the kitchen set, as long as the sorrounding cabinets are resistant to heat over 90°C, including the walls on the side and the back of the unit. • The distance from the side wall to the unit, which the heights of the wall exceed the unit, at least 150 mm. •...
-
Page 9: Part 4: How To Use
Part 4: How to Use 4.A. How to Use the Top burner 4.A.1. How to ignite the top burner With one hand ignition system, ignite the burner simply by pressing and turning the Knob. (Picture 3.a). For automatic ignition, press button ignition with one hand and press knob with... - Page 10 4.A.2. How to Use the Top Burner Pay attention and adjust the diameter of burner with the cooking utensil when using a top burner to conserve gas and reduce cooking time. NOTES: Remember that cooking utensils with wide bottom will cook food faster than those with narrower bottom surface. 4.B.
- Page 11 NOTES : • For unit without oven lamp, observe the cooking process by opening the oven door. Do not do this repeatedly, however, because it will reduce the temperature inside the oven. • Do not put the food directly on the drip pan for cooking. Drip pan can only be used to collect oil drip during the grilling process.
- Page 12 Close the oven door slowly Turn on the griller motor / turnspit by pressing the knob with turnspit icon (Picture 16) After the meat is cooked through, turn off the grill motor / turnspit by turning the knob to off position, and then install the plastic handle on the turnspit before releasing the turnspit from the special socket.
-
Page 13: Part 5: Maintenance
Part 5: Maintenance MODENA Gas Stove is specifically designed for long-term use and does not require complicated maintenance. However, there are several things that we recommend to maintain the quality. ENAMEL Part Wash the enameled parts with sponge and warm soap water, then let dry. Do not use abrasive detergent. -
Page 14: Part 7 : Precaution
▪ Upon smelling a distinct gas odor, remove the regulator from the gas cylinder immediately. Do not light any fire and contact MODENA Call Center. ▪ Inspect the regulator and gas hose regularly. Make sure that the gas hose is far from any hot surface and not currently bent. - Page 15 Bagian 8 : Spesifikasi FREESTANDING Fano – FC 8943 L Fano – FC 8643 L FC 8940 S FC 8640 COOKER Color Shiny Black Shiny Black Stainless Steel Stainless Steel Crystal lid Crystal lid Crystal lid Crystal lid Gas Bottle Compartment Adjustable Feet Numbers of Burner...
-
Page 16: Appendix 1
APPENDIX 1 • The following table is for reference only Oven Temperature (°C) Type of Food Cooking Time (minutes) Cookies in mold White and black flour cake 60-70 Cake – Royal at breed 60-70 Margherita Cake 35-40 Pastry Cake base 16-20 Cake –... -
Page 17: Appendix 2
APPENDIX 2 The following table is for reference only Time (minutes) Grilled Food Side Side Thin beef slice Medium-thickness beef Thin fish or scaleless fish Quite thick fish Sausage Grilled sandwich Small avian... - Page 18 12/20...
