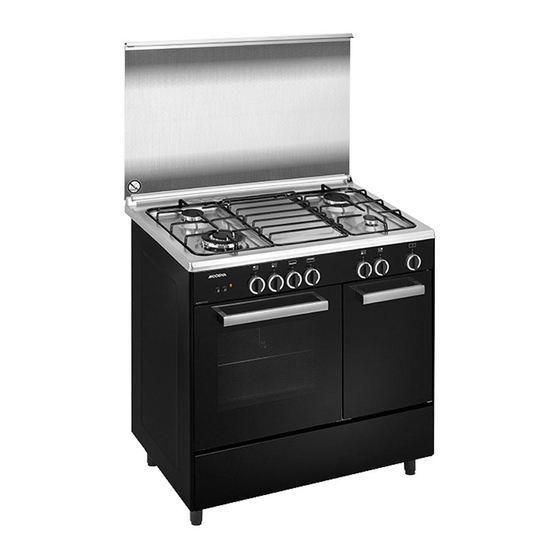

- Page 1 User Manual Book Freestanding Cooker Carrara Series FC 5942 L,FC 5942 LR, FC 5942 S, FC 5642 S...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. Please reach out to us if you...
-
Page 3: Table Of Contents
CONTENTS Page • Introduction • Part 1: Safety Warnings • Part 2: Name of Parts • Part 3: Installation • Part 4: How to Use • Part 5: Maintenance • Part 6: Problem & Solution • Part 7: Precaution • Part 8: Specification •... -
Page 4: Part 1: Safety Warnings
Part 1: Safety Warnings • If you don’t understand the procedure for installing freestanding stove, do not hesitate to contact the MODENA Call Center for installation procedure. • Prepare the required supporting equipments for installation, for example: • LPG cylinder •... -
Page 5: Part 2: Name Of Parts
Part 2: Name of Parts FC 5 Series • The image is a general overview and is not necessarily the same as the product you receive. • Features and completeness depends on the type of products... -
Page 6: Part 3: Installation
• Repeat the gas leak test (points a to c). Attention: Gas leak test should be performed by a certified technician or MODENA Call Center officer. For gas stoves with gas cylinder compartment secured with cross iron, install the cross iron on the stove. Open the gas compartment door on the stove and install the cross iron by inserting the cross iron ends to the support holes. - Page 7 Attention Inspect electrical voltage and make sure the voltage meet the requirements specified on the label. Insert the gas cylinder to the gas cylinder compartment for stoves with gas cylinder compartment. Attention For stoves without gas cylinder compartment, store the gas cylinder near the stove. Install the regulator on the gas cylinder.
-
Page 8: Part 4: How To Use
Part 4: How to Use 4.A. Method for Using Top burner 4.A.1. How to ignite the top burner: With one hand ignition system, to ignite the burner simply by pressing and turning the Knob. (Picture 3.a). For top burner equipped with leak safety device, hold the knob for around 7 seconds after pressing it and the fire is burning in the burner. - Page 9 NOTES: For lower oven burner without automatic thermostat, press the knob and rotate it to the maximum fire setting. Inspect the holes on the bottom of the oven to make sure if the burner is alight. If it’s not yet lit and the match is already put out, repeat the lighting procedure specified in the above point 1.b.
- Page 10 4.B.4. How to use the upper burner / oven For FC 5xxx series does not require this knob protector, because it was "Closed door grilling system", the oven door can be closed when using the grill burner. Ignite the upper burner / oven and wait for around 5 minutes until the heat is evenly distributed in the oven.
-
Page 11: Part 5: Maintenance
°C °F Part 5: Maintenance MODENA Gas Stove is specifically designed for long-term usage and does not require complicated maintenance. However, there are several things recommended to maintain the gas stove to ensure the stove quality. ENAMEL Part Wash the enameled parts with sponge and warm soap water, and dry. Do not use abrasive detergent. -
Page 12: Part 6: Problem & Solution
Do not close the stove cover when the burner is still hot and the kitchen utensils still installed on the grid. • Upon smelling a distinct gas odor, remove the regulator from the gas cylinder immediately. Do not light any fire and contact MODENA Call Center. - Page 13 • Inspect the regulator and gas hose regularly. Make sure that the gas hose is far from any hot surface and not currently bent. Also, make sure that the external surface of regulator and hose is not cracked or damaged, which may result in gas leak.
-
Page 14: Part 8: Specification
Part 8 : Spesification Carrara – sFC 5642 FREESTANDING Carrara - FC 5942 S Carrara - FC 5942 L Carrara - FC 5942 COOKER Cabinet Material Stainless Stainless Stainless Stainless Color Stainless (S) Stainless (S) Black (L) Black (L) Crystal Glass Crystal Glass Crystal Glass Crystal Glass... -
Page 15: Appendix 1
APPENDIX 1 • The following table is for reference only Oven Temperature (°C) Type of Food Cooking Time (minutes) Cookies in mold White and black flour cake 60-70 Cake – Royal at breed 60-70 Margherita Cake 35-40 Pastry Cake base 16-20 Cake –... - Page 16 LAMPIRAN 2 The following table is for reference only Time (minutes) Grilled Food Side Side Thin beef slice Medium-thickness beef Thin fish or scaleless fish Quite thick fish Sausage Grilled sandwich Small avian...
- Page 17 12/20...
