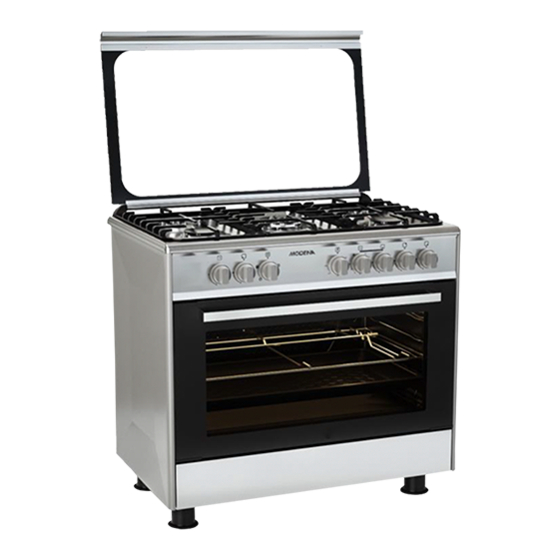

- Page 1 User Manual Book Freestanding Cooker FC 7645 SGM FC 7955 SDM...
-
Page 2: Table Of Contents
Gas Connection Connection Schemes For LPG And NG Installation In The Kitchen Cabinet FC 7955 SDM Part 4: Name of Parts FC 7645 SGM Part 5: How To Use Using Cook Top Burner Using Gas Oven Control for Oven Burner... -
Page 3: Part 1: Safety Warnings
PART 1: SAFETY WARNINGS • WARNING: This appliance must be earthed! • Please find required information as power and ratings for your cooker from rating label is which located behind of appliance. • Ensure that the electricity supply is turned OFF before installing your appliance. - Page 4 • Do not use cooker in potentially explosive atmospheres. • If the current rate of the fuse in your installation is less than 16 Amp, have a qualified electrician fit A 16 Amp fuse. • When the oven is being used, some parts may become hot; children should be kept away and supervised at all times.
- Page 5 risk of danger even if your appliance is not in use. • Bread may catch fire if the toasting time is too long. Close supervision is necessary during toasting. • For cleaning fan guard panel (optional) the cooker must be switched off before removing the guard and after cleaning, the guard must be replaced in correct position into the cooker.
-
Page 6: Part 2: Technical Specification
PART 2: TECHNICAL SPECIFICATION Spesification FC 7645 SGM FC 7955 S Cabinet Material Metal Metal Color Stainless (S) Stainless (S) Crystal Glass Crystal Glass Gas Type & Pressure LPG G30-30 mbar Voltage 220 – 240 V Frequency 50 – 60 Hz... -
Page 7: Part 3: Installation Process
The MODENA is not responsible for damages that will arise because of the appliance not be connected to an earth system. -
Page 8: Electronic Connection Schemes
Electronic Connection Schemes WARNING • This appliance must only be installed in a permanently ventilated room in compliance with the applicable regulations. • This appliance is not connected to a combustion products evacuation device. • It shall be installed and connected in accordance with current installation regulations. -
Page 9: Gas Connection
The use of a gas cooking appliance results in production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep naturel ventilation holes open or install a mechanical ventilation device (mechanical extractor hood) Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present. -
Page 10: Connection Schemes For Lpg And Ng
Do not make gas hose and electrical cable of your cooker go through the heated areas, especially through the behind of the cooker. Do not move gas connected cooker. Since the forcing shall loosen the hose, gas leakage may occur. Please use flexible hose for gas connection. -
Page 11: Installation In The Kitchen Cabinet
Installation In The Kitchen Cabinet • In order to make it more secured please use the chain to attach the oven to the wall and make sure that the chain is taut and the oven does not wobble on the floor. The distance between the back of the oven to the wall should be at least 4 cm. -
Page 12: Fc 7955 Sdm
PART 4: NAME OF PARTS FC 7955 SDM Metal part of Top lid Metal part of oven door Top lid Bottom cover Cook top Cavity Command panel Oven lamp Command knobs Top shelve Oven grid Middle shelve Oven tray Bottom shelve Oven door Symbols of functions on cooker Oven burner... -
Page 13: Fc 7645 Sgm
FC 7645 SGM Top lid Oven door Cooktop Command knobs Command panel Bottom shelve Wire grid Middle down shelve Tray Middle top shelve Cavity Top shelve Bottom cover Door handle Symbols of functions on cooker Oven burner Ignition Lamp Grill burner... -
Page 14: Part 5: How To Use
PART 5: HOW TO USE Using Cook Top Burner Which burner will be used with which corresponding knob is defined by signs on the knob frame or on command panel. The gas burner controlled by each one of the knobs is shown by a symbol. -
Page 15: Using Gas Oven
Before operating your hob please make sure that the burner caps are well positioned. The right placement of the burner caps are shown as below. Burner lid Burner Safety device Electronic Lighting Device Using Gas Oven: Which burner will be used with which corresponding knob is defined by signs on the knob frame or on command panel. -
Page 16: Part 6: Problem And Solution
PART 6: PROBLEM AND SOLUTION If The Appliance Does Not Work Electrical Equipment Problem Possible Causes Suggested Actions Check the general fuse box to see if the automatic fuse Oven is Not Working Fuse malfunction or or the breakers are thrown automatic fuse blown off. -
Page 17: Gas Equipment
Check the general fuse box There is no any current to see if the automatic fuse or the breakers are thrown off. If the problem repeats, call technical service to remove the reason of the fuse blowing. Gas Equipment Problems Possible Causes Suggested Actions Does not spark ignition. -
Page 18: Using Turnspit
If the problem is not solved: Cut the electricity connection of unit (turn off the circuit breaker). Call the MODENA, its services agent or similar qualified persons. WARNINGS Do not try to repair the device yourself. There are no any parts inside this product may be repaired by customer. -
Page 19: Part 7: Maintanance And Cleaning
PART 7: MAINTANANCE AND CLEANING 1. Disconnect the plug supplying electricity for the oven from the socket. 2. While oven is operating or shortly after it starts operating, it is extremely hot. You must avoid touching from heating elements. 3. Never clean the interior part, panel, lid, trays and all other parts of the oven by the tools like hard brush, cleaning mesh or knife. -
Page 20: Nozzle Change Operation For Cooktop Gas Burners
chancing the inner lamp. 3. Change with a 15-25W, 300 C˚ temperature resistant lamp. Nozzle Change Operation for Cooktop Gas Burners: First of all please close all gas supply of cooker. Please use driver with special head for removed and install nozzle. Please remove nozzle from burner with special nozzle driver and install new nozzle. -
Page 21: Reduced Flame Adjustment
3. After change close nozzle hole by finger, open gas valve and check gas leakage by soap foam from round of nozzle-body connection surface. 4. Then re-install nozzle body to the burner by screw Reduced Flame Adjustment: In order to adjust your cooker to the gas type, make the adjustment for reduced flame carefully by turning with a small screwdriver as shown below on the screw in the middle or near of the gas valve as well as nozzle changes.
