Modena Prima Series User Manual Book

Freestanding cooker
Hide thumbs Also See for Prima Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User
Manual Book

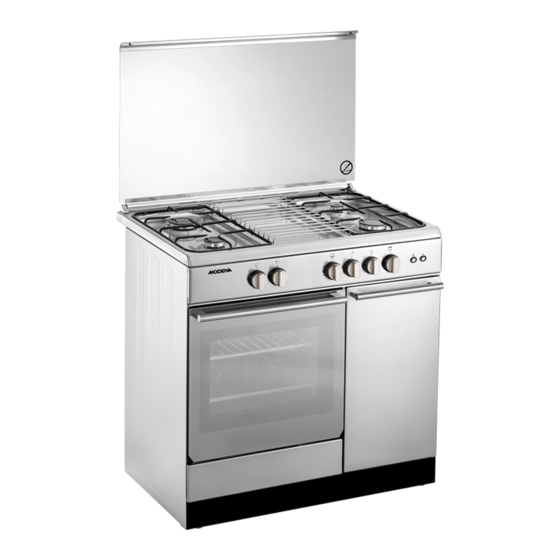

Freestanding Cooker
Prima Series
FC 7943 S, FC 7943 W, FC 7643 S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prima Series and is the answer not in the manual?

Questions and answers

Related Manuals for Modena Prima Series

Summary of Contents for Modena Prima Series

  • Page 1 User Manual Book Freestanding Cooker Prima Series FC 7943 S, FC 7943 W, FC 7643 S...
  • Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. Please reach out to us if you...

  • Page 3: Table Of Contents

    CONTENTS Page • Introduction • Part 1 : Safety Warnings • Part 2 : Name of Parts • Part 3 : Installation • Part 4 : How to Use • Part 5 : Maintenance • Part 6 : Problem & Solution •...

  • Page 4: Part 1: Safety Warnings

    Part 1: Safety Warnings • If you don’t understand the procedure of installing freestanding stove, do not hesitate to contact the MODENA Service Center for installation procedure. • Prepare the required supporting equipments for installation, for example: • LPG cylinder •...

  • Page 5: Part 2: Name Of Parts

    Part 2: Name of Parts FC 7 Series • The image is a general overview and is not necessarily the same as the product you receive. • Features and completeness depends on the type of product...

  • Page 6: Part 3: Installation

    Repeat the gas leakage test (points a to c). Attention Gas leakage test should be performed by a certified technician or MODENA Service Center officer. For gas stoves with gas cylinder compartment secured with cross iron, install the cross iron on the stove. Open the gas compartment door on the stove and install the cross iron by inserting the cross iron ends to the support holes.

  • Page 7: Part 4: How To Use

    For stoves without gas cylinder compartment, store the gas cylinder near the stove. Install the regulator on the gas cylinder. Stove is ready to use. 3.B Installation in the Kitchen Cabinet This product can be installed between the kitchen set, as long as the part of the kitchen cabinet which is in contact with the unit must be heat resistant to high temperatures over 90°...
  • Page 8 To intensify or reduce the flame in the burner, turn the knob t face the small flame or big flame icons (Picture 5). To put out the flame on the burner, rotate the knob until it faces the extinguished flame icon (Picture 6). Procedure for Using Top burner Pay attention and adjust the diameter of burner with the cooking utensil when using a top burner to conserve gas and reduce cooking time.
  • Page 9 NOTES: For oven knob without attained temperature indicator (Picture 9.b), refer to the following table to identify the attainable temperature. Attainable temperature table on Oven Knob / Panel Indicator Number on Panel / Knob Attainable Temperature(°C) How to ignite the top burner (grill) without automatic lighter Open the oven door Ignite the match with your left hand, and bring it closer to the top burner / grill, with your right hand pressing the oven burner knob,...
  • Page 10 How to use the upper burner / oven For FC 7xxx, Install knob protector as stated in picture 13. Ignite the upper burner / grill and wait for around 5 minutes until the heat is evenly distributed in the oven. Put the drip tray on the bottom-most shelf.

  • Page 11: Part 5: Maintenance

    °C °F Part 5: Maintenance MODENA Gas Stove is specifically designed for long-term usage and does not require complicated maintenance. However, there are several things recommended to maintain the gas stove to ensure the stove quality. ENAMEL Part Wash the enameled parts with sponge and warm soap water, and dry. Do not use abrasive detergent.

  • Page 12: Part 6: Problem & Solution

    Do not close the stove cover when the burner is still hot and the kitchen utensils still installed on the grid. • Upon smelling a distinct gas odor, remove the regulator from the gas cylinder immediately. Do not light any fire and contact MODENA Service Center. •...
  • Page 13 • For some model, protective Knob MUST installed when using grill and combination function (upper and bottom heating together) . Ensure appropriate and correct installation. Losses due to improper use are not the responsibility of the manufacturer. • Always remember that parts of the stove and other objects around it will be hot for a certain period of time (around 30 minutes) after you shut down the stove.

  • Page 14: Part 8 : Specification

    Part 8 : Spesification Prima – FC 7943 S Prima – FC 7643 S Prima – FC 7943 W FREESTANDING COOKER Cabinet Material Metal Metal Metal Color Stainless (S) Stainless (S) White (W) Crystal Glass Crystal Glass Crystal Glass Gas Bottle Storage Adjustable Feet Numbers of Cook Top Burners 4 Burners (Gas)

  • Page 15: Appendix 1

    APPENDIX 1 • The following table is for reference only Oven Temperature Type of Food Cooking Time (minutes) (°C) Cookies in mold White and black flour cake 60-70 Cake – Royal at breed 60-70 Margherita Cake 35-40 Pastry Cake base 16-20 Cake –...
  • Page 16 LAMPIRAN 2 • The following table is for reference only Time (minutes) Grilled Food Side Side Thin beef slice Medium-thickness beef Thin fish or scaleless fish Quite thick fish Sausage Grilled sandwich Small avian...
  • Page 17 12/20...

This manual is also suitable for:

Fc 7943 sFc 7943 wFc 7643 s
