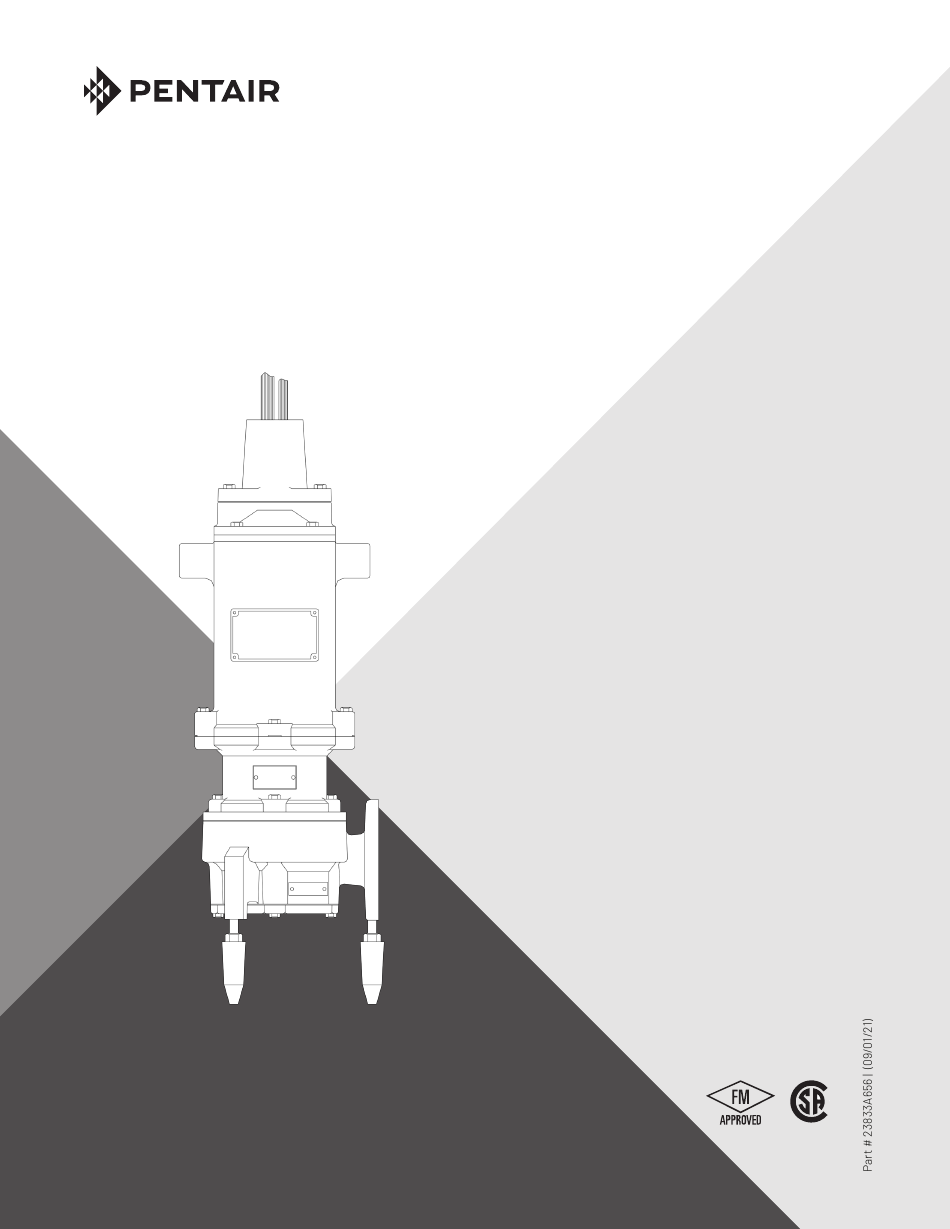

- Page 1 MYERS SUBMERSIBLE GRINDER PUMPS MODELS WGX30/50, WGX30H/50H/75H, VSX30/50 AND VHX30/50/75 Used in Hazardous Locations Class I, Division 1, Groups C & D For use with product built with Regal motor. INSTALLATION AND OPERATION MANUAL pentair.com ©2021. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ....................................3 Installation and Operation ..................................4 Wiring Diagrams ....................................... 6 Repair Parts Index ....................................9 Troubleshooting ......................................14 V and VR Series Limited Warranty ................................18 Standard Limited Warranty ..................................19 NOTE! To the installer: Please make sure you provide this manual to the owner of the equipment or to the responsible party who maintains the system. -
Page 3: Safety Information
SAFETY INFORMATION READ AND FOLLOW SAFETY INSTRUCTIONS! PUMPS Pump builds up heat and pressure during operation; allow This is the safety alert symbol. When you see this symbol time for pump to cool before handling or servicing. on your pump or in this manual, look for one of the following Only qualified personnel should install, operate or repair ... -
Page 4: Installation And Operation
INSTALLATION AND OPERATION OIL FILLED MOTOR GENERAL INFORMATION The motor chamber and seal chamber are dielectric oil-filled PUMP MODELS for good heat transfer and lubrication of bearings and seals. These instructions cover the installation and service of the The motor requires no other lubrication. Oil level in the motor Myers pumps as listed on the front cover. - Page 5 INSTALLATION AND OPERATIONS On the Myers hazardous location control panels the seal leak LEVEL SENSING CONTROLS test switch tests the seal leak circuit continuity. When pushed, Intrinsically safe-type float controls are recommended for the seal leak test bulb should light. If the test bulb does not light, all applications and required for hazardous location service.
- Page 6 INSTALLATION AND OPERATIONS DISASSEMBLY OF STATIONARY CUTTER PLATE AND ROTATING CUTTER VS AND VH SERIES Replace retaining washer and screw in the end of the shaft. Remove retaining washer and screw from end of Be sure screw is tight. A screwdriver can be used to hold the shaft.
-
Page 7: Wiring Diagrams
WIRING DIAGRAM POWER CORD CONTROL CORD POTTING RESIN SPLICES GROUND SCREW HEAT SENSOR MOTOR ON STATOR STATOR PROBE TEST ELECTRODE RESISTOR 230 VOLT – SINGLE PHASE Part # 23833A656 (09-01-21) - Page 8 WIRING DIAGRAM Part # 23833A656 (09-01-21)
-
Page 9: Repair Parts Index
35' CORD ASSEMBLY 10-4 – WGX30(H), WGX50(H) 35' CORD ASSEMBLY 8-4 SOOW – WGX30(H), 22569B632 WGX50(H), WGX75H 22569B700 35' CORD ASSEMBLY 8-4 W – WGX30, WGX50(H) 05876A114 RING, O; 7 OD x 6-3/4 ID x 1/8 05876A123 RING, O; 4-7/8 OD x 4-5/8 ID x 1/8 06107A015 WASHER;... - Page 10 REPAIR PARTS INDEX WGX30/WGX50 WGX30H/WGX50H/WGX75H WET END PARTS CHARTS ITEM DESCRIPTION ENG. NO. QTY. ITEM DESCRIPTION ENG. NO. QTY. CASE; VOLUTE 22582D000 CASE; VOLUTE 5 HP 22639D000 SCREW; MACH FLT HD HEX SKT SST 5/16-18 SCREW; MACH FLT HD HEX SKT SST 5/16-18...
- Page 11 08565A022 08565A022 08565A022 08565A022 08565A022 08565A022 08565A022 08565A022 BEARING 08565A023 08565A023 08565A023 08565A023 08565A023 08565A023 08565A023 08565A023 WGX30/ WGX50 3/5 HP 3/5 HP 3/5 HP 3/5 HP 2 POLE 230/1 200/3 230-460/3 575/3 STATOR 22574C200 22574C201 22574C202 22574C204 ROTOR 22572C103...
- Page 12 REPAIR PARTS INDEX VSX30/50 AND VHX30/50/75 WET END PARTS CHART ITEM DESCRIPTION ENG. NO. QTY. CASE; VOLUTE V SERIES GR 56 FRAME 22639D001 SCREW; MACH FLT HD HEX SKT SST 07597A021 RETAINER; IMPELLER 5HP GRINDER 22585A000 CUTTER; ROTATING V SERIES 56 FRAME 28183B000 PLATE;...
- Page 13 REPAIR PARTS INDEX VHX30/ VHX50/ VHX75 3 HP 3 HP 3 HP 3 HP 5/7.5 HP 5/7.5 HP 5/7.5 HP 5/7.5 HP 2 POLE 230/1 200/3 230-460/3 575/1 230/1 200/3 230-460/3 575/1 STATOR 22574C210 22574C211 22574C212 22574C214 22574C200 22574C201 22574C202 22574C204 ROTOR/SHAFT 28208C101...
-
Page 14: Troubleshooting
TROUBLESHOOTING CHECK LIST IF PUMP DOES NOT OPERATE PROPERLY Resistance of Windings Every motor winding has a fixed Checking for Moisture in Motor Use an ohm - meter or a megger resistance. The windings must check close to specification and set on highest scale. Readings on the large power cord values. - Page 15 PAGE LEFT BLANK INTENTIONALLY Part # 23833A656 (09-01-21)
- Page 16 PAGE LEFT BLANK INTENTIONALLY Part # 23833A656 (09-01-21)
- Page 17 PAGE LEFT BLANK INTENTIONALLY Part # 23833A656 (09-01-21)
-
Page 18: And Vr Series Limited Warranty
During the warranty period and subject to the conditions set forth, Pentair Myers, at its discretion, will repair or replace to the original user, the parts that prove defective in materials and workmanship. Pentair Myers reserves the right to change or improve its products or any portions thereof without being obligated to provide such a change or improvement for prior sold and/or shipped units. -
Page 19: Standard Limited Warranty
Warranty is effective only if Pentair Myers authorized control panels are used. All seal fail and heat sensing devices must be hooked up, functional and monitored or this warranty will be void. Pentair Myers will cover only the lower seal and labor thereof for all dual seal pumps. under no circumstance will Pentair Myers be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the factory or an authorized Pentair Myers service facility. - Page 20 Ph: 800.363.7867 All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice. Pentair is an equal opportunity employer.
