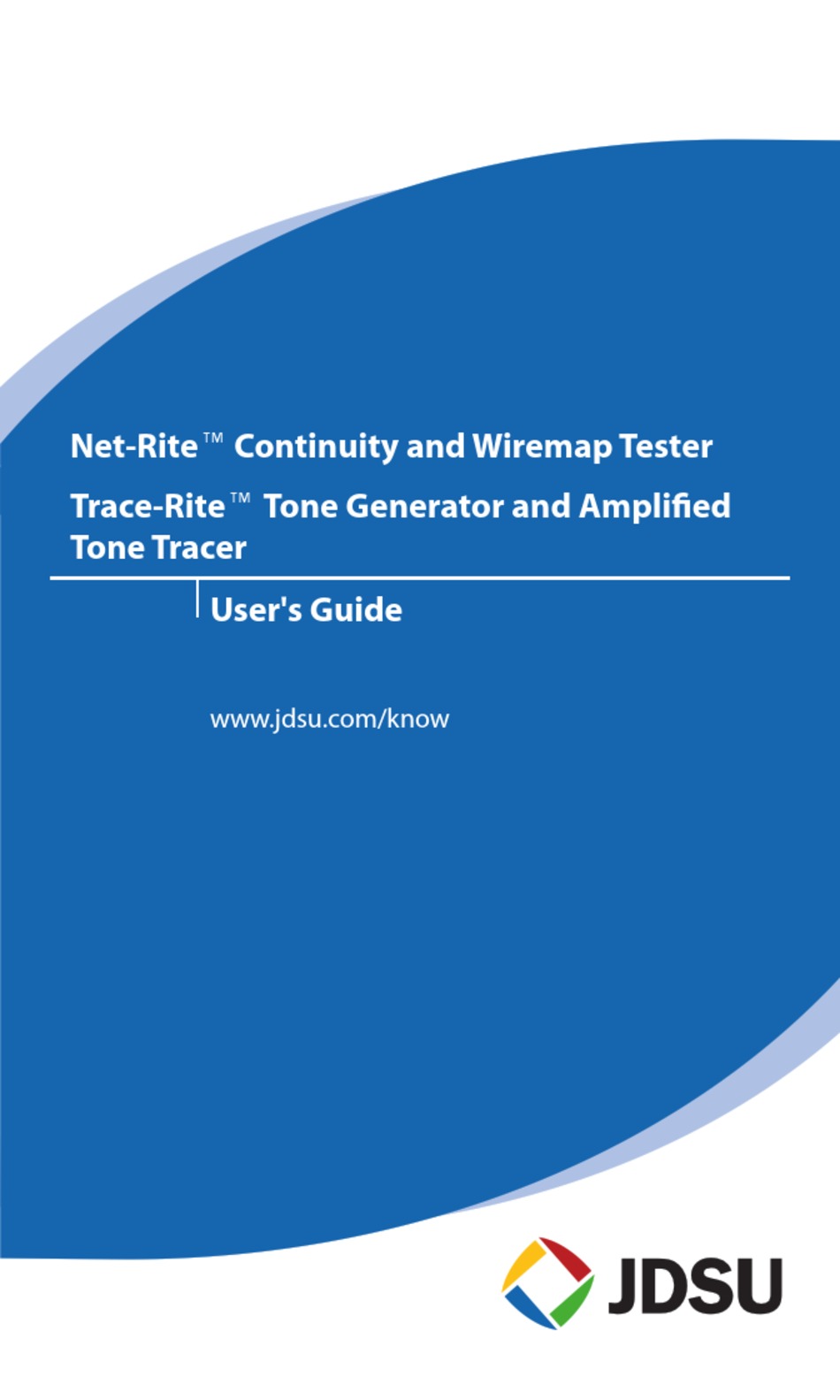

- Page 1 Net-Ritef Continuity and Wiremap Tester Trace-Ritef Tone Generator and Amplified Tone Tracer User's Guide www.jdsu.com/know...
- Page 3 Voltage Probe Tracer/Power Button Volume Up/Down Indicator Power/Tone Type Switch RJ11...
- Page 4 RJ11 Screen Remote RJ11...
- Page 5 Warning! Do not attach to AC power, this may damage the Net-Rite™ and the Trace-Rite™ generator and could cause a safety hazard for the user. Caution! Improperly crimped, damaged or un-crimped plugs can damage the jack on the Net- Rite™ and Trace-Rite™. Inspect plugs for proper termination and crimping before inserting into the tester.
- Page 6 Features Net-Rite Features ™ • Auto-on when sensing the remote or a short • Auto-off when the remote is disconnected to conserve battery life • Ergonomic shape, with soft edges • When not in use, the remote stores in the bottom of the main unit Trace-Rite Features ™...
- Page 7 Instructions for Use To Wiremap a Cable Using the RJ45 jacks, connect Net-Rite™ main unit and remote to the cable you want to test. An icon and the wiremap are always displayed. Net-Rite™ reports: PASS when the cable pins are properly connected per T568A/B and there are no other faults, or an error icon when it does not...

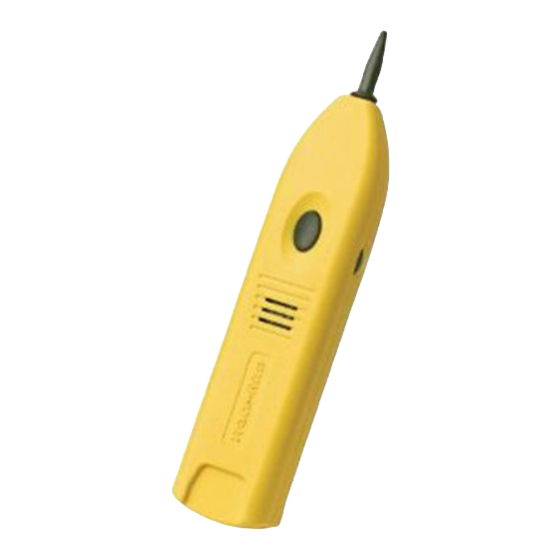

- Page 8 Adjust volume control on the side of the Trace-Rite™ to a comfortable level. If the signal is very loud when near the cable, adjust the volume to avoid overloading the Trace-Rite™. When overloaded, small increases or decreases in the signal at the tip cannot be heard.
- Page 9 Interpreting Wiremap Errors Miswire—One or more pins or pairs are not connected to the correct pins at the other end of the cable, i.e., one-to-one—pin 1 to pin 1, pin to pin , etc. Split—A split pair is an error in the twisting of the wires together within the cable.
- Page 10 Reverse—A reverse (Rev) pair is a special case of a Miswire, and both icons will be flashing. The wires are connected to the correct pair of pins, but the two leads are reversed. Voltage—When voltage is detected on any of the pins, lightning bolt icons flash. Disconnect from the cable as soon as possible.
- Page 11 GREY=FLASHING Passing Shielded Cable 4-5 Pair Open 1- Short -4 & 4-5 Split Pair & Miswired...
-
Page 12: Battery Installation
Battery Installation Net-Rite ™ Using a #1 Phillips screwdriver, unscrew and remove the battery door. Remove old cell batteries. Rapping the case against the palm of the hand will help dislodge the batteries. Install 4 new LR44 cell batteries, orienting the plus end of battery with the plus symbol on case. - Page 13 Trace-Rite ™ Remove the screw at the back of the Tone Generator or Amplified Probe with a #1 Philips screwdriver and remove battery door. Remove old coin batteries. Rapping the case against the palm of the hand will help dislodge batteries. Install 4 new LR44 cell batteries being careful to orient plus end of battery with plus symbol on case.
- Page 14 To Replace the Probe Tip Using a #1 Phillips screwdriver, remove the screw on the back of the Trace-Rite™ nearest to the probe. Pull the tip out of the top. Push the new tip into the top. Replace the screw and tighten, being careful not to over tighten.
- Page 15 Models, options & accessories Ordering Description number Net-Rite continuity and wiremap tester and Trace-Rite KP60 tone generator with onboard probe kit Net-Rite continuity and TP50 wiremap tester Trace-Rite tone generator with TT50 on-board probe...
-
Page 16: Physical Dimensions
Net-Rite™ Specifications Physical Dimensions Size: 11.3 x 5 x 2.7 cm (4.5 x 2 x 1.1 inches) Weight: 100 grams (3.5 oz.), with battery and remote Environmental Operating temperature: 0 to 50˚C (32 to 122˚F) Storage temperature: –10 to 60˚C (14 to 140˚F Humidity: 10% to 90%, non-condensing Power Requirements Four (4) LR44 button cells (6 volts) - Page 17 Trace-Rite™ Specifications Physical Dimensions Size: 20.6 x 4.45 x 3.0 cm (8.1 x 1.75 x 1.2 inches) Weight: 113 grams (4 ounces) Environmental Operating temperature: 0 to 50 C (32 to 122 Storage temperature: -20 to 60 C (-4 to 140 Humidity: 10% to 90%, non-condensing Power Requirements Four (4) LR44 button cells (6 volts)
-
Page 18: Customer Services
Customer Services This section provides a description of customer services available through JDSU (including returns policies and procedures) and warranty information. Customer Service (Standard Services) Customer Service accompanies the sale of every JDSU product. Customer Service services include: • Technical Assistance (Business Hour) •... - Page 19 manufactured equipment. This ensures products meet all published specifications, including any applicable product updates. Calibration — JDSU’s calibration methods are ISO approved and based on national standards. Factory Upgrades — Any unit returned for a hardware feature enhancement will also receive applicable product updates and will be thoroughly tested, ensuring peak performance of the complete feature set.
- Page 20 • A detailed description of the problem or service requested. • The name and telephone number of the person to contact regarding questions about the repair. • The return authorization (RA) number (US customers), or reference number (European Customers). If possible, return the equipment using the original shipping container and material.
-
Page 21: Warranty Information
Warranty Information JDSU guarantees that its products will be free of all defects in material and workmanship. This warranty extends for the period of 1 months for test instruments and months for cables from date of manufacture or purchase (proof of purchase required). - Page 22 is reused, recycled, or disposed of in an environmentally friendly manner, and in compliance with all applicable national and international waste legislation. It is the responsibility of the equipment owner to return the equipment to JDSU for appropriate disposal. If the equipment was imported by a reseller whose name or logo is marked on the equipment, then the owner should return the equipment...
- Page 24 www.jdsu.com/know Document Information Doc. # TU9891 Revision 500, 04-08 English...
