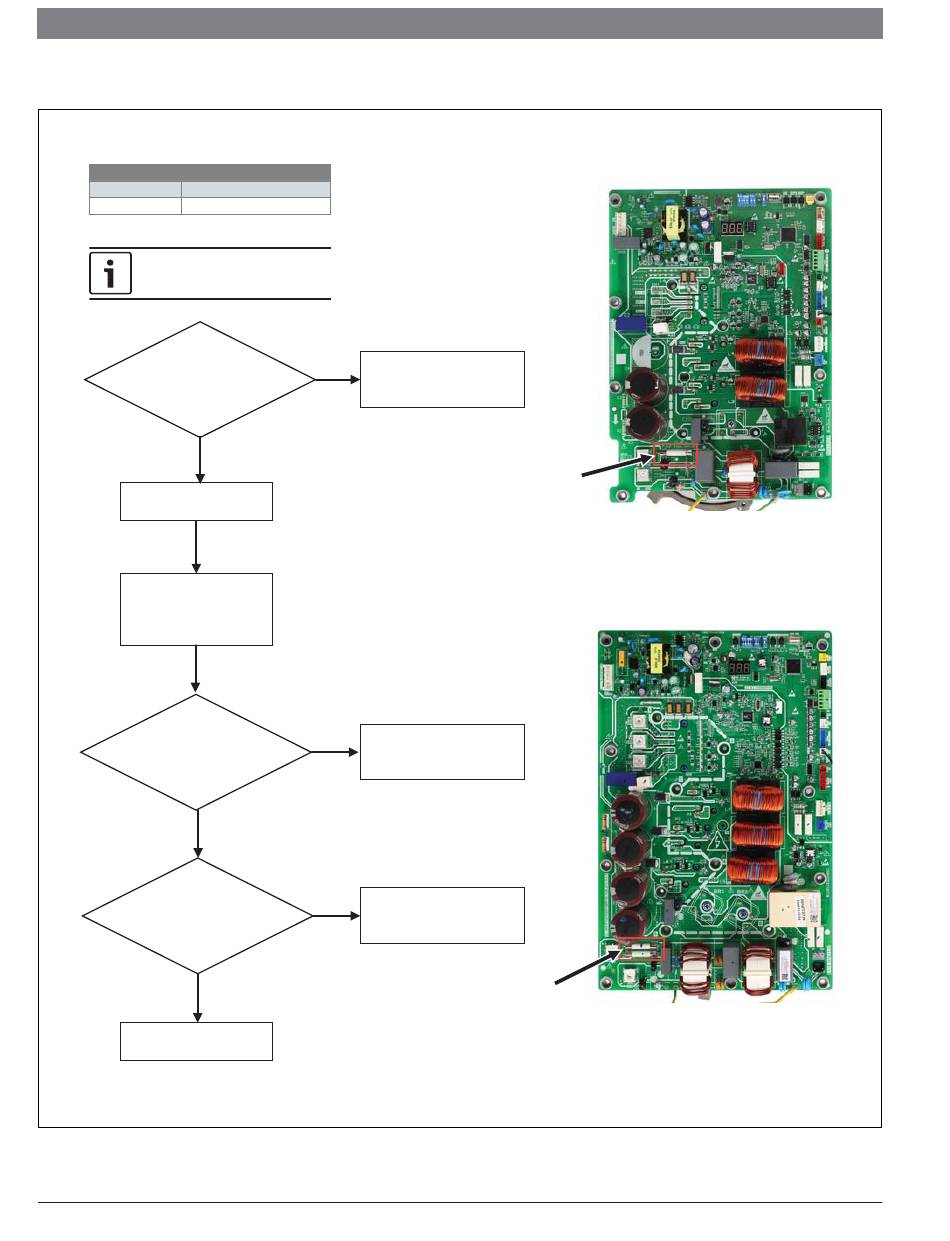

13.10 Outdoor Board Fuse

Outdoor Board Fuse
Fuse Type
Function Protect control board
The System will not work if this fuse is
blown.
Did the fuse blow
on the outdoor board?
Yes
Power off unit
Replace control board,
refer to instructions
included with spare board
Did the ODU motor
fail? 1
No
Did the compressor
fail? 2
No
Power off unit
Figure 47
1) See Section 13.6
2) See Section 13.8
Bosch Thermotechnology Corp. | 07.2021
250V/30A
No
No service required
Yes
Replace ODU motor
Yes
Replace compressor
Fuse
Location
IDS 2.0 3T ODU board
Fuse
Location
IDS 2.0 5T ODU board
