Service Manual

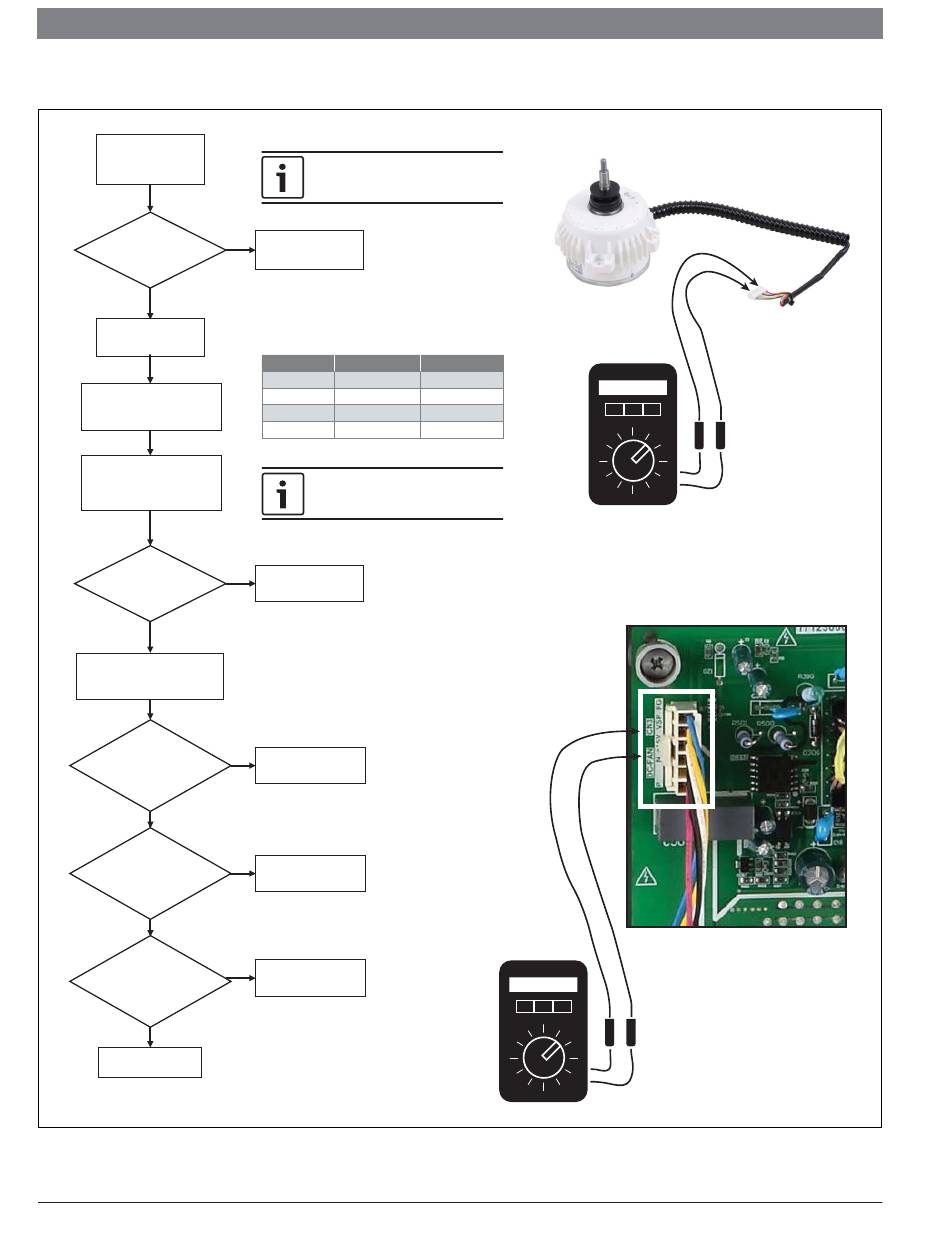

13.6 Outdoor Fan Motor
Restart system, give
system a call for
heating/cooling
Does ODU motor
run properly?
No
Power off the unit at
breaker, wait 3 minutes
Unplug the wiring harness
for the outdoor blower motor
from the control board at CN3.
Measure the resistance
between the pins on the wiring
harness (refer to Table 1)
Do the
resistance values meet the
requirement from
Table 1?
Yes
Re-connect motor wiring
harness at CN3, power on unit
and give call for heating/cooling
Yes
Measure
DC voltage between
P&N pins (Red & Black wire),
is the voltage 370-
385V(DC)?
Yes
Measure
DC voltage between
+15V&N pins (White & Black
wire), is the voltage 14-
18V(DC)?
Yes
Measure
DC voltage between
VSP&N pins (Yellow & Black
wire), is the voltage 1.9-
5.1V(DC)?
Yes
Restart system
Figure 43
Bosch Thermotechnology Corp. | 07.2021
ODU fan should run any time there is a call
for cooling/heating.
Yes
No service required
Pins
Wire
P-N
Red-Black
+15V-N
White-Black
Vsp-N
Yellow-Black
FG –N
Blue-Black
The normal resistance should be within
+/- 10%.
No
Replace ODU motor
No
Replace control board
No
Replace control board
No
Replace control board
Value
0.603MΩ
46.0KΩ
40.0KΩ
≥1MΩ
Bosch IDS 2.0 | 69
Data subject to change
