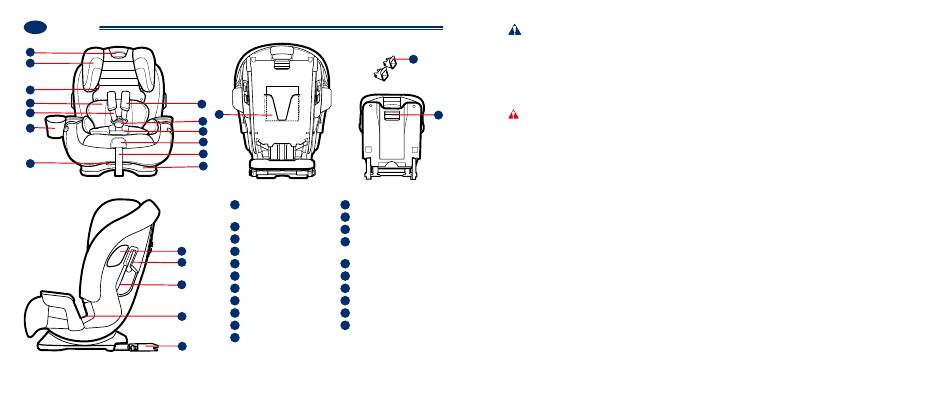

1 Headrest/Harness 12 Harness Adjustment Strap
Adjustment Handle
Seat Base
13
2 Headrest
14 Side Impact Shield
Booster Shoulder Belt Guide
3
15 Forward-Facing Shoulder Belt
Body Pillow Lock-off
4
5 Harness Straps 16 Forward-Facing Belt Path
6 Cup Holder Booster Lap Belt Path
17
Recline Handle ISOcatch Connector
7 18
8 Harness Covers 19 Instruction Manual Storage
9 Buckle 20 ISOcatch Guides
Buckle Cover ISOcatch Adjustment Button
10 21
11 Harness Release Lever
(under flap)
9
WARNING
Read this Owner's Manual completely BEFORE first use of your
child restraint system! Keep this Owner's Manual always with
20
the child restraint system. Provisions are made on the rear of
the seat shell. Plan to spend some time getting to know your
child restraint system-time well spent when you consider that
your baby's safety depends on it. Pay special attention to the
warnings printed in red.
WARNING to parents and other users:
21
DO NOT INSTALL OR USE THIS CHILD RESTRAINT UNTIL
YOU READ AND UNDERSTAND THE INSTRUCTIONS IN THIS
MANUAL AND IN YOUR VEHICLE OWNER'S MANUAL.
Safety Requirements
European Safety Standards specify the construction and
performance of your child restraint system as well as its
components, requirements for fitting and use, instructions and
markings. Your child restraint system has been approved to
European Standard ECE R44.04
An approval number is attached to the rear of the seat and must
not be removed.
NOTICE
This child restraint is approved to Regulation NO. 44, 04 series of
amendments. This child restraint can be installed using a 3 point
retractable adult seat belt approved to UN/ECE Regulation No. 16
or other equivalent standards.
Important safety points
Do take care so that the rigid items and plastic parts of the child
restraint system must be so located and installed so that it is not
liable to become trapped by a moveable seat or in a door of the
vehicle.
DO NOT ever take a baby out of the child restraint system for any
reason while vehicle is in motion. If your baby needs attention,
find a safe place and pull off the road.
Do store your child restraint system in a safe place when not
being used. Avoid putting heavy things on top of it.
Do always check the security of your child restraint system before
each journey.
Do regularly check all child restraints for wear and tear.
Do not leave children unattended in your car, even for the
shortest time.
Do not leave luggage and other objects unsecured in the car. If
the car has to stop suddenly, these objects will continue moving
and can cause serious injuries. The larger the object, the greater
the risk.
Do not make unauthorized alterations or additions to any part of
the seat or child restraint system belt.
Do not use accessories or parts supplied by other manufacturers.
The function of the child restraint system could be altered,
resulting in serious injury or death.
After an accident the child restraint system must be replaced. You
may not see any damage, but after a serious crash a child restraint
system can be too weak to protect again.
Please contact child restraint manufacturer in the event of any
questions.
Do not use load bearing points other than those specified by
restraint manufacturer in the instructions or on the restraint body.
! IT IS MOST IMPORTANT that the child restraint is correctly
installed with the vehicle belt correctly routed according to the
manufacturer's instructions.
Always ensure the vehicle belt and harness straps are not twisted.
