Technaxx
* User Manual

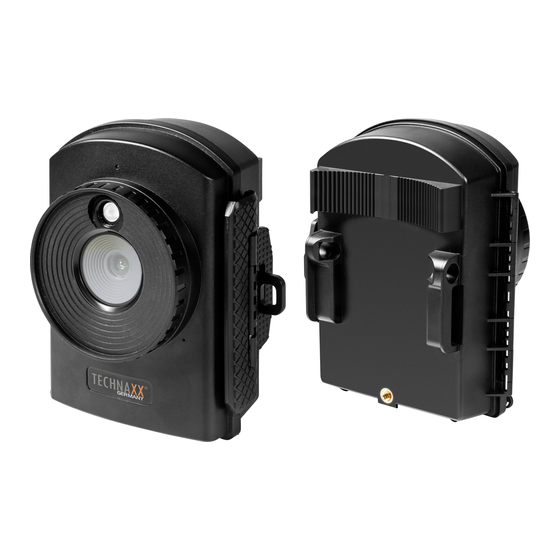

Full HD Time Lapse Camera TX-164
The Declaration of Conformity for this device is under the Internet link: www.technaxx.de/
(in bottom bar "Konformitätserklärung"). Before using the device the first time, read the user
manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute from German
fixed-line and 42 cent/minute from mobile networks).
Free Email: support@technaxx.de
The support hotline is available Mon-Fri from 9 am to 1 pm & 2 pm to 5 pm
Keep this user manual for future reference or product sharing carefully. Do the same with
the original accessories for this product. In case of warranty, please contact the dealer or
the store where you bought this product.
Warranty 2 years
Enjoy your product * Share your experience and opinion on one of
the well-known internet portals
Contents
Features ................................................................................................................... 1
Product overview ...................................................................................................... 2
Power supply ............................................................................................................ 3
Inserting the memory card ........................................................................................ 3
Basic Operations....................................................................................................... 4
Time lapse setting ..................................................................................................... 5
System Setup ........................................................................................................... 7
Mounting ................................................................................................................. 10
Download Files to a computer (2 ways) .................................................................. 11
Technical specifications .......................................................................................... 12
Warnings ................................................................................................................. 13

Features

⚫ Time lapse camera battery operated for indoor and outdoor use
⚫ Ideal for time lapse recordings of constructions sites, house building, plant growth
(garden, orchard), outdoor shots, security monitoring, etc.
⚫ Coloured time-lapse recordings during the day; Time-lapse recordings at night with
high brightness additional by built-in LED (range ~18m)
⚫ Full HD video resolution 1080P/ Picture resolution 1920x1080pixel
⚫ 2.4" TFT LCD display (720x320)
⚫ 1/2.7" CMOS sensor with 2MP and low light sensitivity
⚫ Wide angle lens with 110° field of view
⚫ Select functions: time lapse photo, time lapse video, photo or video
⚫ Built-in microphone & speaker
⚫ MicroSD card** up to 512GB (**not included in delivery)
⚫ Camera protection class IP66 (dust proof & splash water proof)
1
