Technaxx
* User Manual

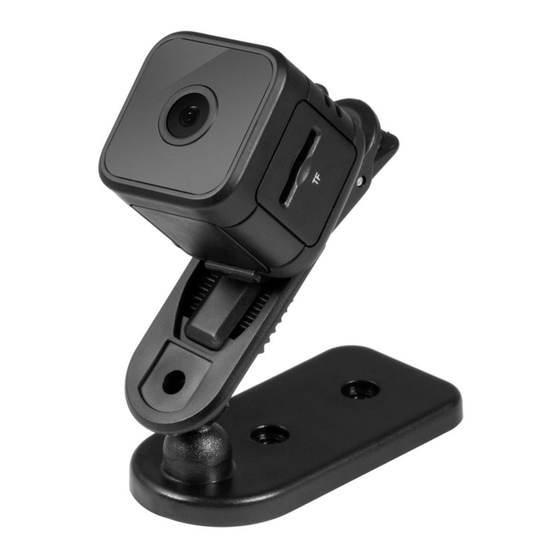

Mini FullHD Cam TX-136
The Declaration of Conformity for this device is under the Internet link:
www.technaxx.de/ (in bottom bar "Konformitätserklärung"). Before using the
device the first time, please read the user manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute from
German fixed-line and 42 cent/minute from mobile networks).
Free Email: support@technaxx.de
This device has a rechargeable battery. It must be fully charged before
first use. NOTE: Charge the battery of the device every 2–3 month if it is
not used!
Keep this user manual for future reference or product sharing carefully. Do
the same with the original accessories for this product. In case of warranty,
please contact the dealer or the store where you bought this product.
Warranty 2 years
Enjoy your product. Share your experience and opinion on one of the
well-known internet portals.
Features
Very small FullHD camera with 1MP CMOS sensor, clip, magnet
& wall holder (allow mounting on many surfaces)
Built-in magnet
allows mounting on many metal surfaces
Night vision with 6
invisible infrared LEDs
Supports cycle recording (once the
memory is full, the oldest video files will be overwritten to store the
newest video files)
Motion detection (~3m)
Storage of files on
MicroSD* card up to 32GB class 10 (*not included)
3 modes:
video recording (1080p, 720p), automatic photo shoot by interval
(5–60 seconds), motion detection
2 video resolutions: FullHD
(1920x1080P) or HD (1280x720p) at 30fps
Powered by
rechargeable 300mAh battery for ~90 minutes of video recording
Actioncam and spycam in one device
Advertisement
Related Manuals for Technaxx TX-136
Summary of Contents for Technaxx TX-136
- Page 1 Mini FullHD Cam TX-136 The Declaration of Conformity for this device is under the Internet link: www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the device the first time, please read the user manual carefully. Service phone No. for technical support: 01805 012643 (14 cent/minute from German fixed-line and 42 cent/minute from mobile networks).
-
Page 2: Technical Specifications
Cleaning: Protect the device from contamination and pollution (use a clean drapery). Avoid using rough, coarse-grained materials or solvents/ aggressive cleaner. Wipe the cleaned device accurately. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany... - Page 3 3 ON / OFF 7 Infrared LEDs (6x) 4 Micro USB 8 MicroSD card slot NOTE: TX-136 is not waterproof! The ON/OFF button up is the right direction for recording! Getting started Connect the camera with the included Micro USB cable to the PC or to an USB adapter* (DC 5V/1A *not included) or a mobile device like a power bank.
- Page 4 Note: The camera is not equipped with built-in memory. Insert a pre- formatted memory card before use. Format MicroSD card with max. 32GB to FAT32. Normally MicroSD cards are formatted when you buy them. Long press (2 seconds) the ON/OFF button, the indicator light turns BLUE.
- Page 5 Connect the camera with the Micro USB cable with the USB port to your PC (if necessary press the ON/OFF button). Or remove the MicroSD from the camera and attach it to your PC (if necessary use SD card adapter). Open the MicroSD path on your PC when it does not open automatically.
- Page 6 The device goes into standby mode. In standby, press ON/OFF once, the BLUE light flashes for 3 times and then turns off. The device starts recording. Video files are saved every 5 minutes. The video file will be saved sequentially until the memory is full. When the memory is full the loop function will delete the oldest file and saves the newest.
- Page 7 Video files will save a video every 5 minutes. The video file will be saved sequentially until the memory is full. When the memory is full the loop function will delete the oldest file and saves the newest. To change the mode press the M button. To power off the device hold and press ON/OFF button for 5 seconds.
