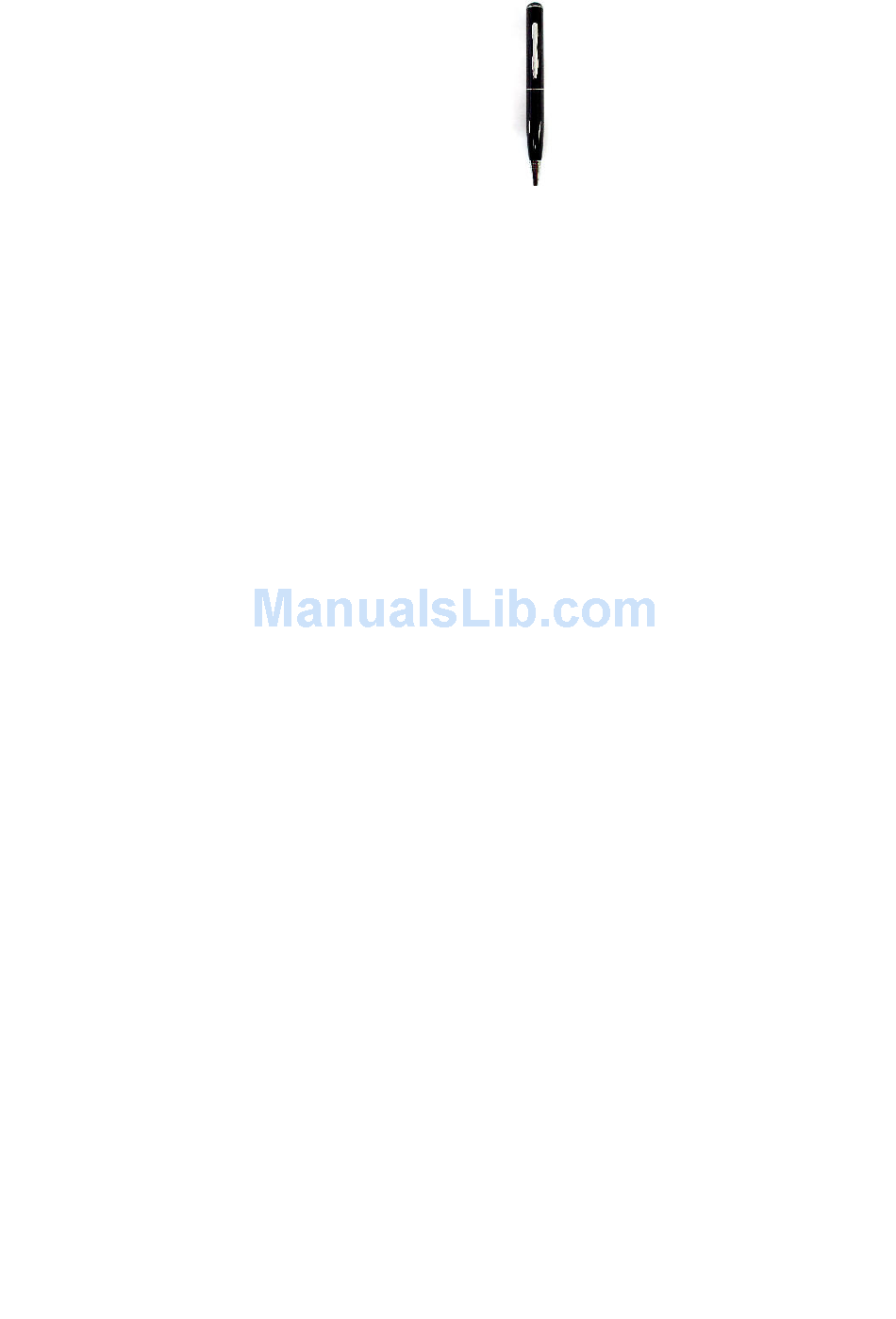

- Page 1 Video Interview Pen User Manual...
- Page 2 Package Content: 1x VIP 1x AC Adapter 1x USB Cable 1x User Manual...
-
Page 3: Technical Specifications
Technical Specifications: Internal memory: 4 or 8 GB Dimensions: 142 x 15mm Weight: 30 g Power supply: Li-Ion battery Charging time: app. 2 – 2,5 hours Record time: up to 60 – 70 min. Video format: Resolution video: 640 x 480 / 30 fps Resolution photo: 1280 x 1024 File size:... - Page 4 Operation: 1. ON / OFF Start / Stop 2. LED 3. Reset button 4. MODE switch 5. USB jack 6. Camera lens...
- Page 5 1. Choose Mode: Switch to the Left = Video Switch to the Right = Photo 2. Switch ON: Press START / STOP button and keep holding until the yellow LED turns on (in Photo mode LED is blinking).
-
Page 6: Switch Off
3. START / STOP: Push the button shortly to START recording (blue LED turns on) and then push it again to STOP (blue LED goes off). At Photo mode just push the button shortly to take a picture (blue LED turns on for 2 seconds only). 4. - Page 7 5. Connection to PC (USB): Always turn the device OFF, before its connection to a PC. Use the USB cable or a free USB port to connect the device to a computer. Operating systems like Windows 2000 / ME / XP / Vista recognize the device and are installed as „Mass storage...
- Page 8 7. Date / Time Setting: The device displays date/time in a video file. The format is like this: "Year–Month–Day Hours:Minutes:Seconds". Setup date/time as follows: (a) First turn off the camera ! connect video computer/notebook open the removable disk of the device click with the right mouse button on a blank space in the root directory of the device...
- Page 9 "Text Document" name the text document “time”. It is essential that its extension is ".txt" (b) open the "time" text document, set the date/time settings string: "Year–Month–Day Hours:Minutes:Seconds". Example of date/time setting: 2009–01–01 12:01:01 (c) Save the date/time settings: click with the right mouse button on “File” in the upper task line click with the left mouse button on “Save”.
- Page 10 8. FAQs: Q: What happens to my recordings when the battery goes out of charge? A: Before the device goes OFF, all recordings are saved automatically. Q: What can I do when the device shows no reaction, ex. when buttons are pressed? A: Press the RESET button;...
- Page 11 7. Important Hints: (1) Do NOT press RESET button while recording – this will stop recording and delete the recorded data. (2) Always charge the battery after usage. The yellow LED blinks while charging. When charging is finished - the yellow LED is ON constantly.
- Page 12 Security and Disposal Hints for Batteries Hold children off batteries. When a child swallowed a battery by mistake go to a doctors place or bring the child into a hospital promptly! Look for the right polarity (+) and (▬) of batteries! Always change all batteries, never use old and new batteries or batteries of different types together.
