Technaxx
* User Manual

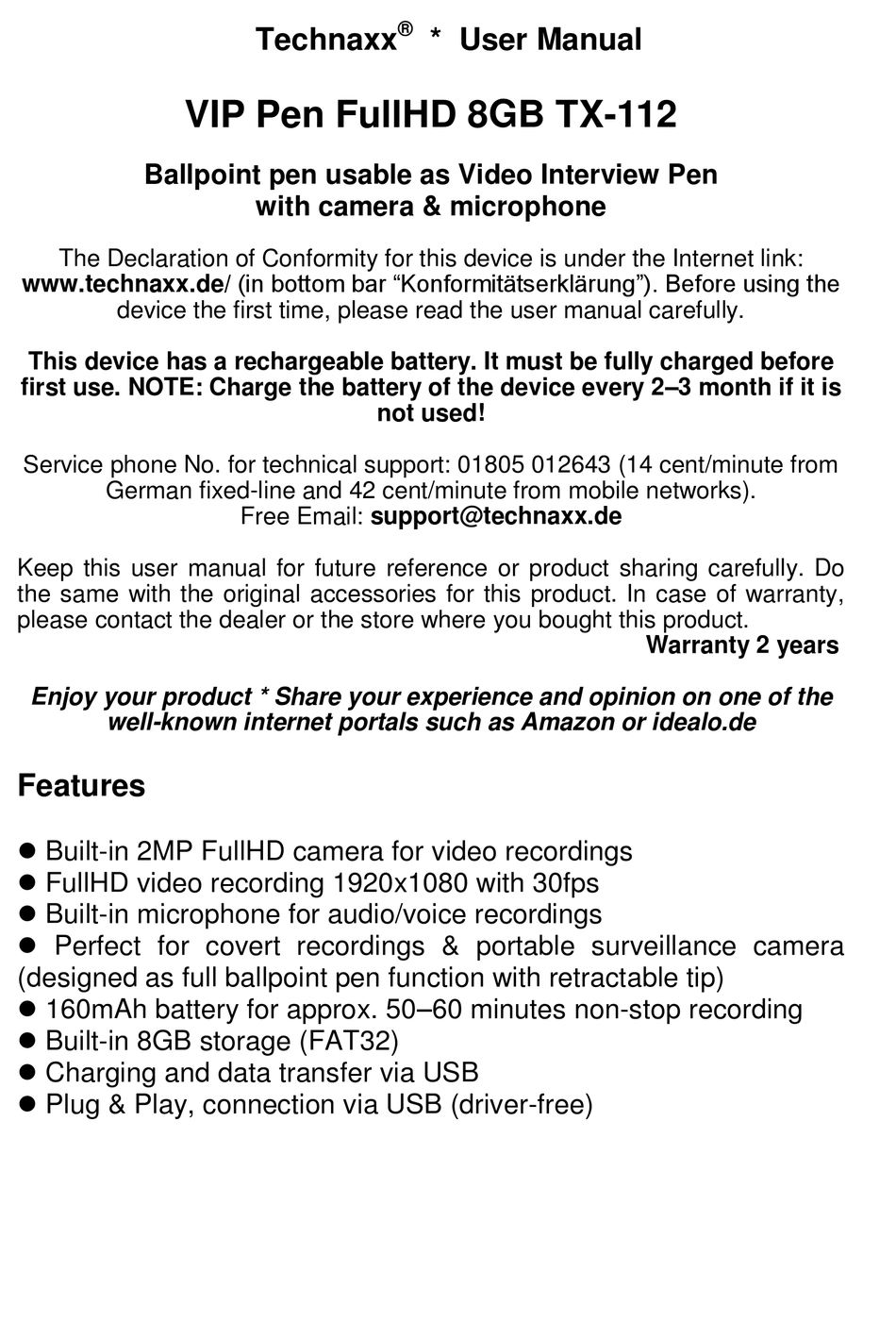

VIP Pen FullHD 8GB TX-112
Ballpoint pen usable as Video Interview Pen
with camera & microphone
The Declaration of Conformity for this device is under the Internet link:
www.technaxx.de/ (in bottom bar "Konformitätserklärung"). Before using the
device the first time, please read the user manual carefully.
This device has a rechargeable battery. It must be fully charged before
first use. NOTE: Charge the battery of the device every 2–3 month if it is
not used!
Service phone No. for technical support: 01805 012643 (14 cent/minute from
German fixed-line and 42 cent/minute from mobile networks).
Free Email: support@technaxx.de
Keep this user manual for future reference or product sharing carefully. Do
the same with the original accessories for this product. In case of warranty,
please contact the dealer or the store where you bought this product.
Warranty 2 years
Enjoy your product * Share your experience and opinion on one of the
well-known internet portals such as Amazon or idealo.de

Features

 Built-in 2MP FullHD camera for video recordings
 FullHD video recording 1920x1080 with 30fps
 Built-in microphone for audio/voice recordings
 Perfect for covert recordings & portable surveillance camera
(designed as full ballpoint pen function with retractable tip)
 160mAh battery for approx. 50–60 minutes non-stop recording
 Built-in 8GB storage (FAT32)
 Charging and data transfer via USB
 Plug & Play, connection via USB (driver-free)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIP Pen Full HD 8GB TX-112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Technaxx VIP Pen Full HD 8GB TX-112

  • Page 1 & microphone The Declaration of Conformity for this device is under the Internet link: www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the device the first time, please read the user manual carefully. This device has a rechargeable battery. It must be fully charged before first use.
  • Page 2 Technical specifications Video resolution FullHD 1920x1080 with 30fps Camera angle 75° horizontal File size 160–170MB min. (8GB = 45 min.) Internal storage 8GB (FAT32) Formats Video AVI / Audio WAV Recording time Video ~60 70 min. / Audio ~70 80 min. –...
  • Page 3: Voice Recording

    Use of the device  Charging Before first use, connect the USB port of the charging cable to the TX-112. Then connect the USB port of the charging cable to the USB port of an AC adapter (*not included) or to the USB port of a computer.
  • Page 4  Turn off camera Under standby mode, long press power key, LED flashes 3x and turns off. The camera turns off.  Connecting with PC Power off the device then connect it with PC using USB cable. Do not have any operation on the device during this connection. If the device is not read by PC, please re-connect and make sure the USB driver/cable is alright.
  • Page 5 Cleaning: Protect device from contamination and pollution (use a clean drapery). Avoid using rough, coarse-grained materials or solvents/aggressive cleaner. Wipe the cleaned device accurately. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany...
