Page 1: Table Of Contents

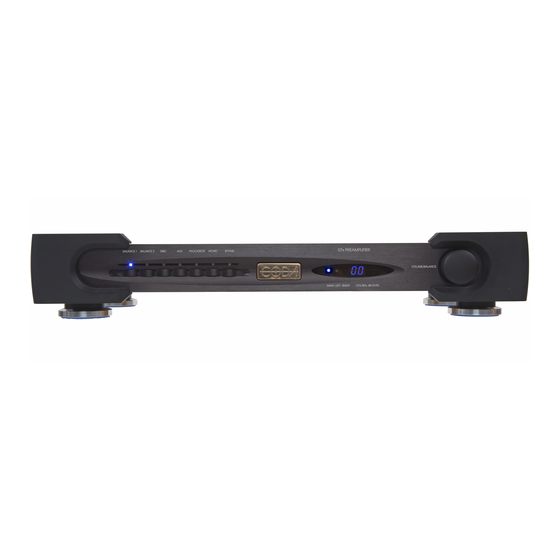

Preamplifier 07x OPERATION MANUAL SAFETY PRECAUTIONS SAFETY PRECAUTIONS INTRODUCTION INTRODUCTION INSTALLATION CONNECTIONS DETAILED INSTALLATION DESIGN PHILOSOPHY TECHNICAL DATA CARE & HANDLING WARRANTY & DISCLAIMER WARRANTY REGISTRATION... -
Page 2: Safety Precautions
SAFETY PRECAUTIONS CAUTION CAUTION WARNING WARNING CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS SYMBOL IS TO ALERT YOU OF THE PRESENCE OF UNINSULATED DANGEROUS VOLTAGE WITHIN THE UNIT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC... -
Page 3: Introduction
This preamplifier is a precision device, designed in an effort to provide the listener with unmatched sound quality, design, and construction. In order to operate your preamplifier properly and to realize all of the capabilities of the 07X PREAMPLIFIER we recommend that you read this entire manual carefully. -
Page 4: Installation Connections
INSTALLATION CONNECTIONS Illustrated below is the rear panel of the 07X. The connections are standard and typical of any audio preamplifier. Any unknown features should be adequately explained by the function descriptions on the following page. Both sets of balanced receptacles on the left side are identical stereo outputs suitable for connection to multiple amplifiers. -
Page 5: Detailed Installation
3. The MONO button combines the left and right audio channels. 4. The BYPASS button will cause the gain to drop to unity, bypassing the normal 12dB standard gain of the 07x. 5. Volume and balance setting is indicated by the decibel (dB) display. - Page 6 DETAILED INSTALLATION REMOTE OPERATION The 07x can be operated by remote control. The MX-450 Learning Remote is included with the amplifier. For instructions on using the MX-450 itself see the on screen manual included in the remote.
-
Page 7: Design Philosophy
DESIGN PHILOSOPHY The circuitry used in the FET PREAMPLIFIER 07x is the result of an advanced and complete design process combining innovation and prove fundamentals. This process avoids both the limitations of total adherence to convention and the flaws resulting from inappropriate applications of clever circuit gimmicks. - Page 8 6. Connectors - Coda employs a standard RCA configuration with a gold plated case. The balanced connectors are Neutriks from Switzerland. 7. Wire - All signal wire has been eliminated whenever possible. Where wire is used, Coda employs silver plated copper, 141 strand, 18 gauge wire with a silicone insulation.
-
Page 9: Technical Data
TECHNICAL DATA Frequency Response: -3dB @ 5Hz to 200kHz Distortion: <.005% from 10Hz to 40kHz @ 5V peak into 600 ohms or higher, shunted by 1000pF or less. Gain: 12dB plus 0-18dB variable per input in 1dB steps. Unity gain when Bypass feature is enabled. -
Page 10: Care & Handling
If a cleaner is necessary, any dilute commercial ammonia based product will be appropriate. NEVER use any abrasive rags, cleaners or chemical solvents on Coda products. When handling the unit, take care not to mar the aluminum. Aluminum is a medium hardness metal and can be scratched by the harder tool steels. -
Page 11: Warranty & Disclaimer
Coda Technologies without charge for parts or labor, for a period of ten years from date of original purchase. Coda Technologies will provide for surface transportation to and from the factory for a period of one year from date of original purchase. -
Page 12: Warranty Registration
WARRANTY REGISTRATION Fill in this registration sheet and fax or mail it to Coda Technologies to ensure you are in our warranty system. This will facilitate warranty service should it become necessary. It is recommended that you retain a copy of this form for your own records. Coda Technologies’... - Page 13 WARRANTY REGISTRATION Fill in this registration sheet and fax or mail it to Coda Technologies to ensure you are in our warranty system. This will facilitate warranty service should it become necessary. It is recommended that you retain a copy of this form for your own records. Coda Technologies’...
- Page 14 7850 CUCAMONGA AVENUE #34 SACRAMENTO, CA 95826 USA +01 916.383.3653 +01 916.455.3653 phone CODA.CC on the web at info@coda.cc email us at...
