Rifox EF 1112 Operating Manual

1.0 Safety instructions
1.1 Proper use
Any improper use, intervention in the design and deviation from the design data automatically
lead to termination of the warranty. The float-controlled condensate trap is designed for the
discharge of condensate from steam, compressed air and pressure gas systems. Any other
use is not permissible. The manufacturer is not liable for dam age resulting from any other
use. The user or operator bears the risk in this case. This also applies analogously to
incorrect assembly, startup, use and maintenance.
1.2 Warnings and symbols
There is a risk of personal injury due to escaping operating medium as well as because of
pressure, temperature and weight. Failure to comply with these warnings may lead to accidents.
Follow the instructions in this operating manual.
The operator must ensure that this operating manual and, if necessary, other relevant
documents are available on site.
Only trained or instructed personnel may be assigned to handling this
equipment. Any mode of operation that may impair safety must be avoided.
2.0 General description and use

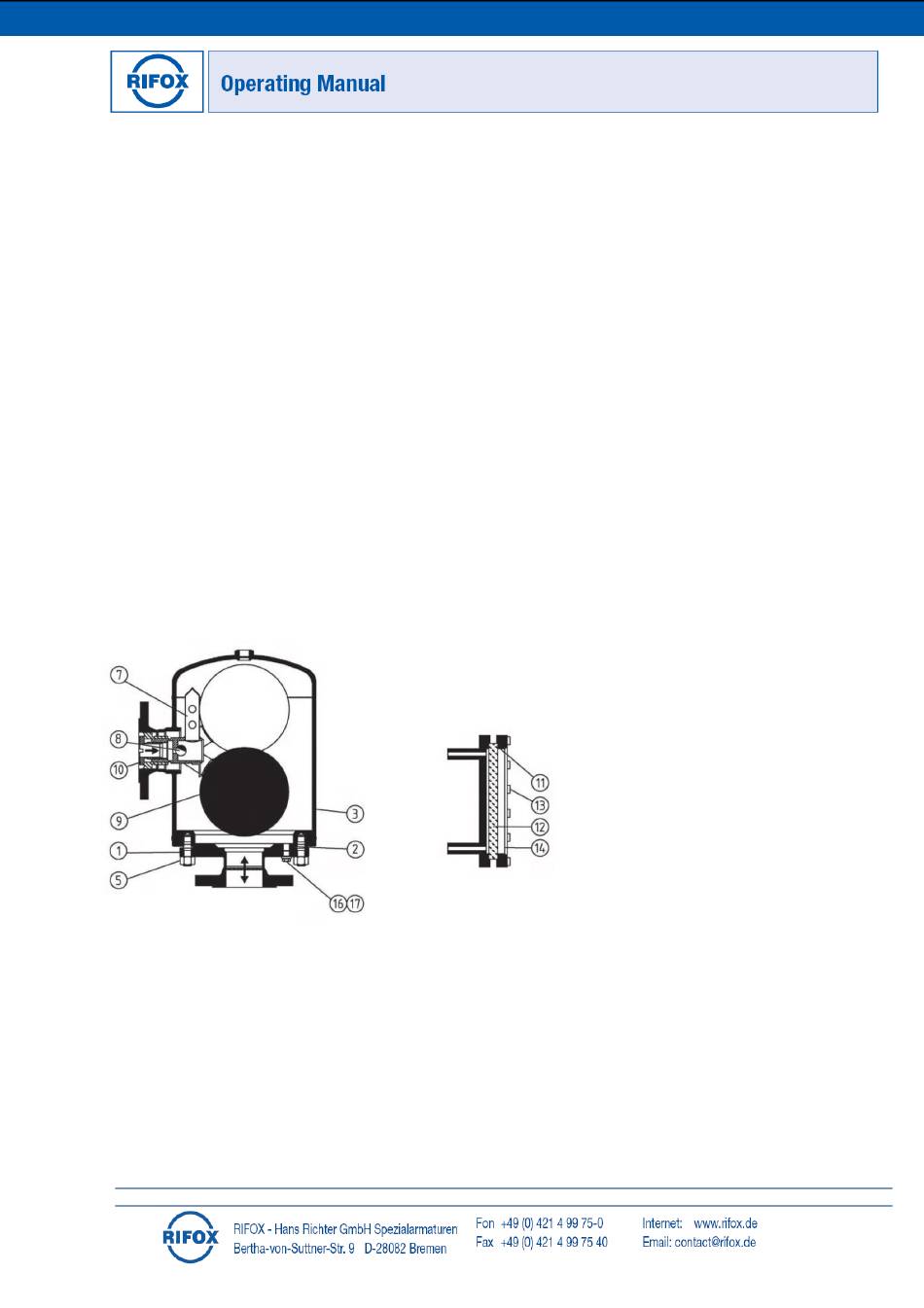

Design of the condensate trap
2.2 Identification, operating limits on rating plate or housing
Rev. 02/2017-Di
for Type EF 1112
as Flow Control Unit ZR, PN 25
Page 1 of 4
1 Housing cover
2 Housing gasket
3 Housing with connections
5 Set of screws with nuts
7 Float control
8 Supporting
structure with
rotary slide valve
9 Float with fork
10 Bush
11 Set of Seals
12 Sight glass
13 Set of screws with nuts
14 RWG-Frame
16 Control screw
17 RWG-Seals
Fig.1
Subject to modification !
