Rifox 1513 Manual

Float-controlled condensate trap, pn 160

Advertisement

Quick Links

Operating Manual
1

Safety instructions

1.1

Proper use

Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2

Warnings and symbols

■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2

General description and usage

2.1

Design of the condensate trap

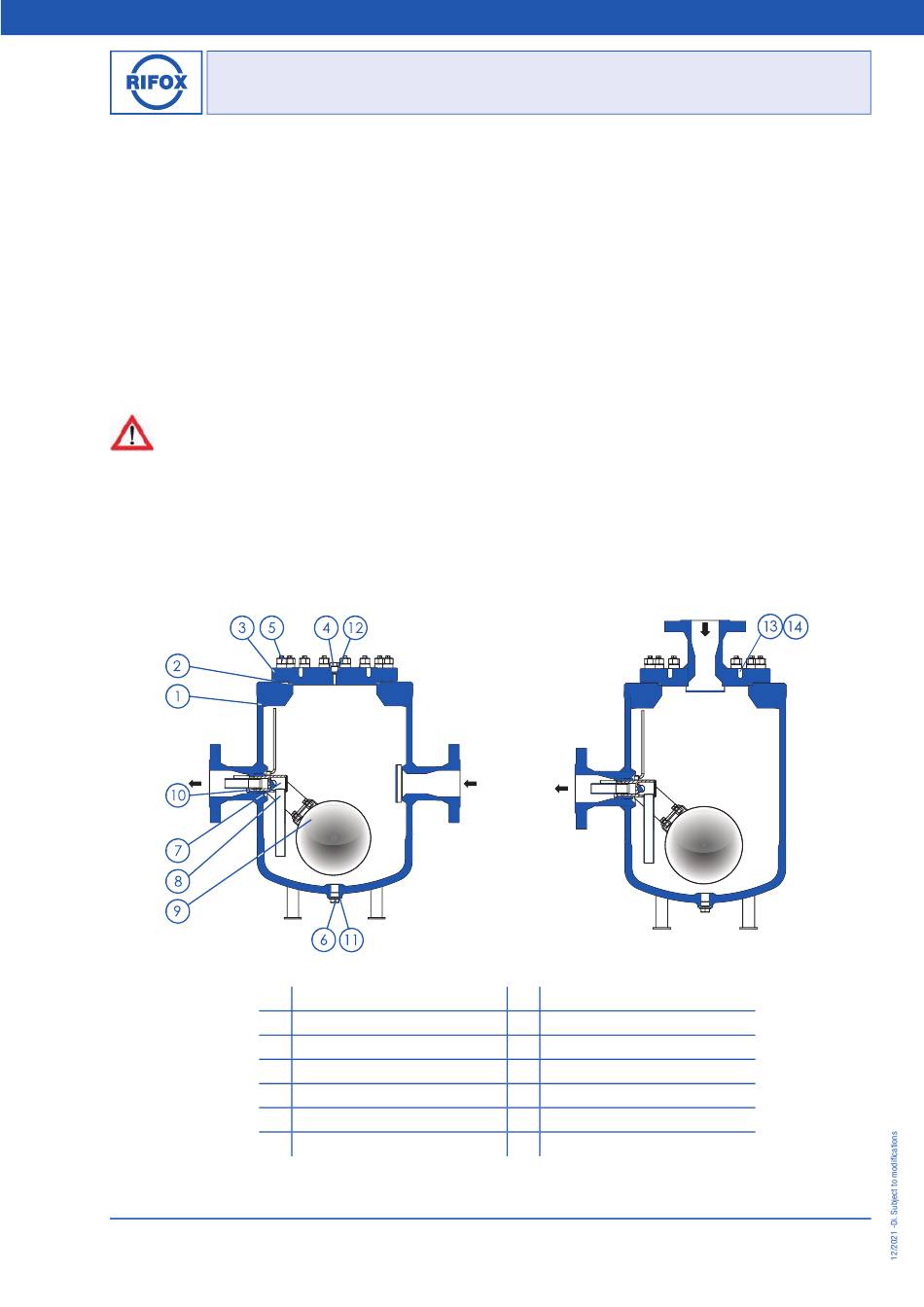

Picture 1: Model WO-1513
1
2
3
4
5
6
7
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9 D-28207 Bremen
Model: 1513
Model: 1518
Float-Controlled Condensate Trap, PN 160
Housing
Housing gasket
Housing cover
Control screw
Housing screws
Screw plug
Float control assembly
Fon: +49 (0) 421 499 75 - 0
Fax: +49 (0) 421 499 75 - 40
Picture 2: Model EF-1518
Supporting body assembly
8
Float
9
10
Holding screw for fl oat control assembly
11
Gasket
12
Gasket
13
Control screw
14
Gasket
www.rifox.de
www.rifoxglobal.com
Page 1 of 5
contact@rifox.de
sales@rifoxglobal.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1513 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rifox 1513

  • Page 1 Screw plug Control screw Float control assembly Gasket Page 1 of 5 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 www.rifox.de contact@rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 www.rifoxglobal.com...
  • Page 2 (pressure compen- sation). For this purpose the control screw (4) in models 1513 can be replaced by a cutting ring union and a compensating line leading upward can be installed.
  • Page 3 ■ Turn the oval float inside the housing and lift it out vertically. ■ If only the float has to be replaced, continue with section 6.3.2 point 3. Page 3 of 5 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 www.rifox.de contact@rifox.de...
  • Page 4 ■ Check the rotary valve (v) for wear along the sealing edge. If wear is detected, the support body (b) together with the rotary valve (v) must be replaced. The thorough leakage test must be carried out by RIFOX. ■ During assembly ensure that the notch in the rotary valve (v) points to the punch mark on the support body (b) and the cotter pin (p) is inserted and secured again carefully.
  • Page 5 A detailed declaration of conformity assessment according to PED is available as separate document. Please request if necessary, if not attached. Model 1513/1518 made of 16Mo3 is not applicable for media of fluid group Page 5 of 5 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 www.rifox.de...
