Rifox WO-1111 Operating Manual

Operating Manual
1 Safety instructions
1.1 Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2 Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2 General description and usage
2.1 Design of the condensate trap
12
10
8
9
Housing cover
1
Housing gasket
2
Housing
3
4 Control screw
5 Gasket
6 Screw plug
Oben Links
278,5 20
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Float-Controlled Condensate Trap, PN 25
4 5
6

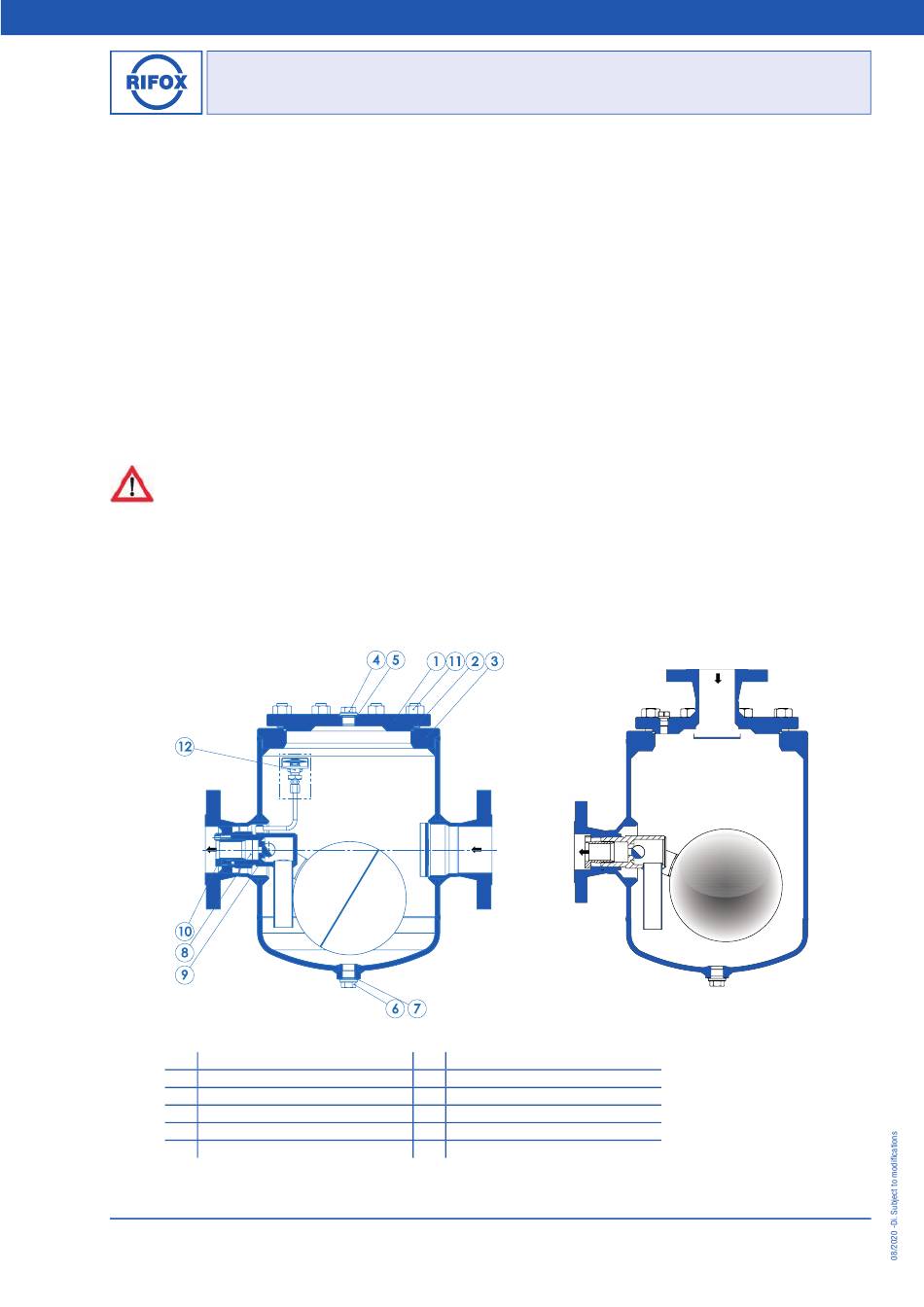

Picture 1: Model WO-1111
Model WO-1111-N
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Model: 1111
Model: 1111-N
Model: 1112
Model: 1112-N
1 11 2 3
7
Gasket
7
Float control assembly
8
Supporting body assembly
9
10 Holding screw for fl oat control assembly
11 Housing screws
12 Capsule venting for screw in
Fon: +49 (0) 421 499 75 - 0
Picture 2: Model EF-1112
Model EF-1112-N
Internet: www.rifox.de
Email: contact@rifox.de
Breite: 1
Höhe:8,
Page 1 of 5
