Rifox 10210 Operating Manual

Operating Manual
1

Safety instructions

1.1

Proper use

Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The thermally controlled condensate trap model 10210 is designed for the discharge of condensate from steam,
compressed air and pressure gas systems. Any other use is not permissible. The manufacturer is not liable for damage
resulting from any other use. The user or operator bears the risk in this case. This also applies analogously to incorrect as-
sembly, startup, use and maintenance.
1.2

Warnings and symbols

■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2

General description and usage

2.1

Design of the condensate trap

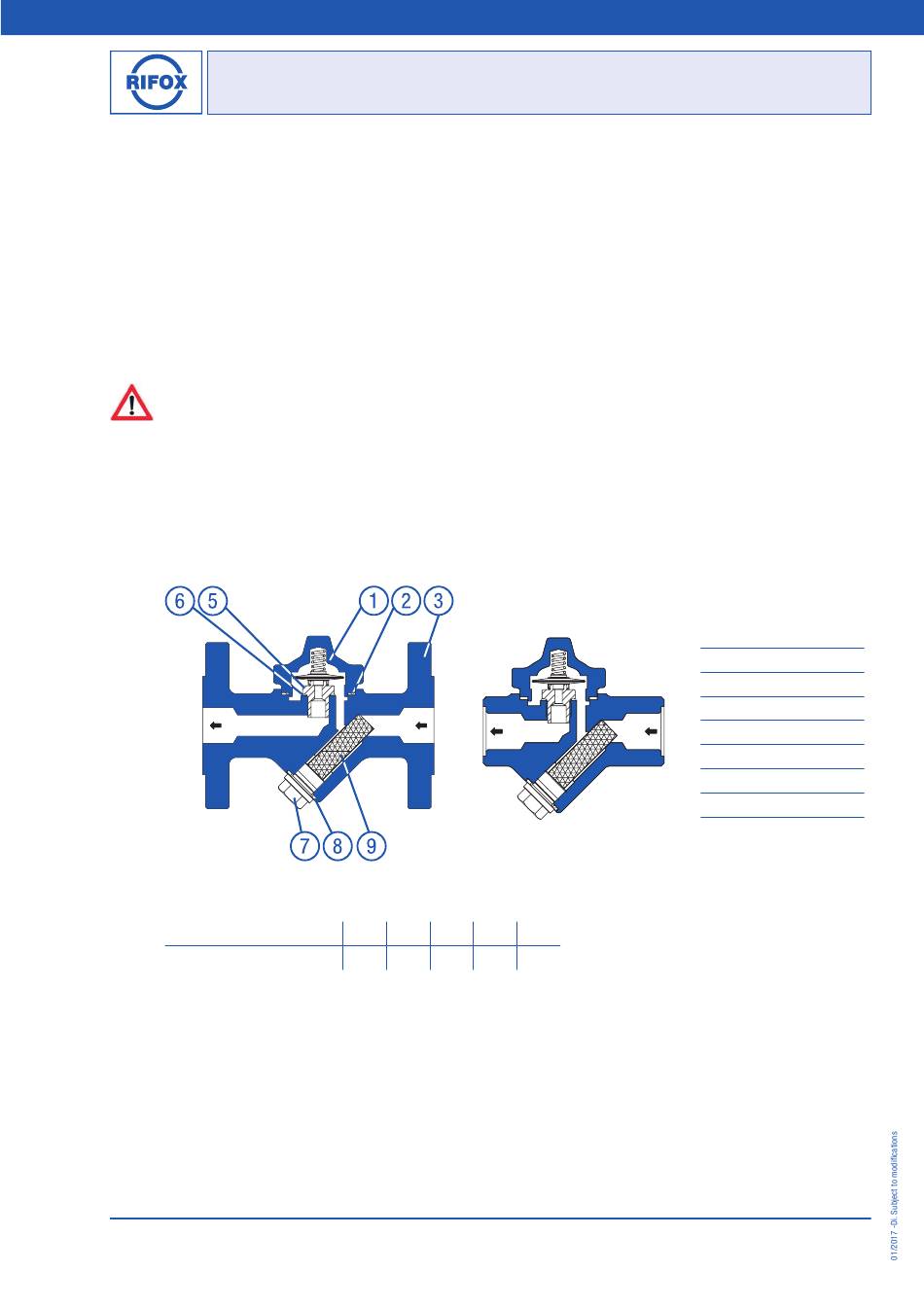

Picture 1: Model 10210 with Flanges
2.2

Operation limits of housing material (Design)

max. operating pressure (bar g)
max. operating temperature (°C)
2.3.

Function-limit of capsule: max. diff. Pressure PMO = 22 bar

Oben Links
278,5 20
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9 D-28207 Bremen
Model: 10210
RIFOka Thermo Controlled Capsule Trap, PN 40
40 37,1 33,4
-10/20 100 200
* for ANSI max. 350°C
Fon: +49 (0) 421 499 75 - 0
Fax: +49 (0) 421 499 75 - 40
Picture 2: Model 10210 with Threads
27,6 23,8
300 400 *
www.rifox.de
www.rifoxglobal.com
1 Upper housing
2 Gasket
3 Flange part
4 Housing screws (not visible)
5 Valve unit
6 Gasket
7 Plug
8 Gasket
9 Strainer
Breite: 1
Höhe:8,
Page 1 of 3
