Rifox WO-1210-ZR Operating Manual

Feed control unit

Advertisement

Quick Links

Type:
Connections:
1.0

Safety instructions

1.1

Proper use

Any improper use, intervention in the design and deviation from the design data automatically lead to
termination of the warranty. The float-controlled condensate trap is designed for the discharge of
condensate from steam, compressed air and pressure gas systems. Any other use is not permissible. The
manufacturer is not liable for damage resulting from any other use. The user or operator bears the risk in
this case. This also applies analogously to incorrect assembly, startup, use and maintenance.
1.2

Warnings and symbols

There is a risk of personal injury due to escaping operating medium as well as because of pressure,
temperature and weight. Failure to comply with these warnings may lead to accidents.
Follow the instructions in this operating manual.
The operator must ensure that this operating manual and, if necessary, other relevant documents
are available on site.
Only trained or instructed personnel may be assigned to handling this equipment.
Any mode of operation that may impair safety must be avoided.
2.0

General description and use

2.1

Design of the feed control unit

01/2013-Di.

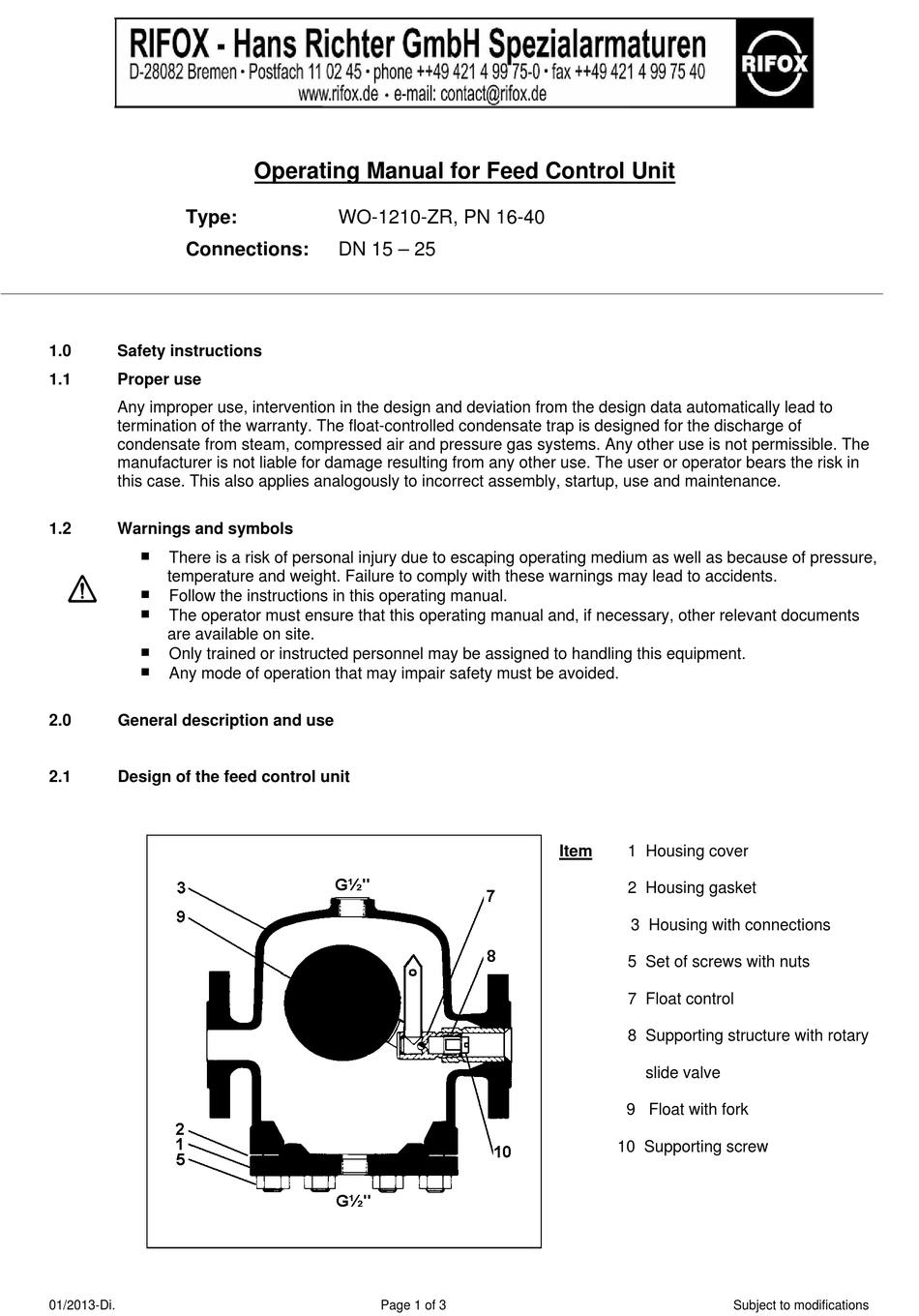

Operating Manual for Feed Control Unit
WO-1210-ZR, PN 16-40
DN 15 – 25
Page 1 of 3
Item
1 Housing cover
2 Housing gasket
3 Housing with connections
5 Set of screws with nuts
7 Float control
8 Supporting structure with rotary
slide valve
9 Float with fork
10 Supporting screw
Subject to modifications
