Rifox WU-1550 Operating Manual

Operating Manual
1 Safety instructions
1.1 Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2 Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2 General description and usage

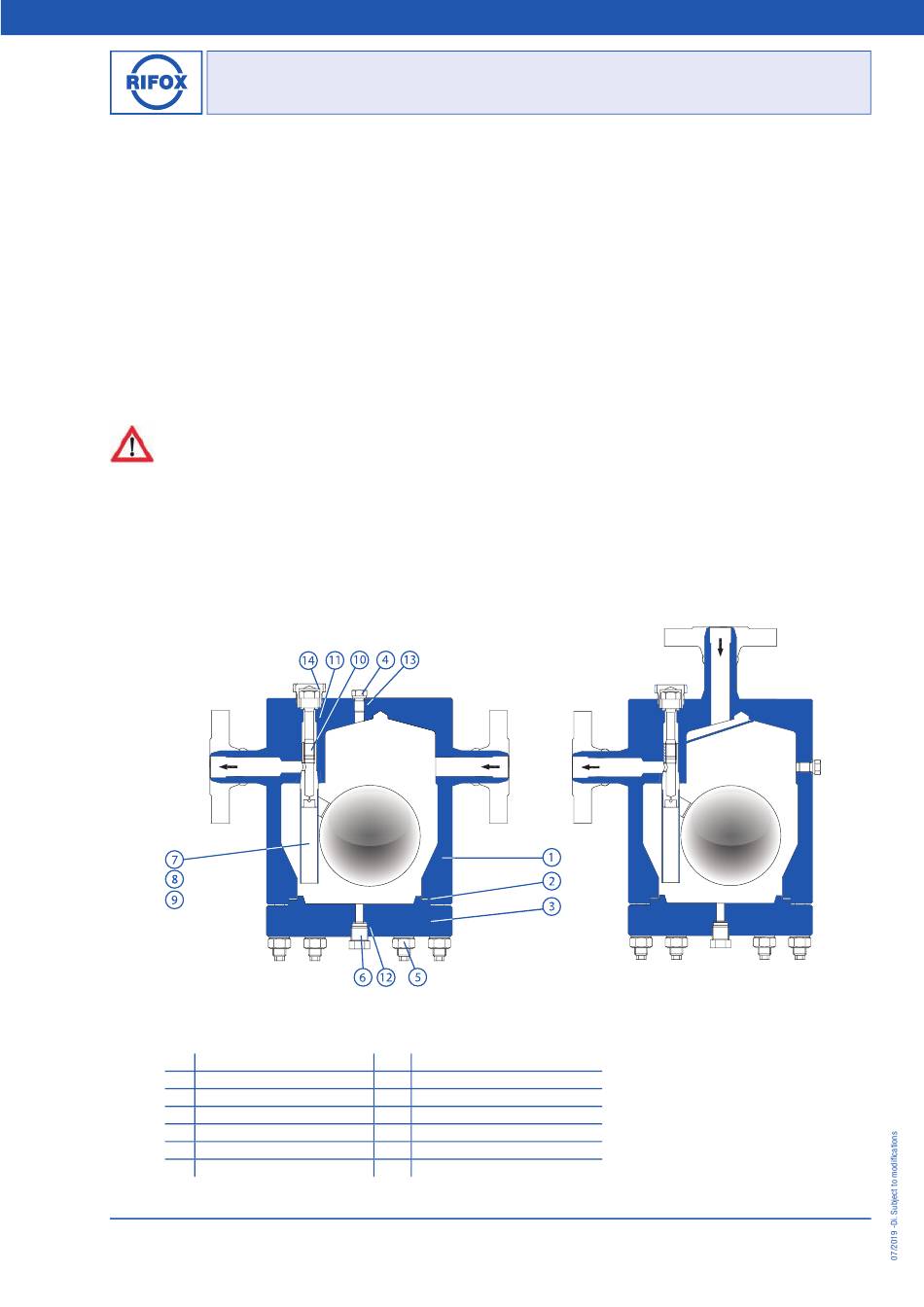

2.1 Design of the condensate trap
1 Upper housing
2 Gasket for Housing
3 Lower housing
4 Control screw
5 Housing tension bolt
Screw plug
6
Float control assembly
7
Oben Links
278,5 20
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9 D-28207 Bremen
Model: 1550 / 1550-N
Model: 1551 / 1551-N
RIFOmat - Float Controlled Trap, PN160
Picture 1: WU-1550
WU-1550-N
8 Supporting body assembly
9 Float
10 Supporting screw
11 Gasket
12 Gasket
Gasket
13
Protecting cap
14
Fon: +49 (0) 421 499 75 - 0
Fax: +49 (0) 421 499 75 - 40
Picture 2: EF-1551
EF-1551-N
www.rifox.de contact@rifox.de
www.rifoxglobal.com sales@rifoxglobal.com
Breite: 1
Höhe:8,
Page 1 of 5
