The unit is connected to the supply even if the Power Switch is in the "OFF"
position, and therefore there are electrically live parts inside the power
source. Carefully follow the instructions given in this manual.
Temperature warning light indicates over-current or over-heating with the unit when the light is on. It will stay on until the machine
1
has sufficiently cooled down.
2
Power indicator light indicates the machine is power on.


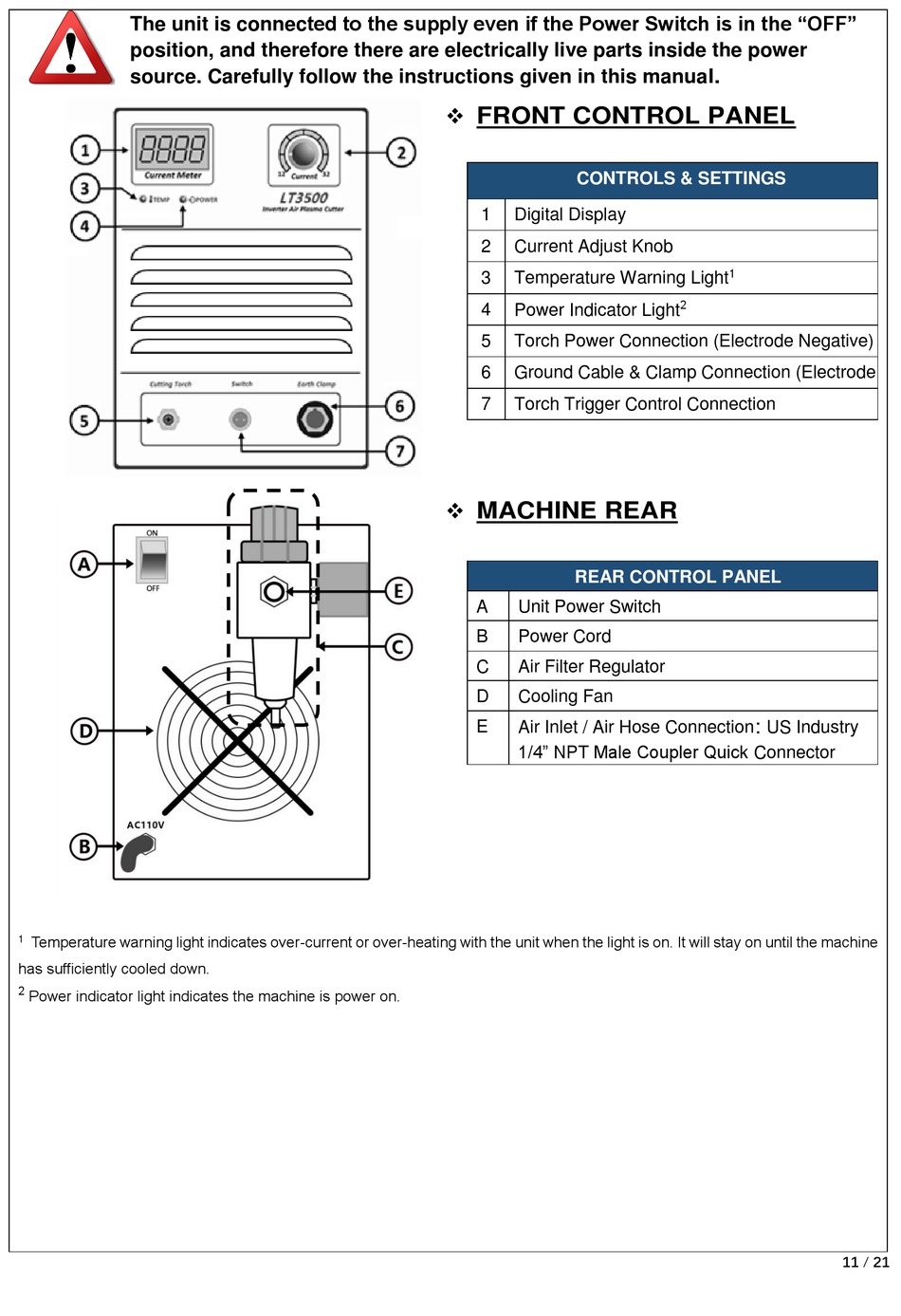

FRONT CONTROL PANEL

CONTROLS & SETTINGS
1 Digital Display
2 Current Adjust Knob
3 Temperature Warning Light
4 Power Indicator Light
5 Torch Power Connection (Electrode Negative)
6 Ground Cable & Clamp Connection (Electrode
Positive)
7 Torch Trigger Control Connection


MACHINE REAR

REAR CONTROL PANEL
A Unit Power Switch
B Power Cord
C Air Filter Regulator
D Cooling Fan
E
Air Inlet / Air Hose Connection
1/4" NPT Male Coupler Quick Connector
1
2
:
US Industry
11 / 21
