- Page 1 GETTING STARTED Picolo.net Picolo.net HD1 - Firmware Version 2.6 © EURESYS s.a. 2020 - Document D302ET-Getting Started-Picolo.net_HD1-2.6.9.3032 built on 2020-03-25...
- Page 2 EURESYS s.a. shall not be liable for any loss of or damage to revenues, profits, goodwill, data, information systems or other special, incidental, indirect, consequential or punitive damages of any kind arising in connection with the use of the hardware or the software of EURESYS s.a.
-
Page 3: Table Of Contents
Picolo.net Getting Started Contents 1. Description 1.1. Short Description 1.2. Video Processing Chain 1.3. Access Control 1.4. Precautions of Use 2. Installing a Picolo.net 2.1. Disclaimer 2.2. Declarations of Conformity 2.3. Installation 2.4. Connectors Location and Markings 2.5. Connections 2.6. Configuration 2.7. - Page 4 Picolo.net Getting Started Power Supply Adapters 3.3. Environmental Specifications Operating Conditions Storage Conditions Compliance 3.4. Functional Specifications Video Source Specification Video Encoders Specification Audio Specifications Streaming Specifications Network Specifications System Integration Specifications Temperature Monitor Time and Date 4. Software Specifications 4.1.
-
Page 5: Description
Picolo.net Getting Started 1. Description 1. Description 1.1. Short Description Left: 1669-DR Picolo.net HD1 (DIN rail) and right: 1669-DW Picolo.net HD1 (Desktop/Wall) Picolo.net HD1 Deliverables Quantity Items Enclosure: 1669-DR Picolo.net HD1 (DIN rail) □ □ 1669-DW Picolo.net HD1 (Desktop/Wall) 8-pin (1x8) 3.81 mm pitch terminal plug 4-pin (1x4) 3.81 mm pitch terminal plug 2-pin (1x2) 3.81 mm pitch terminal plug Picolo.net HD1 Installation Guide... - Page 6 Picolo.net Getting Started 1. Description Product accessories Order Code and Name Short Description Universal power supply: 1675 Power Supply for Picolo.net HD1 110-240 Vac, 50/60 Hz input □ 12 Vdc, 40 W output □ 1660 Power Cable (EUR) IEC C13 AC power cord with CEE 7/7 plug – 1.8 m 1661 Power Cable (US) IEC C13 AC power cord with US 3-pin plug –...
- Page 7 Picolo.net Getting Started 1. Description The three streams can be encoded concurrently with any of the following encoding methods: HEVC (H.265) main profile, □ □ AVC (H.264) baseline, main, or high profiles, □ MJPEG. The high-quality HEVC (H.265) / AVC (H.264) hardware encoder engine is capable of encoding multiple streams with an aggregate pixel rate up to 160,000,000 pixels per second (equivalent to 1080p77).
- Page 8 Picolo.net Getting Started 1. Description □ RTP interleaved in RTSP over HTTP or HTTPS The streaming is controlled by means of the RTSP protocol. Each RTSP session may include: One encoded video stream □ □ One encoded audio stream One metadata stream □...
-
Page 9: Video Processing Chain
Picolo.net Getting Started 1. Description 1.2. Video Processing Chain Video Processing Chain The video processing chain is composed of the following elements: One video front end including 2 video interfaces, 1 video source multiplexer, 1 video de- □ interlacer, Two video scalers, □... - Page 10 Picolo.net Getting Started 1. Description Video scalers ● The two video scalers scale down (or up) the full resolution progressive scan video stream: ● The video scaler #1 delivers a video data stream having a resolution up to 1280 pixels wide (720p).
-
Page 11: Access Control
Picolo.net Getting Started 1. Description 1.3. Access Control Access Policy Picolo.net HD1 products implement the default access policy that is recommended by the ONVIF 2.2 Core Specification. The policy implements four user levels Administrator, Operator, User, and Anonymous. ● Administrator, Operator, and User levels requires the user to be registered in the device user database and to authenticate before to gain access to protected device services. - Page 12 Picolo.net Getting Started 1. Description Enabling access control ● Access control is automatically enabled when at least one Administrator-level user exists in the user database. ● An out-of-box Picolo.net HD1 product is delivered with an empty user database. The access control remains disabled until an Administrator-level user is created. ●...
-
Page 13: Precautions Of Use
Electronic devices can be damaged by electrostatic discharges. □ □ Euresys devices are compliant with electrostatic discharges regulatory requirements. However, it is required to apply any general procedure aimed at reducing the risk associated to electrostatic discharge. Risk of malfunction due to EMI □... -
Page 14: Installing A Picolo.net
2. Installing a Picolo.net Picolo.net Picolo.net HD1... -
Page 15: Disclaimer
EURESYS s.a. shall not be liable for any loss of or damage to revenues, profits, goodwill, data, information systems or other special, incidental, indirect, consequential or punitive damages of any kind arising in connection with the use of the hardware or the software of EURESYS s.a. or resulting of omissions or errors in this documentation. - Page 16 Picolo.net Getting Started 2. Installing a Picolo.net FCC Compliance (Class A) Notice for USA Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 17: Installation
Picolo.net Getting Started 2. Installing a Picolo.net regulations. 2.3. Installation Box content Quantity Items 1669-DR Picolo.net HD1 (DIN rail) or 1669-DW Picolo.net HD1 (Desktop/Wall) enclosure 8-pin (1x8) 3.81mm pitch terminal plug 4-pin (1x4) 3.81mm pitch terminal plug 2-pin (1x4) 3.81mm pitch terminal plug Picolo.net HD1 Installation Guide DIN-rail mounting The out-of-the box product is ready for installation on a DIN rail. -
Page 18: Connectors Location And Markings

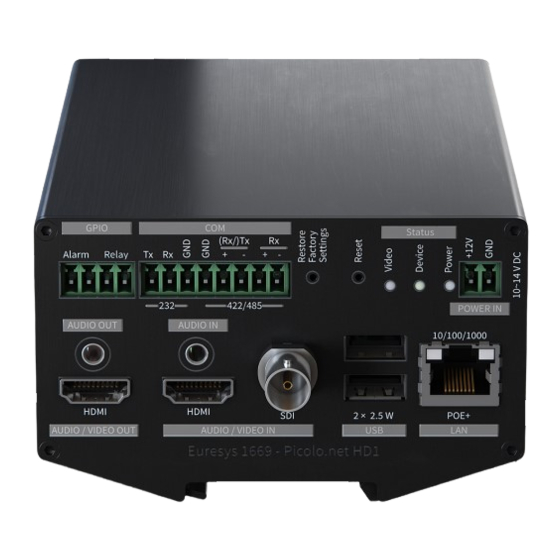

Picolo.net Getting Started 2. Installing a Picolo.net 2.4. Connectors Location and Markings Picolo.net HD1 front panel Picolo.net HD1 rear panel 2.5. Connections Audio/ Video Audio/ Video Inputs Select one of the following options: Connect a HD-SDI or a 3G-SDI audio/video source to the SDI AUDIO/VIDEO IN female ●... - Page 19 Picolo.net Getting Started 2. Installing a Picolo.net Analog Audio Input Using a 3.5 mm jack, connect an analog stereo (or mono) line-level audio sources to the AUDIO IN connector. 3.5 mm stereo jack Analog Audio Output Using a 3.5 mm jack, connect an analog stereo (or mono) line-level audio sink to the AUDIO OUT connector.
- Page 20 Picolo.net Getting Started 2. Installing a Picolo.net Connect the Data- and the Data+ signals respectively to the Rx/TxD- (pin 3) and the Rx/TxD+ (pin 4) outputs of the COM connector 8-pin terminal plug Connect the GND signal and/or the cable shield to the GND (pin 5 and/or pin 6) of the 8-pin terminal plug For a RS-232 device: ●...
-
Page 21: Configuration
The computer TCP/IP stack is configured for dynamic IP allocation. □ Run the Euresys ONVIF Device Scanner utility. At the completion of the scanning process, all discovered ONVIF devices appear in the discovered ONVIF devices list. Select a device in the list by clicking its [IP] field. The right pane displays the properties of the selected device. - Page 22 Picolo.net Getting Started 2. Installing a Picolo.net The ONVIF Device Manager application software utility can also be used . ONVIF Device Manager is available on : http://sourceforge.net/projects/onvifdm/ Manage the media profiles (optional) The Profile Management page allows the user to view/edit/delete and create media profiles. An auto-setup procedure that automatically creates media profiles suited to the connected cameras is also available.
-
Page 23: Final Check
Picolo.net Getting Started 2. Installing a Picolo.net 2.7. Final Check Video stream from all cameras Repeat the procedure for all active video sources: Open the Profile Management page. Select a media profile corresponding to the targeted video source, and click the [View/Edit] button. -
Page 24: Configuring Backup And Restore
Picolo.net Getting Started 2. Installing a Picolo.net 2.9. Configuring Backup and Restore To backup and restore your user-defined configurations, use the ONVIF Backup/Restore capability. The configuration backup data includes: □ Network settings ONVIF Media Profiles □ □ Video Source Configurations □... -
Page 25: Hardware Specifications
Picolo.net Getting Started 3. Hardware Specifications 3. Hardware Specifications 3.1. Mechanical Specifications Dimensions and Weight 1669-DR Picolo.net HD1 HD1 (DIN rail) Dimensions Value [mm] Value [inch] Width 4.13 Height 63.9 2.52 Depth 7.28 Weight Value [g] Value [lb] Weight 1.68 1669-DW Picolo.net HD1 (Desktop/Wall) Dimensions Value [mm]... -
Page 26: Connectors Location And Pinout
Picolo.net Getting Started 3. Hardware Specifications DIN-Rail Mount The DIN rail must be horizontal. Two possible orientations are allowed: left facing connectors or right facing connectors. 1669-DW Picolo.net HD1 (Desktop/ W all) The out-of-the box product is ready for a desktop or a wall-mount usage. The enclosure is fitted with 4 oblong holes, 2 on each side, that can be used to attach the product on any flat surface. - Page 27 Picolo.net Getting Started 3. Hardware Specifications Picolo.net HD1 front panel SDI AUDIO/ VIDEO IN Connector Property Value Name SDI AUDIO/VIDEO IN Type 2-pin female receptacle, right-angled, PCB-mount, BNC connector Usage HD/3G-SDI audio and video input Signal Usage Center SDI IN SD/HD/3G-SDI audio/video input Outer Ground...
-
Page 28: Led Indicators
Picolo.net Getting Started 3. Hardware Specifications LED Indicators Front panel Indicator Type and Colour Marking Video Status Circular green LED Video Device Status Circular bi-color red & green LED Device Power Status Circular green LED Power Rectangular amber LED (LAN Link Activity No marking connector) -
Page 29: Switches
Picolo.net Getting Started 3. Hardware Specifications State Meaning Orange color, fast blink USB Service needed (10 Hz) 50% ON time Red color, slow blink (1 System error Hz) 90% ON time Red color, , fast blink (10 USB device with wrong power requirements detected or with Hz) 50% ON time unknown class detected State... - Page 30 Picolo.net Getting Started 3. Hardware Specifications Device reset switch action Switch Action Meaning Push Reboot the device...
-
Page 31: Electrical Specifications
Picolo.net Getting Started 3.2. Electrical Specifications Power Input Dual Power Source The device can be powered from 1 or 2 external power sources: □ A +12 V DC power source attached to the POWER IN connector and/or ..through the LAN connector and the network cable from a PoE+ (IEEE 802.3at-2009) □... -
Page 32: Sdi Input Port
Picolo.net Getting Started SDI Input Port The SDI input port implements a single-link SDI sink interface for 3G-SDI and HD-SDI devices. Operating Characteristics Property Min. Typ. Max. Unit Peak-to-peak signal amplitude (short cable) Serial data rate 1.485 2.970 Gbps Achievable cable length with Belden 1694 coaxial cable @1.485 Gbps Achievable cable length with Belden 1694 ***TBD***... -
Page 33: Hdmi Output Port
Picolo.net Getting Started HDMI Output Port The HDMI output port implements a single TMDS link complying with the electrical specifications of the High Definition Multimedia Interface 1.3 for HDMI Source. Operating Characteristics Property Min. Typ. Max. Unit TMDS Clock Rate 25.175 Absolute maximum ratings Property... -
Page 34: Alarm Input Port
Picolo.net Getting Started Property Test condition Min. Typ. Max. Unit Full-scale output voltage 10 kΩ load, default gain 1.41 1.48 1.55 Output impedance 1 kHz Ω Absolute Maximum Ratings Property Min. Typ. Max. Unit DC voltage Exceeding the above limits may irreversibly damage the product. Alarm Input Port The alarm input port implements a digital polarity-free non-isolated interface. -
Page 35: Relay Output Port
Picolo.net Getting Started Relay Output Port Functional Description The relay output implements a potential-free and polarity-free solid-state contact. It is capable of switching both AC- and DC-powered resistive loads. The contact remains in the OPEN state during the board initialization procedure. In the CLOSED state, the output port exhibit a voltage drop across its pins. -
Page 36: Rs-232 Com Port
Picolo.net Getting Started RS-232 COM Port The RS-232 communication port implements a full-duplex single-ended serial communication interface complying with the TIA/EIA-232-F standard. Operating Characteristics Property Min. Typ. Max. Unit Data rate kbits/s Driver output voltage (3 kΩ to GND load) Receiver voltage threshold Receiver common-mode voltage range ESD voltage rating... -
Page 37: Rs-422/Rs-485 Com Port
Picolo.net Getting Started RS-422/RS-485 COM Port The RS-422/RS-485 communication port implements a differential serial communication interface. The interface supports two wiring methods selectable by software: RS-422 full-duplex using two pair of pins: Rx and Tx, ● RS-485 half-duplex using only the Tx pair for both Rx and Tx functions. ●... -
Page 38: Power Supply Adapters
Picolo.net Getting Started Power Supply Adapters 1675 Power Supply for Picolo.net HD1 Property Description AC input 100-240 VAC / 50-60 Hz DC output 12 V Rated power (max.) 40 W (LPS power supply - Limited Power Source) Efficiency (typ.) 89.5 % Working temperature range -30 ~ +70°C (derating to 60 % load above 50°C) AC inlet IEC320-C14... -
Page 39: Environmental Specifications
Picolo.net Getting Started 3.3. Environmental Specifications Operating Conditions Storage Conditions Compliance Operating Conditions Requirements Property Min. Max. Unit °C Ambient air temperature range °F °C FPGA die temperature °F °C Processor die temperature °F Ambient humidity range (1) % RH Condition (1): non-condensing Dissipated power Property... -
Page 40: Storage Conditions
Picolo.net Getting Started Storage Conditions The following requirements are applicable during storage conditions when the product is not operating: Requirements Property Min. Max. Unit °C Temperature range +158 °F Humidity range % RH Condition (1): non-condensing Compliance Electromagnetic The product complies with: ●... - Page 41 Picolo.net Getting Started RoHS The product is manufactured according to the European Union RoHS 2011/65/EU Directive. W EEE According the European 2002/96/EC Directive, the product must be disposed of separately from normal household waste. It must be recycled according to the local regulations.
-
Page 42: Functional Specifications
Picolo.net Getting Started 3.4. Functional Specifications Video Source Specification Video Encoders Specification Audio Specifications Streaming Specifications Network Specifications System Integration Specifications Temperature Monitor Time and Date Video Source Specification Video Source Requirements SDI Video Input Characteristics Description Number SDI standards and bit HD-SDI (SMPTE 292M) @ 1.485 and 1.485/1.001 Gbit/s rates 3G-SDI (SMPTE 424M) @ 2.970 and 2.970/1.001 Gbit/s... -
Page 43: Video Encoders Specification
Picolo.net Getting Started The video format is automatically detected. The actual frame rate and the resolution are reported into the FrameRate Resolution properties of the ONVIF object. VideoSource The native resolution is: ● For 720p video formats: 1280 (H)x 720 (V) For 1080i and 1080p video formats: 1920 (H) x 1080 (V) ●... - Page 44 Picolo.net Getting Started □ Main profile Frame rate control properties of the EncodingInterval FrameRateLimit object determine the frame rate of the encoded video stream. VideoEncoderConfiguration is an integer value expressed in frames per second [fps] specifying the upper FrameRateLimit limit of the frame rate of the encoded video stream. By default, is set to the actual frame rate of the video source.
-
Page 45: Audio Specifications
Picolo.net Getting Started Setting to 1 forces all pictures to be coded as I(or IDR)-frames. GovLength MJPEG video encoder specification Resolution The MJPEG encoder supports the following resolutions: Image Name Width Height Aspect Remark Ratio 1080p 1920 1080 16:9 Native for 1080p sources 720p 1280 16:9... - Page 46 Picolo.net Getting Started □ One sample rate converter □ Three encoders □ One set of audio outputs Audio inputs front-end The audio multiplexer selects a digital audio stream from one of the following three audio sources: □ Analog audio source SDI audio source □...
-
Page 47: Streaming Specifications
Picolo.net Getting Started Audio Inputs Analog Audio Input Port Characteristics Description Type Stereo line-level analog input Level control Fixed Sampling rate Fixed: 48 kHz G.711 encoder Characteristics Description Encoding standard PCM G.711 µ-law Sampling rate 8 kHz Bit rate 64 kbps AAC encoder Characteristics Description... - Page 48 Picolo.net Getting Started □ The RTP protocol itself. The Real-time Transport Control Protocol - RTCP. □ The RTP protocol is a simple protocol which defines a standardized packet format for delivering audio and video over IP networks. The RTCP protocol provides statistics and control information over the RTP stream. RTP is used extensively in communication and entertainment systems that involve streaming media.
-
Page 49: Network Specifications
Picolo.net Getting Started RTP over UDP MultiCast This modality is almost identical to the "RTP over UDP Unicast" case. The only difference is that the data is sent to multiple receivers instead of a single one using UDP multicasting. UDP multicasting uses the "IP multicast" technique described in RFC 1112. In this technique, the sender sends the data to a special multicast address. - Page 50 Picolo.net Getting Started Characteristics Description DHCP, DNS, HTTP, HTTPS, NTP,RTCP, RTP, RTSP, TLS Application layer protocols Transport layer protocols TCP, UDP Internet layer protocols IPv4, ICMP, IGMPv2, IPV6, ICMPv6, IGMPv3 IP Address Allocation Methods An IP address must be allocated to the LAN interface using one of the following methods: DHCP method: Automatic IP address allocation using the Dynamic Host Configuration □...
-
Page 51: System Integration Specifications
Picolo.net Getting Started Disable the automatic IP Address allocation by unchecking the "From DHCP" check-box in the IP Address panel Fill-in the IP and Subnet Mask fields with the appropriate value Apply the changes by clicking on the Apply button Reboot the device HTTPS Protocol Picolo.net HD1 products implement the following TLS protocols:... -
Page 52: Temperature Monitor
Picolo.net Getting Started Temperature Monitor Picolo.net HD1 embeds a temperature sensor located inside the enclosure in the vicinity of the processor. The temperature monitor circuit repeatedly measures the temperature and issues an alert when it exceeds the upper limit. The measured temperature value is expressed in °C. It is available from: The device Web Pages: inside the Device Information panel of the Home Page. - Page 53 Picolo.net Getting Started To configure GPS only: - Select on Edit Date & Time page. NTP + GPS - Uncheck option for From DHCP NTP servers - Delete the list of NTP servers in the Network Time Protocol panel of the Device Management page.
-
Page 54: Software Specifications
Picolo.net Getting Started 4. Software Specifications 4. Software Specifications 4.1. Software Components ONVIF Device 1669-DR Picolo.net HD1 (DIN rail) and 1669-DW Picolo.net HD1 (Desktop/Wall) are Network Video Transmitter (NVT) devices as defined by ONVIF. Components Overview... - Page 55 Picolo.net Getting Started 4. Software Specifications ONVIF Media Profiles The ONVIF Media Profile can be viewed as the object interconnecting the different types of configuration objects. Each one may contain configuration for: ● Up to one Video Source ● Up to one Video Stream Up to one Audio Stream ●...
- Page 56 Picolo.net Getting Started 4. Software Specifications ONVIF Recording Job This configures the recording of one media profile into ISO IEC 14496 (mp4) files on a USB Mass Storage device locally attached to the Picolo.net HD1. Video Configuration Objects 1669-DR Picolo.net HD1 (DIN rail) and 1669-DW Picolo.net HD1 (Desktop/Wall) have: object ●...
- Page 57 Picolo.net Getting Started 4. Software Specifications ● object PicoloAudioOutputConfiguration object is associated with the PicoloAudioOutput PicoloAudioOutputConfiguration object. The association cannot be modified. PTZ Configuration Object 1669-DR Picolo.net HD1 (DIN rail) and 1669-DW Picolo.net HD1 (Desktop/Wall) have: ● object PTZNode ● object PTZConfiguration allows to address any RS-485 target device attached on the COM port.
-
Page 58: Client Interfaces
Picolo.net Getting Started 4.2. Client Interfaces Client Interfaces Picolo.net products provide the following client interfaces: Web Services The "Web Services" client interface is a programmatic interface based on the W3C-standardized Web Services technology intended to be used by programmers of Video Management Software. It provides the following categories of services: ●... -
Page 59: Aes Storage Control Interface
Picolo.net Getting Started 4.3. AES Storage Control Interface By default, Picolo.net HD1 boots with AES storage disabled. Any new media clip is then stored as plain MP4 file and AES-protected present on the USB media will read as an ciphered data if one tries to get them.
