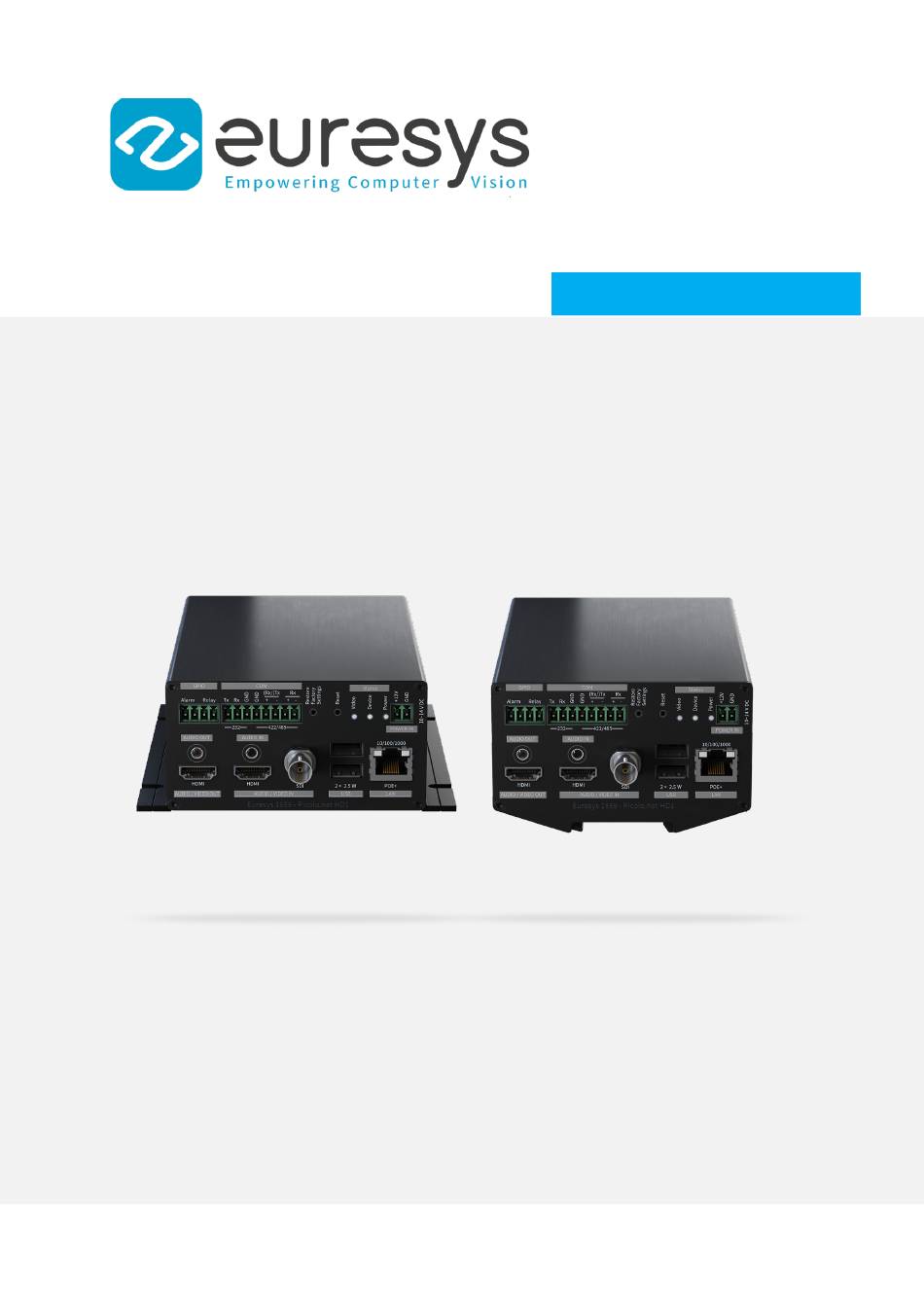

- Page 1 INSTALLATION GUIDE Picolo.net Picolo.net HD1 © EURESYS s.a.2020 - Document D310EN-Installation Guide-Picolo.net_HD1-2.6.9.3032 built on 2020-03-25...
- Page 2 1. Disclaimer EURESYS s.a. shall retain all property rights, title and interest of the documentation of the hardware and the software, and of the trademarks of EURESYS s.a. All the names of companies and products mentioned in the documentation may be the trademarks of their respective owners.
- Page 3 RoHS Compliance This product is in conformity with the European Union RoHS 2011/65/EU Directive, that stands for "the restriction of the use of certain hazardous substances in electrical and electronic equipment". W EEE According the European directive 2012/19/EU, the product must be disposed of separately from normal household waste.
- Page 4 4. Connectors Location and Markings Picolo.net HD1 front panel Picolo.net HD1 rear panel 5. Connections Audio/ Video Audio/ Video Inputs Select one of the following options: Connect a HD-SDI or a 3G-SDI audio/video source to the SDI AUDIO/VIDEO IN female BNC connector. ●...
- Page 5 3.5 mm stereo jack Analog Audio Output Using a 3.5 mm jack, connect an analog stereo (or mono) line-level audio sink to the AUDIO OUT connector. Network Connect the device to the local area network by attaching a RJ-45 network cable into the LAN connector. USB External Storage USB for external storage With a USB type A (full size) connector, connects a USB storage device to any of the USB connectors.
- Page 6 Check if the Video Present LED indicators of all inputs attached to a valid video source are turned ON. First Network Session Install the Euresys ONVIF Device Scanner application software utility on a Windows or Linux computer attached to the same LAN.
- Page 7 The computer TCP/IP stack is configured for dynamic IP allocation. □ Run the Euresys ONVIF Device Scanner utility. At the completion of the scanning process, all discovered ONVIF devices appear in the discovered ONVIF devices list. Select a device in the list by clicking its [IP] field. The right pane displays the properties of the selected device.
- Page 8 The VLC plug-in must be installed on your computer. The VLC plug-in is available for download from http://www.videolan.org/vlc/.
