- Page 1 STICK-ST [Eng.] LIGHT PROGRESS UV-STICK E2/75H-ST-NX-NT Germicidal UV-C Device for Disinfection by Direct Irradiation Portable on wheels MODELS: UV-STICK E2/75H-ST-NX-NT UV-STICK E2/75H-P-ST-NX -NT Rev. 2 Oct 2020 Page 1 of 15...
-
Page 2: Security Warning
STICK-ST [Eng.] LIGHT PROGRESS SECURITY WARNING Our Company has ensured that every care is taken in the design and production of its machinery. In order to guarantee as far as possible, that it is safe when used correctly. However, the laws on accident prevention require all users of the machinery to ensure that, whoever is responsible for installation, maintenance, use and sale of these products is shown the instruction provided by our company and is made aware of the precautions to be taken. -
Page 3: Conventional Symbols
STICK-ST [Eng.] LIGHT PROGRESS CONVENTIONAL SYMBOLS SUBSTITUTED ITEMS MUST BE PERFORMED RESPECTING THE LOCAL LAWS. RECYCLE THE STUFFS THAT COMPOSES THIS PRODUCT. OBLIGATION TO CONSULT THESE INSTRUCTIONS BEFORE USE THIS PRODUCT DANGER OF ELECTRICAL SHOCK; REMOVE TENSION TO THE SYSTEM BEFORE PERFORMING ANY OPERATION. -
Page 4: Device Description

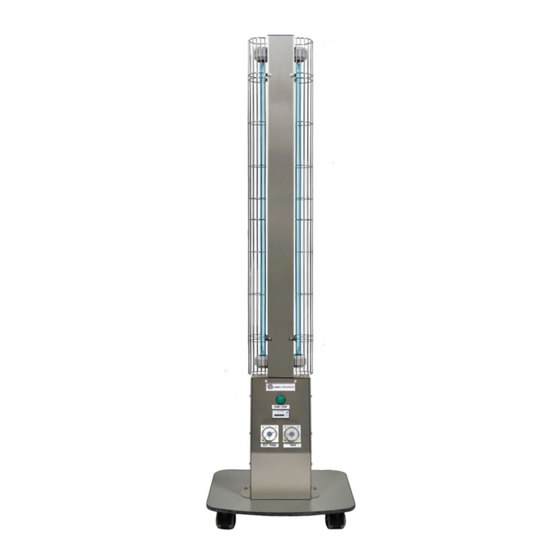

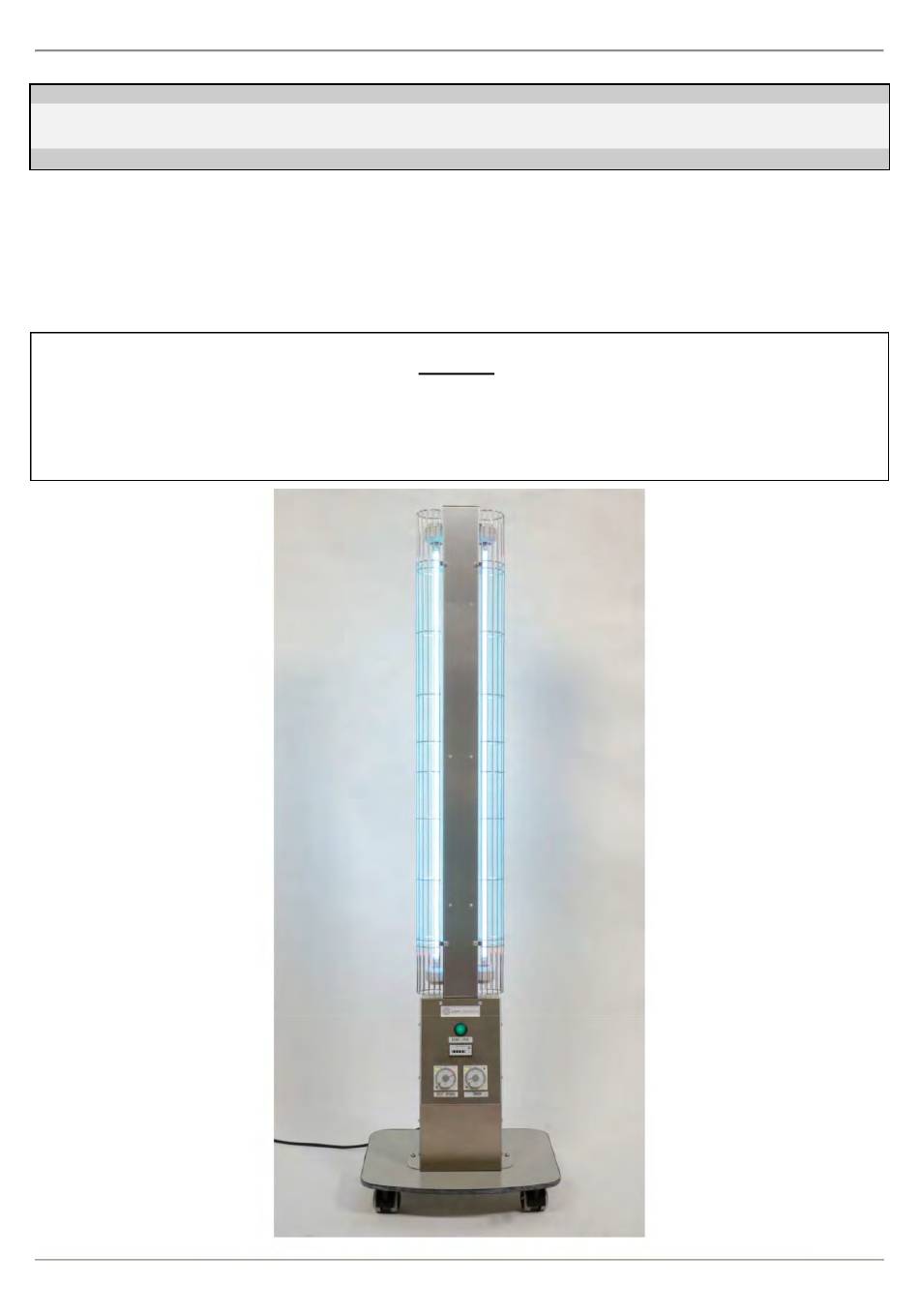

STICK-ST [Eng.] LIGHT PROGRESS DEVICE DESCRIPTION The UV STICK E2/75H-ST-NX-NT is a dual lamp germicidal device, placed on a stand with four wheels for easy mobility. It works on direct radiation at 360 degrees and sterilizes irradiated air and surfaces. The UV-C lamps, with an emission peak at 235.7 nm. -
Page 5: Device Codes
STICK-ST [Eng.] LIGHT PROGRESS BENEFITS AND ADVANTAGES a) DEEP AND CONTINUOUS DISINFECTION This device can be switched on continuously without people being present (i.e. during the night for 2-3 hours). The dis-infection of air, machinery, and everything that is contained inside the room allows beginning the work day in ideal hygienic conditions. - Page 6 STICK-ST [Eng.] LIGHT PROGRESS ASSEMBLY Handle with care. Verify the integrity of the packaging, and please be careful not to damage the contents when using sharp blades or cutters to open the box. Remove the unit from the box. Inspect it immediately to ensure that no damage has occurred during transport. Before installation and use of the device please READ CAREFULLY THE SECURITY WARNINGS and all instructions that follow.
-
Page 7: Installation
STICK-ST [Eng.] LIGHT PROGRESS INSTALLATION Take the device to the room to be disinfected, and place it in a position. In case of more than one device, you should place them so that UV irradiation is uniformly distributed avoiding creating shaded areas. -
Page 8: Electrical Connections
Light Progress. In case of necessity, please, send the device back to our facility for any kind of repairs. If this is not possible, you can order the entire power supply conduit for replacement (see Table 1 for code). -
Page 9: Technical Features
STICK-ST [Eng.] LIGHT PROGRESS TECHNICAL FEATURES TABLE 1 UV-STICK E2/75H-ST-NX-NT AVERAGE LAMP LIFETIME (hour)* ≤ 18,000 POWER (W) 2x75 DIMENSIONS L x W x H (mm) 1420 x 404 x 336 WEIGHT (Kg) 50 to 100 TREATED AIR VOLUME (m... -
Page 10: Warranty
W: www.laftech.com.au MANUFACTURER RESPONSABILITY AND COMMITMENTS Light Progress do not take any responsibility for any damage to persons or property, due to failure to follow these instructions. We recommend you carefully read all the given instructions before usage. The manufacturer agrees with the buyer to provide, upon request, schemes of circuits, component parts lists, instructions for calibration of lamps and other information, which are useful to repair those parts that the manufacturer considers repairable. -
Page 11: Declaration Of Compliance
STICK-ST [Eng.] LIGHT PROGRESS DECLARATION OF COMPLIANCE We, LIGHT PROGRESS s.r.l., hereby declare under our own responsibility that the following units of own production: UV-STICK E2/75H-ST-NX-NT series are in accordance with EEC directive 2014/30/EU (Electromagnetic Compatibility) are in accordance with EEC Machinery Directive dispositions 2006/42/EU are in accordance with EEC Low Voltage Directive 2014/35/EU are in accordance with EEC (RoHS) 2011/65/EU (D.Lgs 4 Marzo 2014, n.27) - Page 12 STICK-ST [Eng.] LIGHT PROGRESS Circuit scheme: UV-STICK E2/75H-ST-NX-NT Rev. 2 Oct 2020 Page 12 of 15...
- Page 13 STICK-ST [Eng.] LIGHT PROGRESS Notes: ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ Rev. 2 Oct 2020 Page 13 of 15...
- Page 14 STICK-ST [Eng.] LIGHT PROGRESS ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ Rev. 2 Oct 2020 Page 14 of 15...
- Page 15 STICK-ST [Eng.] LIGHT PROGRESS Rev. 2 Oct 2020 Page 15 of 15...
