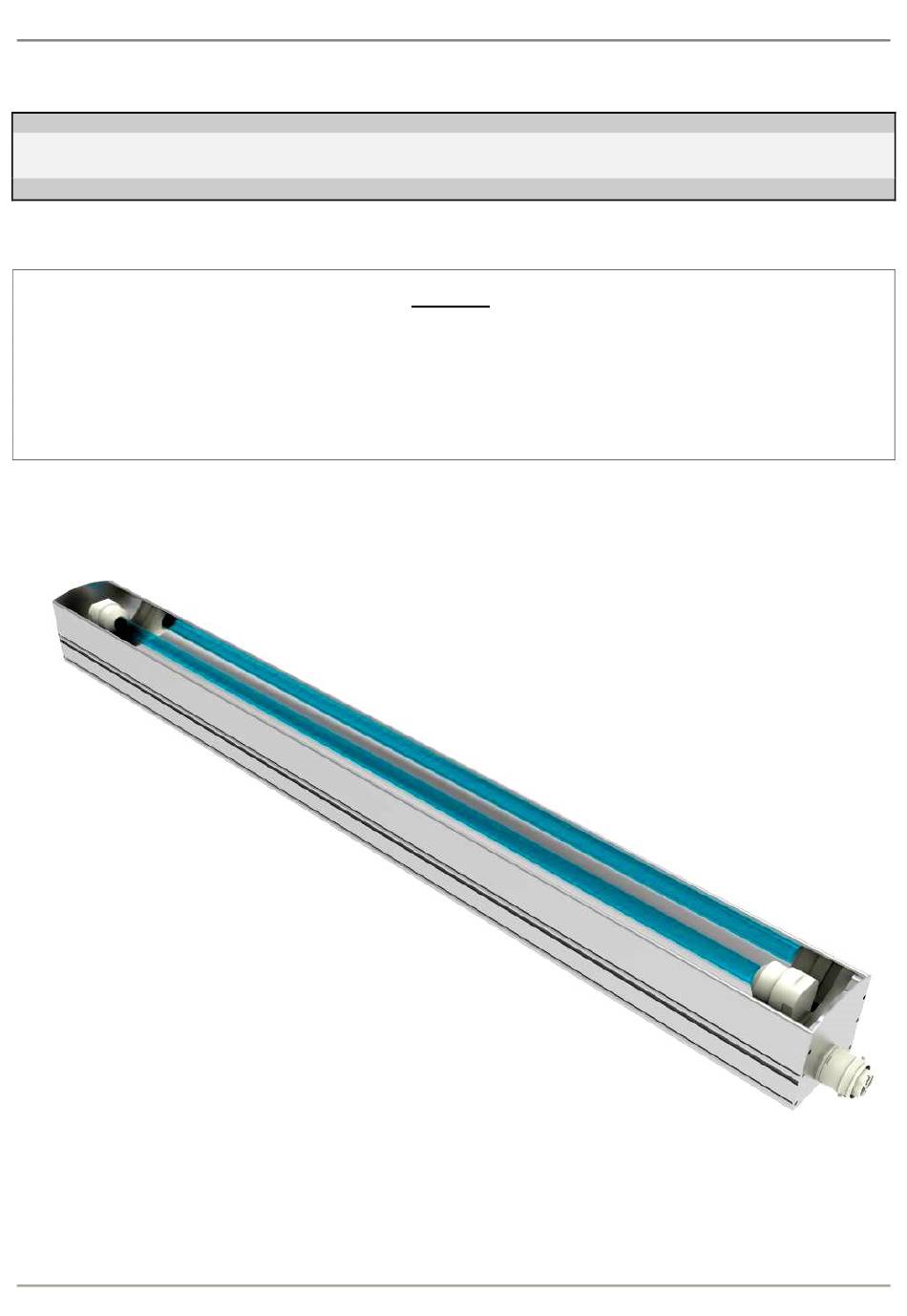

- Page 1 LIGHT PROGRESS STICK-AL [eng] INSTRUCTIONS UV-STICK...AL Germicidal UV-C Device with serial connection for AHU Disinfection MODELS: UV-STICK-E40H-AL UV-STICK-E60H-AL UV-STICK-E75H-AL UV-STICK-E100H-AL UV-STICK-E150-AL UV-STICK-E150H-AL Nov-2019 Pag. 1/16...
-
Page 2: Security Warnings
LIGHT PROGRESS STICK-AL [eng] SECURITY WARNINGS The Company has ensured that every care is taken in the design and production of its machinery. In order to guar- antee, as far as possible, that it is safe when used correctly. However, the laws on accident prevention require all users of the machinery to ensure that whoever is responsible for installation, maintenance, use and sale of these products is shown the instruction provided by our company and is made aware of the precautions to be taken. -
Page 3: Storage Of This Manual
This instruction manual must be preserved and be ever at disposal to consultation; it must follow the device in case of passage of property, and accompany the device until its demolition. It’s possible to contact Light Progress’ technical office to ask for updated instruction manuals and information. -
Page 4: Device Description

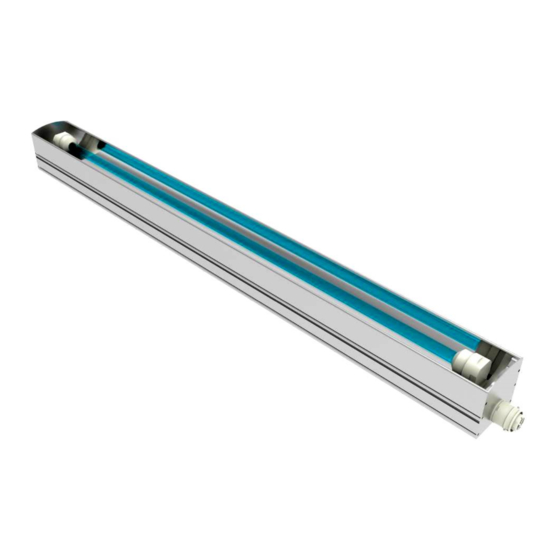

LIGHT PROGRESS STICK-AL [eng] DEVICE DESCRIPTION UV-STICK...AL device includes a series of UV-C reglette of reduced size and different lengths. The device is a reglette built entirely in extruded anodized aluminum, IP55 protection and fitted with a reflecting screen in mirror bright aluminum, to increase the power of radiation, through the reflection of UV-C proportion that would otherwise be wasted in the opposite direction to the useful ones. -
Page 5: Device Codes
LIGHT PROGRESS STICK-AL [eng] BENEFITS AND ADVANTAGES a) DEEP AND ONGOING DISINFECTION. This unit can stay lit continuously in the absence of people (for example during the night, at least for 2-3 hours). The disinfection of air, equipments, and of all that is contained within a room, allows to start the working day in ideal hygienic conditions. -
Page 6: Installation
LIGHT PROGRESS STICK-AL [eng] RECEPTION Handle with care as fragile material. Verify the integrity of the packaging, and please be careful not to damage the contents when using sharp blades or cutters to open the box. Remove the unit from the box, then inspect it immediately to ensure that no damage has occurred during transport. -
Page 7: Electrical Connections
LIGHT PROGRESS STICK-AL [eng] WARNING!!! To avoid exposition to UV-C rays please provide a total shielding of the modules, or automatic turning OFF disposals at the entry doors in the environment treated. There must be no direct irradiation of the personnel. - Page 8 LIGHT PROGRESS STICK-AL [eng] UV-STICK-AL POWER SUPPLY CABLE - DEVICE INSTRUCTIONS The UV-STICK must be connected to the power supply line through a specific cable supplied (cod. In-Cable-3.0-AL). 1) For the correct coupling, insert the connector on the cable (cod. In-Cable-3.0-AL) into the connector on the device, always checking that the pins are positioned in a way that pin (1) engages perfectly in pin (2).
-
Page 9: Maintenance
Light Progress. In case of necessity, please, send the device back to our facility for any kind of repairs. If this is not possible you can order the electronic ballast for replacement (for code see Table 1). -
Page 10: Technical Features
LIGHT PROGRESS STICK-AL [eng] TECHNICAL FEATURES TABLE N°1 UV-STICK E40H-AL E60H-AL E75H-AL E100H-AL E150-AL E150H-AL LAMP AVERAGE ≤ 18.000 ≤ 18.000 ≤ 18.000 ≤ 18.000 ≤ 18.000 ≤ 18.000 LIFETIME (hour)* POWER max (W) 40 W 60 W 90 W... -
Page 11: Warranty
10 working days from release date. MANUFACTURER RESPONSABILITY AND COMMITMENTS Light Progress do not assume any responsibility for any damage to persons or property, due to failure to follow these instructions. We recommend you to carefully read all the given instructions. -
Page 12: Declaration Of Compliance
LIGHT PROGRESS STICK-AL [eng] DECLARATION OF COMPLIANCE We, LIGHT PROGRESS S.r.l., hereby declare under our own responsibility that the following units of own production: UV-STICK-E nn-AL are in accordance with EEC directive 2014/30/EU (Electromagnetic Compatibility) are in accordance with EEC Machinery Directive dispositions 2006/42/EU are in accordance with EEC Low Voltage Directive 2014/35/EU... - Page 13 LIGHT PROGRESS STICK-AL [eng] Notes: ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ Nov-2019 Pag. 13/16...
- Page 14 LIGHT PROGRESS STICK-AL [eng] ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ Nov-2019 Pag. 14/16...
- Page 15 LIGHT PROGRESS STICK-AL [eng] ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ Nov-2019 Pag. 15/16...
- Page 16 LIGHT PROGRESS STICK-AL [eng] Loc. San Lorenzo, 40 - 52031 ANGHIARI (AR) - ITALIA TEL. 0575 / 74.92.55 - FAX 0575 / 78.99.29 PRODUZIONE: • ANGHIARI - Loc. San Lorenzo, 40 • CASTIGLION F.NO - Loc. S. Antonino, 40 : www.lightprogress.it Http info@lightprogress.it...
