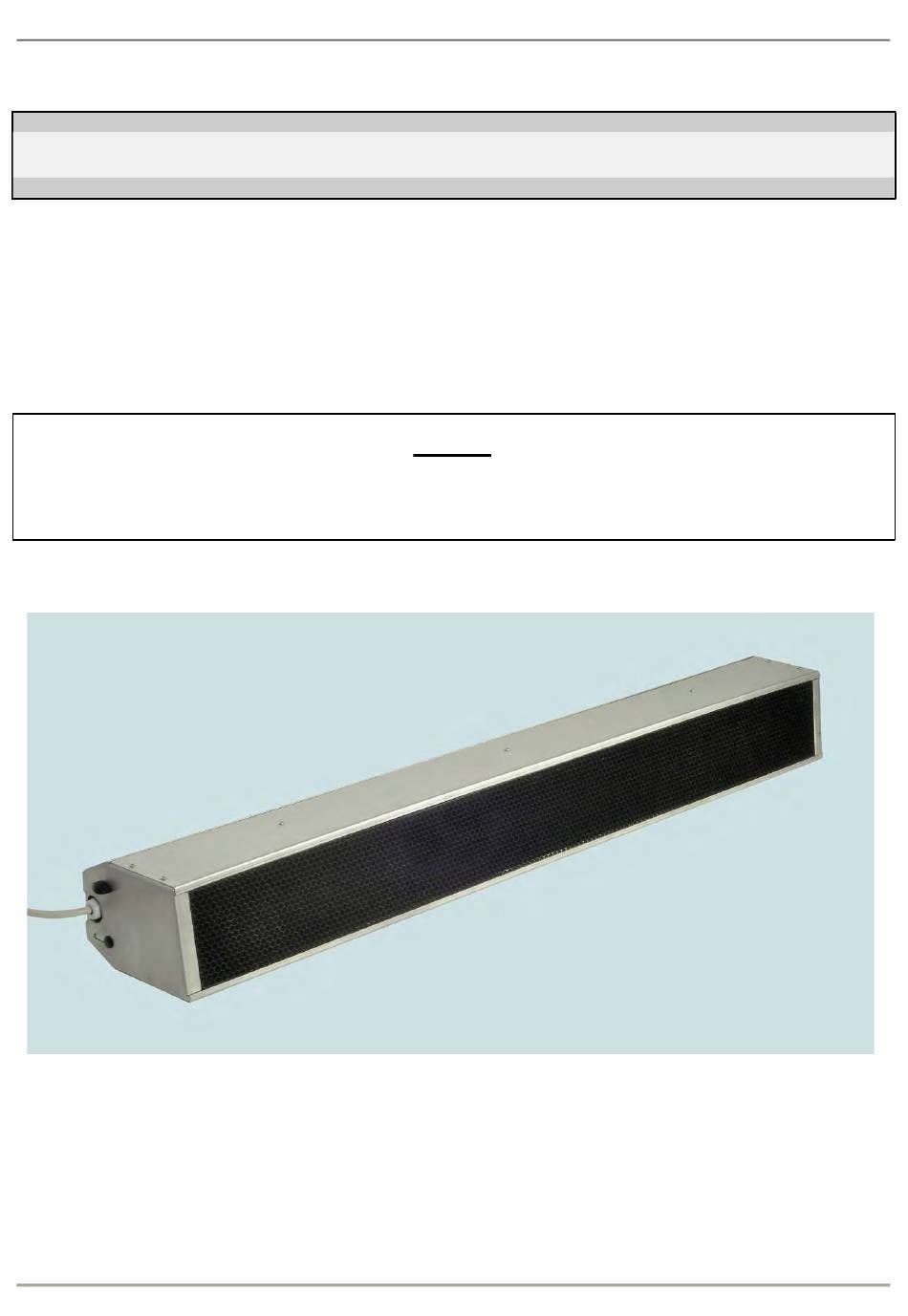

- Page 1 LIGHT PROGRESS FLOW-C-NX [Eng.] UV-FLOW … C-NX UV-C Device with Controlled vertical/horizontal Flow for Barriers against Germs MODELS: UV-FLOW-E40H-C-NX UV-FLOW-E75H-C-NX Rev. 2 Oct -2020 Pag. 1/16...
- Page 2 LIGHT PROGRESS FLOW-C-NX [Eng.] Rev. 2 Oct -2020 Pag. 2/16...
-
Page 3: Security Warning
According to the circumstances, the appropriate recommendations made in these instructions must be made available, together with any other relative information, to any company or person involved in the installation of LIGHT PROGRESS products. -
Page 4: Conventional Symbols
LIGHT PROGRESS FLOW-C-NX [Eng.] CONVENTIONAL SYMBOLS DISPOSE THIS PRODUCT ON THE UNDIFFERENTIATED WASTE DISPOSING OF THE SUBSTITUTED ITEMS MUST BE PERFORMED RESPECTING THE LOCAL LAWS. RECYCLE THE STUFFS THAT COMPOSES THIS PRODUCT. OBLIGATION TO CONSULT THESE INSTRUCTIONS BEFORE USE THIS PRODUCT DANGER OF ELECTRICAL SHOCK;... -

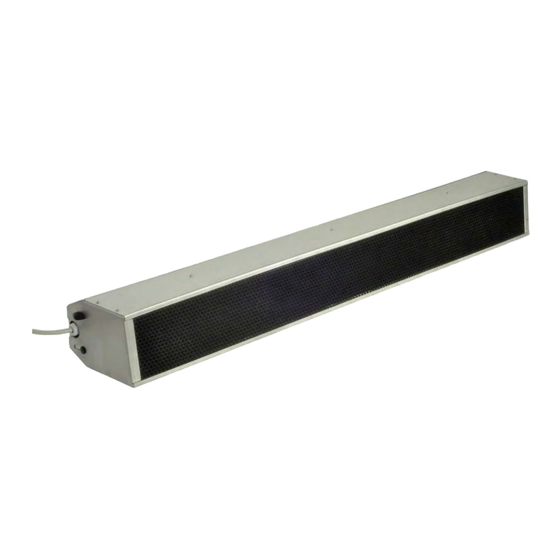

Page 5: Device Description
LIGHT PROGRESS FLOW-C-NX [Eng.] DEVICE DESCRIPTION The UV-FLOW ..C-NX is a controlled unidirectional flow device, with a powerful UV lamp inside and a narrow emission peak at wavelength of 235.7 nm. (nanometers), which has a strong germicidal effect against all micro-organisms (molds, bacteria and viruses). -
Page 6: Device Codes
LIGHT PROGRESS FLOW-C-NX [Eng.] DEVICE CODES RECEPTION Handle with care as fragile material. Verify the integrity of the packaging, and please be careful not to damage the contents when using sharp blades or cutters to open the box. Remove the unit from the box, then inspect it immediately to ensure that no damage has occurred during transport. -
Page 7: Installation
LIGHT PROGRESS FLOW-C-NX [Eng.] INSTALLATION Decide the type of orientation to be given to the air flow: horizontal flow or vertical downward flow HORIZONTAL FLOW: The installation must be made by placing the brackets at 2.20 meters above the floor. In this way the flow will be slightly upwards, which makes possible the continuous disinfection of the air circulating within the room, because of the natural convective motions. - Page 8 LIGHT PROGRESS FLOW-C-NX [Eng.] VERTICAL FLOW: The device must be placed above the doors of the controlled contamination room (clean room), with air flow directed downwards. Use the two supplied stainless-steel brackets, anchoring them to the wall with expansion bolts ( 8 to 10 mm.) or with self- tapping screws.
-
Page 9: Electrical Connections
LIGHT PROGRESS FLOW-C-NX [Eng.] WARNING!!! Follow carefully the instructions for both the HORIZONTAL and VERTICAL position because, although it is a device for controlled radiation, it must be turned on by preventing reflected radiation to affect people. For example, reflections on ceiling or walls surfaces may cause eye irritation and skin erythema. - Page 10 LIGHT PROGRESS FLOW-C-NX [Eng.] ► UV-FLOW-EL Model -EL Gives you the possibility of remote-control functionality of the UV lamp. Connected to the device there is a cable with 6 poles: a couple of poles carrying output signal to turn on LED indicating the UV lamp (when on);...
-
Page 11: Maintenance
LIGHT PROGRESS; if necessary, you should return the product to the company for repair. -
Page 12: Technical Features
LIGHT PROGRESS FLOW-C-NX [Eng.] TECHNICAL FEATURES TABLE n.1 UV-FLOW E40H-C-NX E75H-C-NX LAMP LIFETIME (hour)* ≤ 18,000 ≤ 18,000 POWER (W) DIMENSIONS LxSxH (mm) 530 x 109 x 151 986 x 109 x 151 WEIGHT (Kg) TREATED AIR (m ) (horizontal flow) -
Page 13: Warranty
Once you receive the module, it has to be filled up in every part and sent via email to info@lightprogress.it or via fax to +39.0575 789929 to obtain the RMA number that will authorize the shipments of the goods to Light Progress ware- house. - Page 14 FLOW-C-NX [Eng.] MANUFACTURER RESPONSIBILITY AND COMMITMENTS Light Progress do not assume any responsibility for any damage to persons or property, due to failure to follow these instructions. We recommend you to carefully read all the given instructions. The manufacturer agrees with the buyer to provide, upon request, schemes of circuits, component parts lists, instructions for calibration of lamps and other information, which are useful to repair those parts that the manufacturer considers repairable.
-
Page 15: Declaration Of Compliance
LIGHT PROGRESS FLOW-C-NX [Eng.] DECLARATION OF COMPLIANCE We, LIGHT PROGRESS S.r.l., hereby declare under our own responsibility that the following units of own production: UV-FLOW….C-NX series are in accordance with EEC directive 2014/30/EU (Electromagnetic Compatibility) are in accordance with EEC Machinery Directive dispositions 2006/42/EU are in accordance with EEC Low Voltage Directive 2014/35/EU are in accordance with EEC (RoHS) 2011/65/EU (D.Lgs 4 Marzo 2014, n.27) - Page 16 LIGHT PROGRESS FLOW-C-NX [Eng.] Notes: Rev. 2 Oct -2020 Pag. 16/16...
- Page 17 LIGHT PROGRESS FLOW-C-NX [Eng.] Rev. 2 Oct -2020 Pag. 17/16...
- Page 18 LIGHT PROGRESS FLOW-C-NX [Eng.] Rev. 2 Oct -2020 Pag. 18/16...
