- Page 1 LIGHT PROGRESS DIRECT-H-NX [Eng.] INSTRUCTION UV-DIRECT…NX Germicidal UV-C Device for Disinfection by Direct Irradiation MODELS: UV-DIRECT-E40H-H-NX UV-DIRECT-E75H-H-NX Rev. 3 Eng. Oct 2020 Pag. 1/16...
-
Page 2: Security Warning
LIGHT PROGRESS DIRECT-H-NX [Eng.] SECURITY WARNING T h e Company has ensured that every care is taken in the design and production of its machinery. In order to guarantee as far as possible, that it is safe when used correctly. However, the laws on accident prevention require all users of the machinery to ensure that whoever is responsible for installation, maintenance, use and sale of these products is shown the instruction provided by our company and is made aware of the precautions to be taken. -
Page 3: Conventional Symbols
LIGHT PROGRESS DIRECT-H-NX [Eng.] CONVENTIONAL SYMBOLS DOESN’T DISPOSE THIS PRODUCT ON THE UNDIFFERENTIATED WASTE DISPOSING OF THE SUBSTITUTED ITEMS MUST BE PERFORMED RESPECTING THE LOCAL LAWS. RECYCLE THE STUFFS THAT COMPOSES THIS PRODUCT. OBLIGATION TO CONSULT THESE INSTRUCTIONS BEFORE USE THIS PRODUCT DANGER OF ELECTRICAL SHOCK;... -
Page 4: Device Description

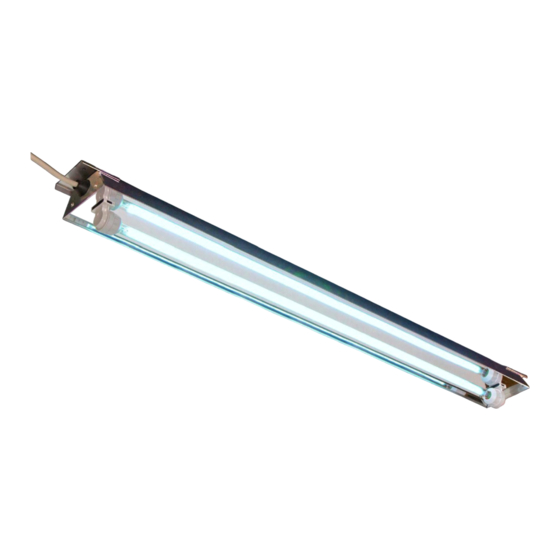

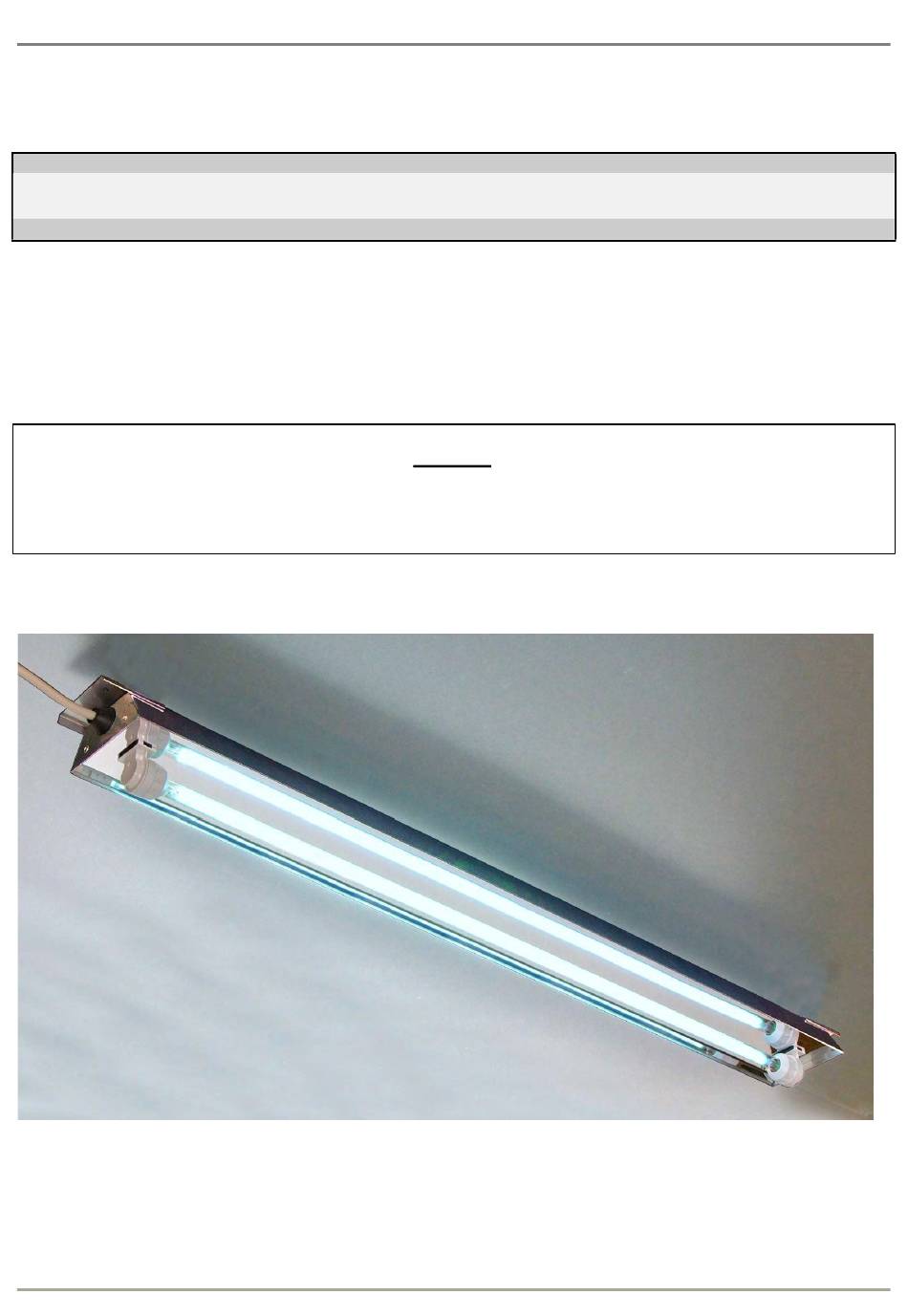

LIGHT PROGRESS DIRECT-H-NX [Eng.] DEVICE DESCRIPTION UV-DIRECT ..H-NX series includes a UV-C lamp lodged inside a shaped case of small size, entirely made of stain- less steel and with polished aluminum screen, to increase performance also reflecting the proportion of UV-C which should be dispersed in the direction opposite to that useful. -
Page 5: Device Codes
LIGHT PROGRESS DIRECT-H-NX [Eng.] DEVICE CODES RECEPTION Handle with care as fragile material. Verify the integrity of the packaging, and please be careful not to damage the con- tents when using sharp blades or cutters to open the box. Remove the unit from the box, then inspect it immediately to ensure that no damage has occurred during transport. -
Page 6: Installation
LIGHT PROGRESS DIRECT-H-NX [Eng.] INSTALLATION In the case of application of UV-DIRECT for direct irradiation of the environment, the device should be positioned on the ceiling almost in central position. The installation of several units should be carried out so as to distribute them uni f ormly in the environment (to avoid the hidden areas, such as the corners;... - Page 7 LIGHT PROGRESS DIRECT-H-NX [Eng.] To fit the model of UV-DIRECT using the two stainless steel brackets supplied, anchoring them to the ceiling by screw anchors ( 8 to 10 mm.) or by self-tapping screws (not supplied). After inserting the anchors onto the ceiling, you should tighten (by supplied stainless steel screws M4x10) the device to the two brackets, then you should screw the brackets to the ceiling.
-
Page 8: Electrical Connections
LIGHT PROGRESS DIRECT-H-NX [Eng.] WARNING!!! To avoid exposition to UV-C rays please provide a total shielding of the modules, or automatic turning OFF disposals at the entry doors in the environment treated. There must be no direct irradiation of the personnel. - Page 9 LIGHT PROGRESS DIRECT-H-NX [Eng.] ► UV-DIRECT-EL In model -EL you get the possibility to remote control the functionality of UV lamp. Connected to the device there is a cable with 6 poles: a couple of poles carrying output signal to turn on LED indicating the UV lamp (when it’s lighting);...
-
Page 10: Maintenance
LIGHT PROGRESS DIRECT-H-NX [Eng.] MAINTENANCE WEAR PROTECTIVE PROTECTIVE UV LAMP GLOVES GLASSES Lamp maintenance is very important because the UV-C light emitted by the source is not visible to the eye, so, although you see the lamp ON, its germicidal effect may not be sufficient to perform disinfection treatment. -
Page 11: Technical Features
LIGHT PROGRESS DIRECT-H-NX [Eng.] TECHNICAL FEATURES TABLE n°1 UV-DIRECT E40H-H-NX E75H-H-NX LAMP LIFETIME (hour) ≤18,000 ≤18,000 POWER (W) DIMENSIONS LxSxH (mm) 530 x 88 x 109 986 x 88 x 109 WATERPROOF AND DUST-PROOF IP 55 IP 55 WEIGHT (Kg) -
Page 12: Warranty
Once you receive the module, it has to be filled up in every part and sent via email to info@lightprogress.it or via fax to +39.0575 789929 to obtain the RMA number that will authorize the shipments of the goods to Light Progress ware-house. - Page 13 DIRECT-H-NX [Eng.] MANUFACTURER RESPONSABILITY AND COMMITMENTS Light Progress do not assume any responsibility for any damage to persons or property, due to failure to follow these instructions. We recommend you to carefully read all the given instructions. The manufacturer agrees with the buyer to provide, upon request, schemes of circuits, component parts lists, instructions for calibration of lamps and other information, which are useful to repair those parts that the manufacturer considers repairable.
-
Page 14: Declaration Of Compliance
LIGHT PROGRESS DIRECT-H-NX [Eng.] DECLARATION OF COMPLIANCE We, LIGHT PROGRESS S.r.l., hereby declare under our own responsibility that the following units of own production: UV-DIRECT…-H-NX series are in accordance with EEC directive 2014/30/EU (Electromagnetic Compatibility) are in accordance with EEC Machinery Directive dispositions 2006/42/EU are in accordance with EEC Low Voltage Directive 2014/35/EU are in accordance with EEC (RoHS) 2011/65/EU (D.Lgs 4 Marzo 2014, n.27) - Page 15 LIGHT PROGRESS DIRECT-H-NX [Eng.] Notes: Rev. 3 Eng. Oct 2020 Pag. 15/16...
- Page 16 LIGHT PROGRESS DIRECT-H-NX [Eng.] Rev. 3 Eng. Oct 2020 Pag. 16/16...
- Page 17 LIGHT PROGRESS DIRECT-H-NX [Eng.] Rev. 3 Eng. Oct 2020 Pag. 17/16...
